315-068 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 68POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Card Type	Pitch	Pitch	Number of Positions	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Read Out	Color	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions/Bay/Row	Contact Finish	Gender	Contact Material	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 315-068-500-208	2	Polyester Thermoplastic	Semi Bellows	-40 C	105 ░C	2	Non Specified - Dual Edge	3.96 mm	0.156 in	68 positions	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Green	0.25 Ám	10 Áin	Solder Eyelet(s)	34	Gold	Female	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 315-068-555-201	2	Polyester Thermoplastic	Semi Bellows	-40 C	105 ░C	2	Non Specified - Dual Edge	3.96 mm	0.156 in	68 positions	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Green	0.25 Ám	10 Áin	Solder	34	Gold	Female	Copper Alloy		Card Extender
EDAC Inc. 315-068-556-207	2	Polyester Thermoplastic	Semi Bellows	-40 C	105 ░C	2	Non Specified - Dual Edge	3.96 mm	0.156 in	68 positions	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Green	0.25 Ám	10 Áin	Solder	34	Gold	Female	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	Card Extender
EDAC Inc. 315-068-556-268	2	Polyester Thermoplastic	Semi Bellows	-40 C	105 ░C	2	Non Specified - Dual Edge	3.96 mm	0.156 in	68 positions	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Green	0.25 Ám	10 Áin	Solder	34	Gold	Female	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Card Extender Card Guides
EDAC Inc. 315-068-520-268	2	Polyester Thermoplastic	Semi Bellows	-40 C	105 ░C	2	Non Specified - Dual Edge	3.96 mm	0.156 in	68 positions	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Green	0.25 Ám	10 Áin	Solder	34	Gold	Female	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 315-068-520-203	2	Polyester Thermoplastic	Semi Bellows	-40 C	105 ░C	2	Non Specified - Dual Edge	3.96 mm	0.156 in	68 positions	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Green	0.25 Ám	10 Áin	Solder	34	Gold	Female	Copper Alloy	Floating Bobbin Flush Mount		0.116 "	2.95 mm
EDAC Inc. 315-068-500-278	2	Polyester Thermoplastic	Semi Bellows	-40 C	105 ░C	2	Non Specified - Dual Edge	3.96 mm	0.156 in	68 positions	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Green	0.25 Ám	10 Áin	Solder Eyelet(s)	34	Gold	Female	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening

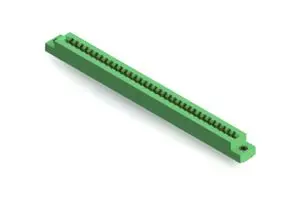

EDAC Inc. 315-068-521-207	2	Polyester Thermoplastic	Semi Bellows	-40 C	105 ░C	2	Non Specified - Dual Edge	3.96 mm	0.156 in	68 positions	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Green	0.25 Ám	10 Áin	Solder	34	Gold	Female	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 315-068-520-278	2	Polyester Thermoplastic	Semi Bellows	-40 C	105 ░C	2	Non Specified - Dual Edge	3.96 mm	0.156 in	68 positions	Panel Mount Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Green	0.25 Ám	10 Áin	Solder	34	Gold	Female	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 315-068-500-207	2	Polyester Thermoplastic	Semi Bellows	-40 C	105 ░C	2	Non Specified - Dual Edge	3.96 mm	0.156 in	68 positions	Panel Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Green	0.25 Ám	10 Áin	Solder Eyelet(s)	34	Gold	Female	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening
