8P1P007 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CIRCULAR CONNECTOR, QUIK-LOQ 8P1P SERIES, CABLE MOUNT PLUG, 7 CONTACTS, SOLDER PIN, PUSH-PULL
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Mounting Type | Number of Positions | Fastening Type | Connector Type | Insert Material | Features | Primary Material | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Voltage Rating | Contact Finish - Mating | Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shielding | Orientation | Shell Material | Ingress Protection | Contact Material | Termination | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 120 °C | -20 ░C | 6 A | Free Hanging (In-Line) | 7 | Push-Pull | Plug Male Pins | Polyphenylene Sulfide (PPS) | Backshell Strain Relief | Plastic | 3.99 mm | 0.087 in | 2.2 mm | 0.157 in | 450 V | Gold | Gray Yellow | 7 µin | 0.178 µm | Unshielded | Keyed | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | IP50 - Dust Protected | Copper Alloy | ||
NorComp Inc. | 120 °C | -20 ░C | 6 A | Free Hanging (In-Line) | 7 | Push-Pull | Plug Male Pins | Polyphenylene Sulfide (PPS) | Backshell Strain Relief | Plastic | 3.99 mm | 0.087 in | 2.2 mm | 0.157 in | 450 V | Gold | 7 µin | 0.178 µm | Unshielded | Keyed | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | IP50 - Dust Protected | Copper Alloy | |||

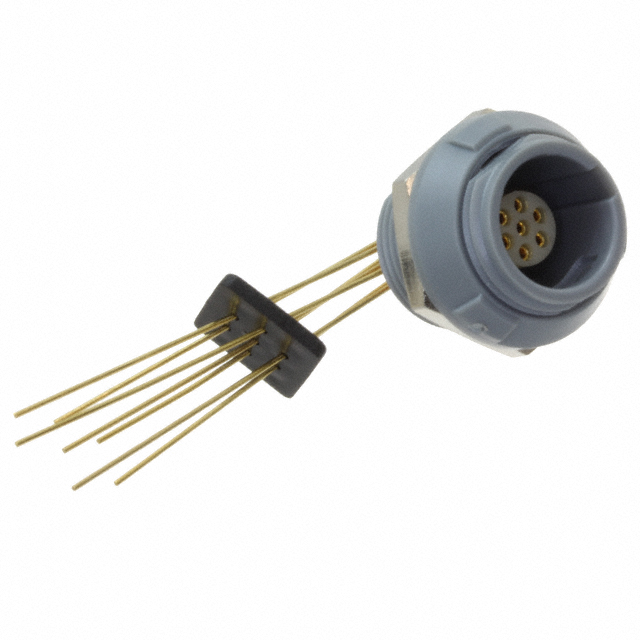

 NorComp Inc. | 120 °C | -20 ░C | 6 A | Panel Mount Right Angle Through Hole | 7 | Push-Pull | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | Plastic | 450 V | Gold | Gray Green | 7 µin | 0.178 µm | Unshielded | Keyed | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | IP50 - Dust Protected | Copper Alloy | Solder | Bulkhead - Front Side Nut | |||||
 NorComp Inc. | 120 °C | -20 ░C | 6 A | Free Hanging (In-Line) | 7 | Push-Pull | Plug Male Pins | Polyphenylene Sulfide (PPS) | Plastic | 3.99 mm | 0.087 in | 2.2 mm | 0.157 in | 450 V | Gold | Gray Green | 7 µin | 0.178 µm | Unshielded | Keyed | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | IP50 - Dust Protected | Copper Alloy | |||
 NorComp Inc. | 120 °C | -20 ░C | 6 A | Free Hanging (In-Line) | 7 | Push-Pull | Plug Male Pins | Polyphenylene Sulfide (PPS) | Plastic | 5 mm | 0.157 in | 4 mm | 0.197 in | 450 V | Gold | Gray Green | 7 µin | 0.178 µm | Unshielded | Keyed | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | IP50 - Dust Protected | Copper Alloy | |||
 NorComp Inc. | 120 °C | -20 ░C | 6 A | Panel Mount Right Angle Through Hole | 7 | Push-Pull | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | Plastic | 450 V | Gold | Gray | 7 µin | 0.178 µm | Unshielded | Keyed | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | IP50 - Dust Protected | Copper Alloy | Solder | Bulkhead - Front Side Nut | |||||
 NorComp Inc. | 120 °C | -20 ░C | 6 A | Panel Mount | 7 | Push-Pull | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | Plastic | 450 V | Gold | 7 µin | 0.178 µm | Unshielded | Keyed | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | IP50 - Dust Protected | Copper Alloy | Bulkhead - Front Side Nut | |||||||
 NorComp Inc. | 120 °C | -20 ░C | 6 A | Panel Mount Right Angle Through Hole | 7 | Push-Pull | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | Plastic | 450 V | Gold | Blue Gray | 7 µin | 0.178 µm | Unshielded | Keyed | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | IP50 - Dust Protected | Copper Alloy | Solder | Bulkhead - Front Side Nut | |||||
 NorComp Inc. | 120 °C | -20 ░C | 6 A | Free Hanging (In-Line) | 7 | Push-Pull | Plug Male Pins | Polyphenylene Sulfide (PPS) | Plastic | 3.99 mm | 0.087 in | 2.2 mm | 0.157 in | 450 V | Gold | 7 µin | 0.178 µm | Unshielded | Keyed | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | IP50 - Dust Protected | Copper Alloy | ||||
NorComp Inc. | 120 °C | -20 ░C | 6 A | Free Hanging (In-Line) | 7 | Push-Pull | Plug Male Pins | Polyphenylene Sulfide (PPS) | Plastic | 6 mm | 0.197 in | 5 mm | 0.236 in | 450 V | Gold | Gray Green | 7 µin | 0.178 µm | Unshielded | Keyed | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | IP50 - Dust Protected | Copper Alloy |
