PCB-B Series

Manufacturer: Adam Tech

Catalog

CONN FFC FPC TOP 18POS 1.25MM RA

Part	Housing Color	Voltage Rating	Connector/Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness	Contact Finish	Contact Material	Number of Positions	Mounting Type	Material Flammability Rating	Termination	Flat Flex Type	Cable End Type	Housing Material	Height Above Board	Height Above Board	Features	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]

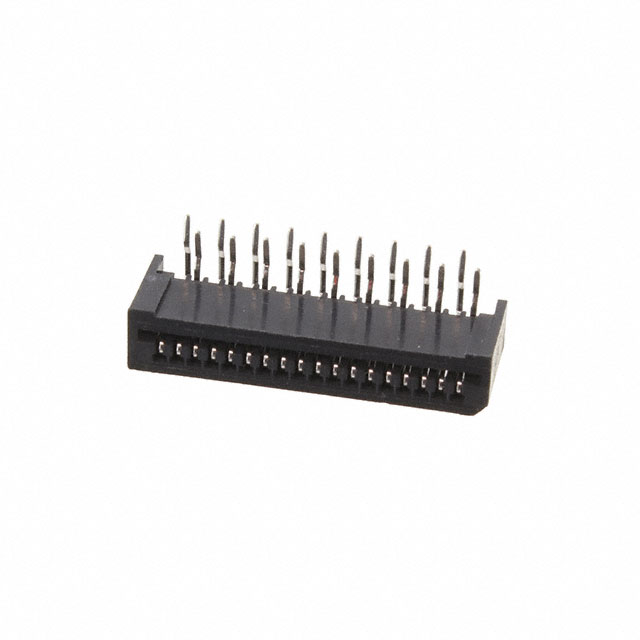

Adam Tech PCB-B-18-SA-25	Black	250 V	Contacts Top	-55 C	85 °C	0.3 mm	Tin	Phosphor Bronze	18	Right Angle Through Hole	UL94 V-0	Kinked Pin	FFC FPC	Straight	Polybutylene Terephthalate (PBT) Glass Filled	5 mm	0.197 in	Low Insertion Force (LIF)	0.049 in	1.25 mm

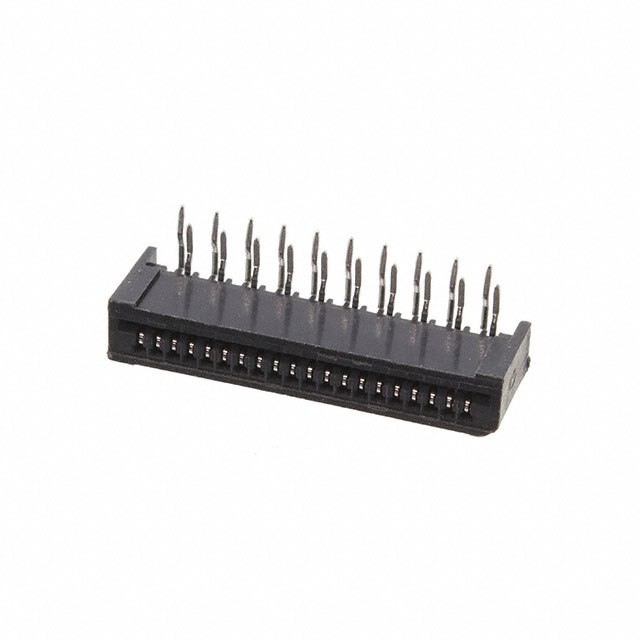

Adam Tech PCB-B-20-SA-25	Black	250 V	Contacts Top	-55 C	85 °C	0.3 mm	Tin	Phosphor Bronze	20	Right Angle Through Hole	UL94 V-0	Kinked Pin	FFC FPC	Straight	Polybutylene Terephthalate (PBT) Glass Filled	5 mm	0.197 in	Low Insertion Force (LIF)	0.049 in	1.25 mm

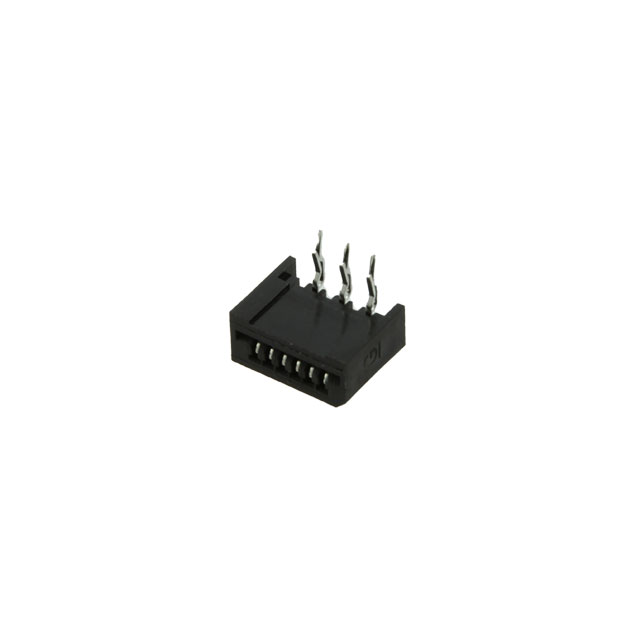

Adam Tech PCB-B-06-SA-25	Black	250 V	Contacts Top	-55 C	85 °C	0.3 mm	Tin	Phosphor Bronze	6	Right Angle Through Hole	UL94 V-0	Kinked Pin	FFC FPC	Straight	Polybutylene Terephthalate (PBT) Glass Filled	5 mm	0.197 in	Low Insertion Force (LIF)	0.049 in	1.25 mm

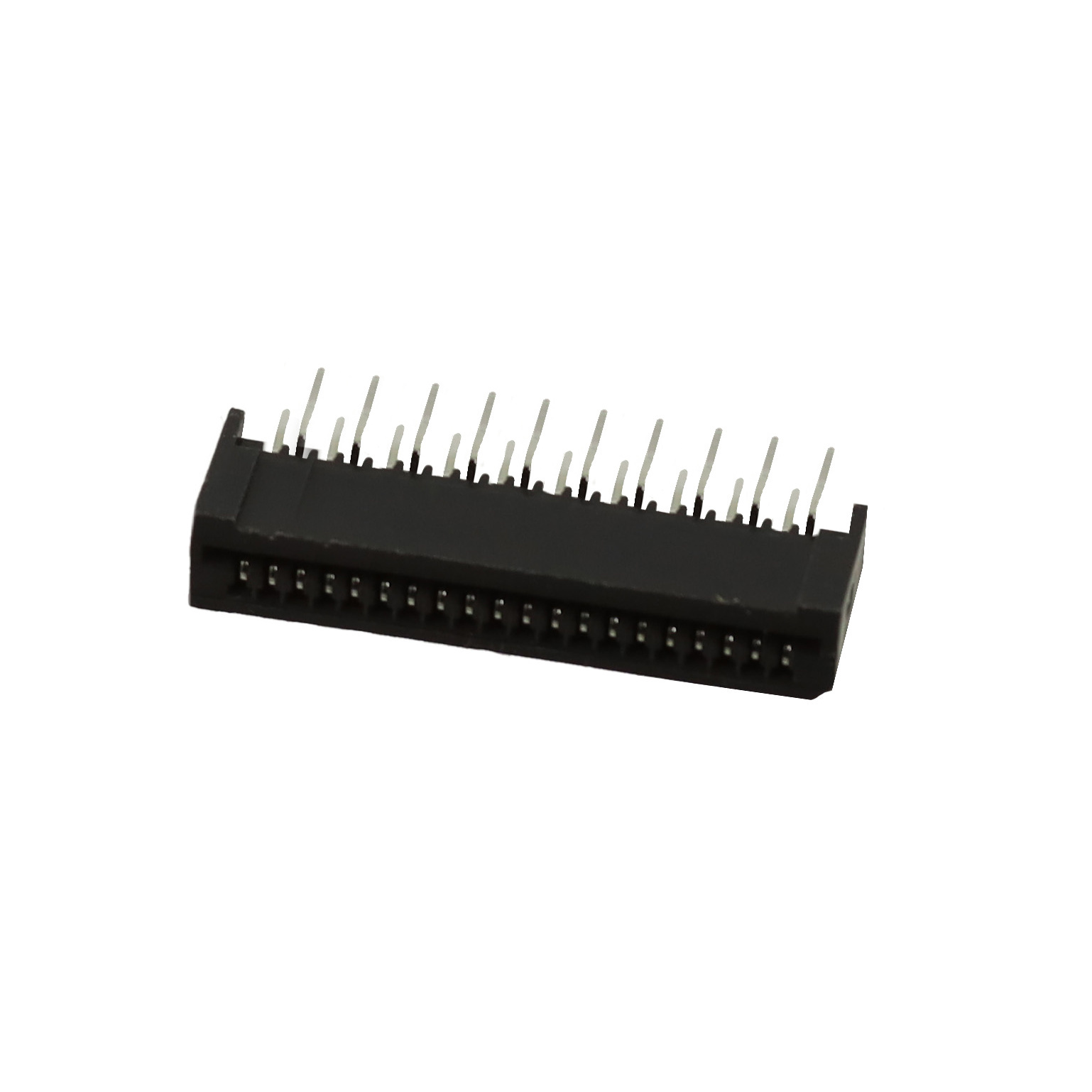

Adam Tech PCB-B-20-T-25	Black	250 V	Contacts Vertical - 1 Sided	-55 C	85 °C	0.3 mm	Tin	Phosphor Bronze	20	Through Hole	UL94 V-0	Kinked Pin	FFC FPC	Straight	Polybutylene Terephthalate (PBT) Glass Filled				0.049 in	1.25 mm	0.315 in	8 mm

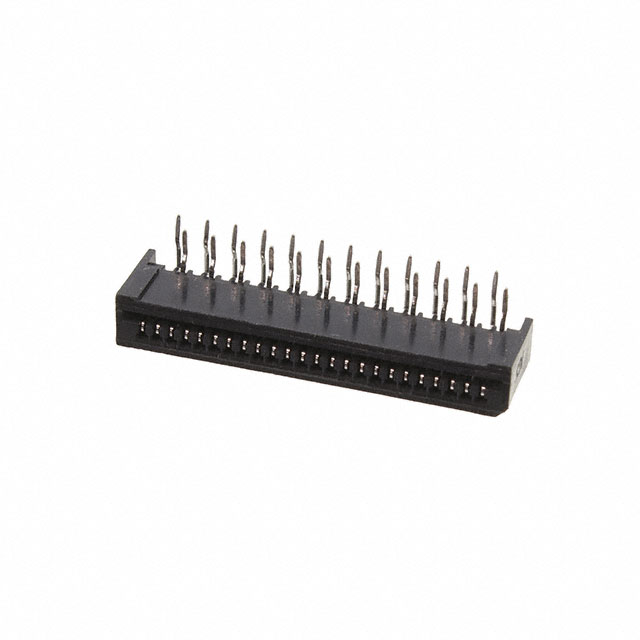

Adam Tech PCB-B-24-SA-25	Black	250 V	Contacts Top	-55 C	85 °C	0.3 mm	Tin	Phosphor Bronze	24	Right Angle Through Hole	UL94 V-0	Kinked Pin	FFC FPC	Straight	Polybutylene Terephthalate (PBT) Glass Filled	5 mm	0.197 in	Low Insertion Force (LIF)	0.049 in	1.25 mm
Adam Tech PCB-B-04-SA-25	Black	250 V	Contacts Top	-55 C	85 °C	0.3 mm	Tin	Phosphor Bronze	4	Right Angle Through Hole	UL94 V-0	Kinked Pin	FFC FPC	Straight	Polybutylene Terephthalate (PBT) Glass Filled	5 mm	0.197 in	Low Insertion Force (LIF)	0.049 in	1.25 mm

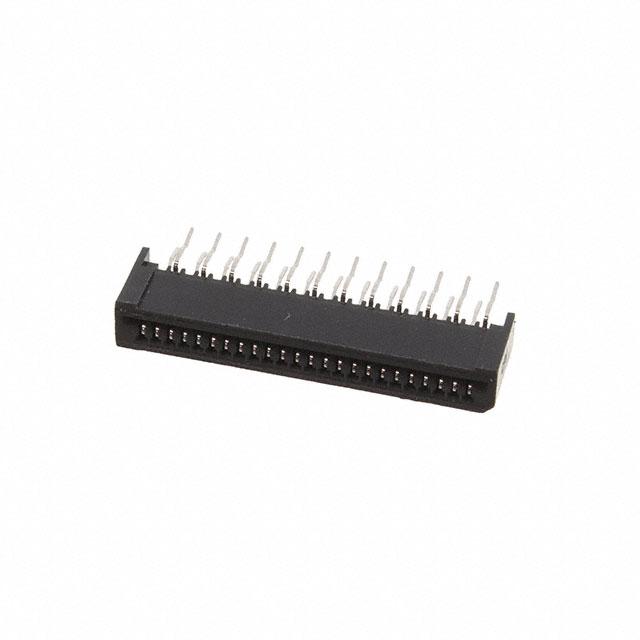

Adam Tech PCB-B-24-T-25	Black	250 V	Contacts Vertical - 1 Sided	-55 C	85 °C	0.3 mm	Tin	Phosphor Bronze	24	Through Hole	UL94 V-0	Kinked Pin	FFC FPC	Straight	Polybutylene Terephthalate (PBT) Glass Filled				0.049 in	1.25 mm	0.315 in	8 mm
