SC-30 Series

Manufacturer: KEMET

Catalog

COMMON MODE FILTER, 0.5MH, 30A ROHS COMPLIANT: YES

Part	Operating Temperature [Min]	Operating Temperature [Max]	Height (Max) [z]	Height (Max) [z]	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]	Voltage Rating - AC	Number of Lines	Filter Type	Current Rating (Max) [Max]	Voltage Rating - DC	Mounting Type	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Height (Max) [z]
KEMET SC-30-050H	-40 C	105 ░C	1.181 in	30 mm	500 µH	3 mOhm	250 V	2	Power Line	30 A	250 V	Through Hole	4 PC Pin Horizontal No Base	55 mm	2.165 in

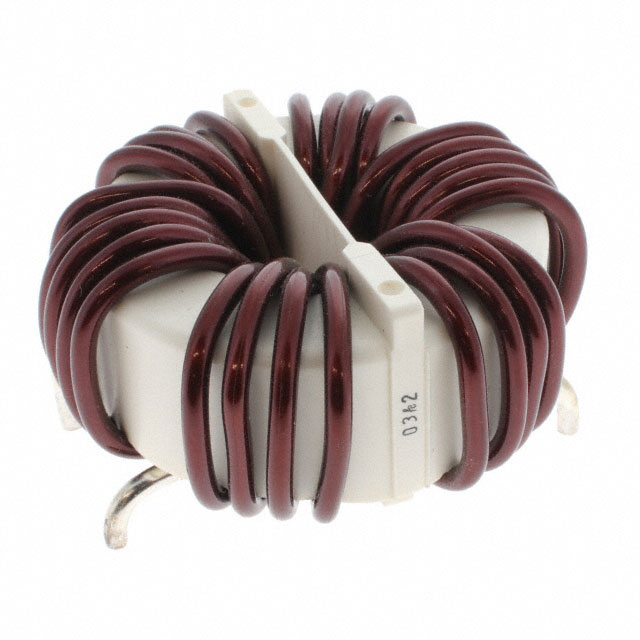

KEMET SC-30-E100	-40 C	120 °C		1.378 in	1 mH		250 V	2	Power Line	30 A	250 V	Through Hole	4 PC Pin Horizontal No Base	63 mm	2.48 in	35 mm
