Q60VR3 Series

Catalog

PHOTOELECTRIC SENSOR, 6.56FT, INFRARED LED, BACKGROUND SUPPRESSION/PROXIMITY, DIGITAL, 250VAC

Part	Ingress Protection	Response Time	Light Source	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Configuration	Sensing Distance [Max]	Sensing Distance [Min]	Adjustment Type	Sensing Method	Connection Method	Sensing Distance	Sensing Distance	Cable Length	Cable Length

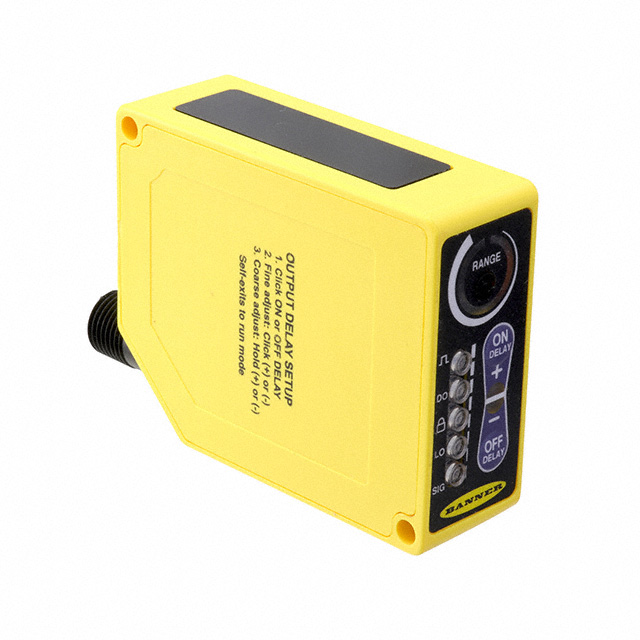

BANNER ENGINEERING Q60VR3AF2000Q1	IP67 NEMA 6P	15 ms	Infrared LED	55 °C	-20 ░C	12 VDC 24 VAC	250 VDC 250 VAC	SPST	78.74 " 200 cm	7.87 in 200 mm	Adjustable	Background Suppression	Connector

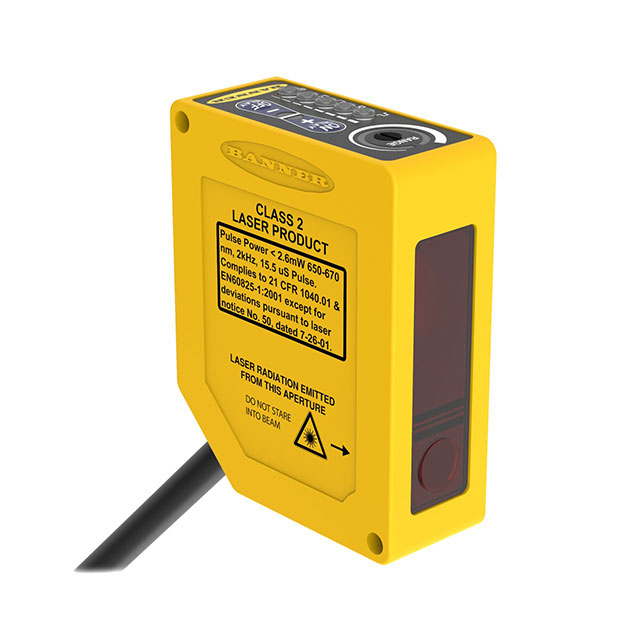

BANNER ENGINEERING Q60VR3LAF2000Q1	IEC IEC IP67 IP67 NEMA 6P	15 ms	LED	45 °C	-10 °C	12 VDC	250 VDC	Light-On/Dark-On			Adjustable	Background Suppression Reflective		2 m	78.74 in

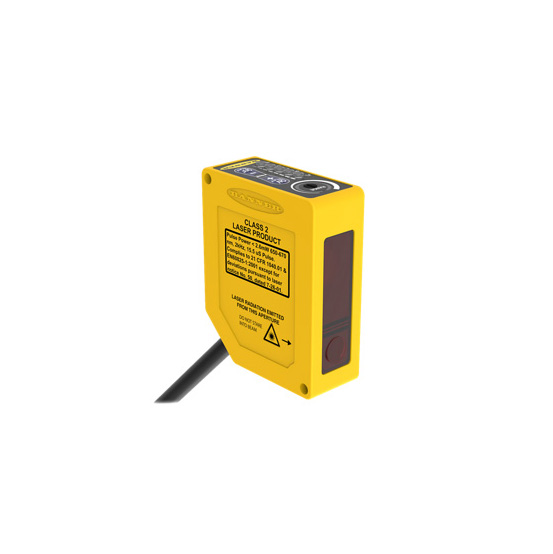

BANNER ENGINEERING Q60VR3LAF2000QPMA3	IEC IEC IP67 IP67 NEMA 6P	15 ms	LED	45 °C	-10 °C	12 VDC 24 VAC	250 VAC 250 VDC	SPST			Adjustable	Background Suppression	Connector	2 m	78.74 in

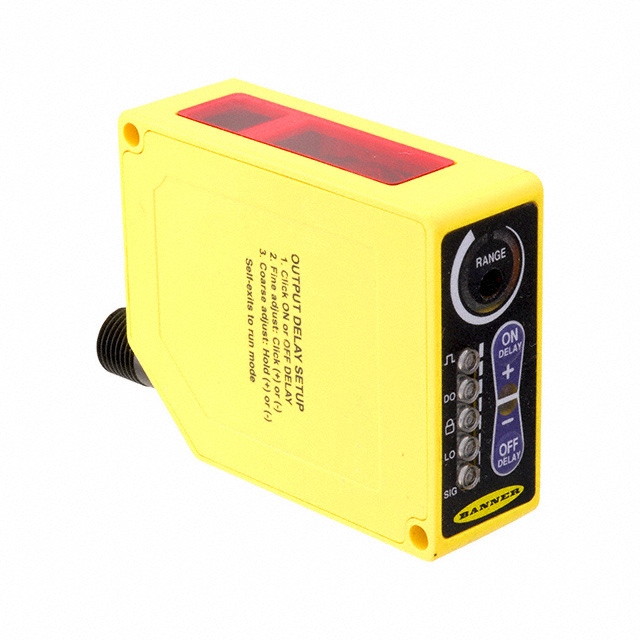

BANNER ENGINEERING Q60VR3AFV1000Q1	IP67 NEMA 6P	15 ms	Red LED	55 °C	-20 ░C	12 VDC 24 VAC	250 VDC 250 VAC	SPST			Adjustable	Background Suppression	Connector	1 m	39.37 in

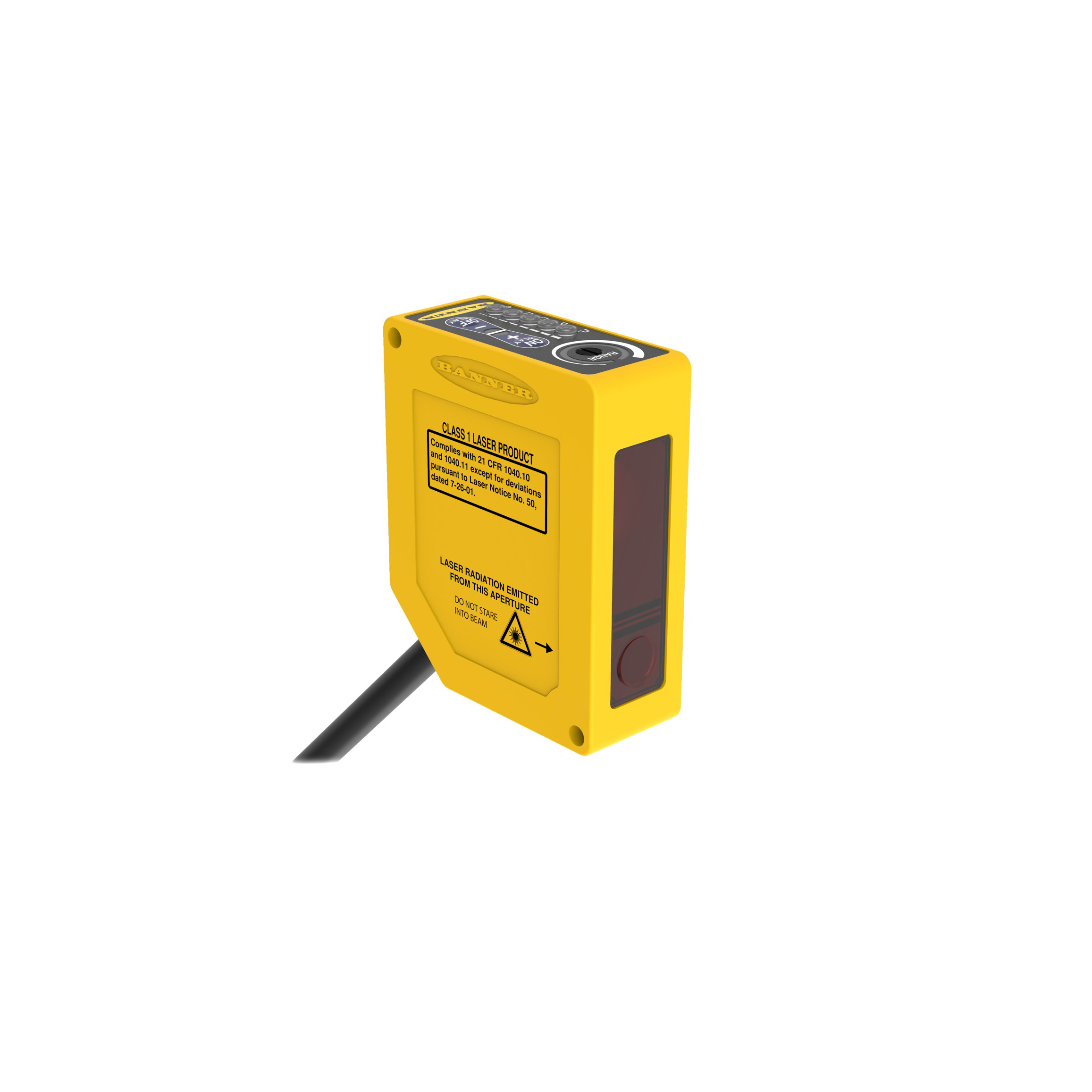

BANNER ENGINEERING Q60VR3LAF1400QPMA	IEC IEC IP67 IP67 NEMA 6P	15 ms	LED	45 °C	-10 °C	12 VDC 24 VAC	250 VAC 250 VDC	SPST			Adjustable	Background Suppression	Connector	1.4 m	55.118 in
BANNER ENGINEERING Q60VR3AF2000	IP67 NEMA 6P	15 ms	Infrared LED	55 °C	-20 ░C	12 VDC 24 VAC	250 VDC 250 VAC	SPDT	78.74 " 200 cm	7.87 in 200 mm	Adjustable	Background Suppression	Cable			78.74 "	2 m
