082-816 Series
Manufacturer: Amphenol RF
Beta
⌘K
CONNECTOR: COAXIAL; PLUG; MALE; HN; SOLDERING,CLAMP; FOR CABLE
| Part | Impedance | Center Contact Plating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shield Termination | Mounting Type | Connector Style | Ingress Protection | Dielectric Material | Body Finish | Contact Termination | Body Material | Voltage Rating | Mating Cycles | Number of Ports | Includes | Housing Color | Frequency - Max [Max] | Center Contact Material | Cable Group | Convert To (Adapter End) | Conversion Type | Style | Adapter Series | Convert From (Adapter End) | Adapter Type | Fastening Type | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

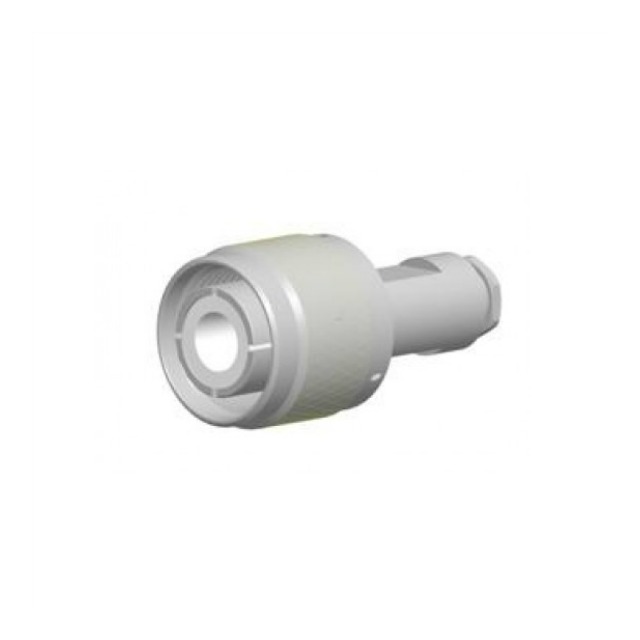

 Amphenol RF | 50 Ohms | Silver | Male Pin Plug | -65 ░C | 165 °C | Clamp | Free Hanging (In-Line) | HN Type | Weatherproof | Polytetrafluoroethylene (PTFE) | Silver | Solder | Brass | 1500 V | 500 | 1 | 1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer | Silver | 4 GHz | Brass | 143 212 54 6A 89248 9290 Belden 1152A RG-6 | ||||||||

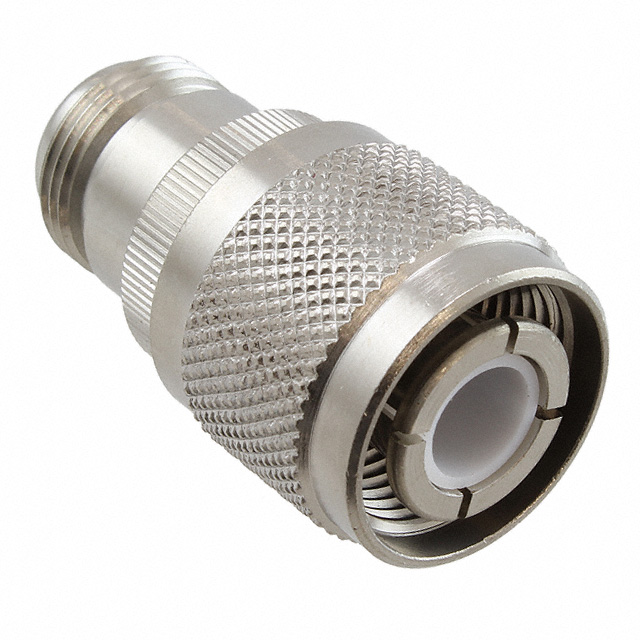

 Amphenol RF | 50 Ohms | Silver | -65 ░C | 165 °C | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Nickel | Brass | 4 GHz | Beryllium Copper | HN Plug Male Pin | Between Series | Straight | N to HN | Female Socket N Jack | Plug to Jack | |||||||||||||

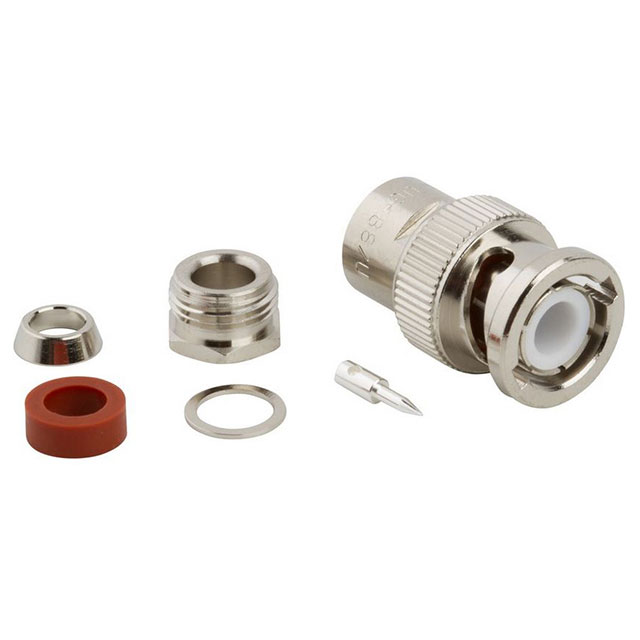

 Amphenol RF | 50 Ohms | Silver | Male Pin Plug | -65 ░C | 165 °C | Clamp | Free Hanging (In-Line) | BNC | Weatherproof | Polytetrafluoroethylene (PTFE) | Nickel | Solder | Brass | 500 V | 500 | 1 | Braid Clamp Clamp Connector Contact Gasket Insulator Washer | Silver | 4 GHz | Brass | 180 180A 180B 1865A 195 Belden 1855 RG-122 | Bayonet Lock | 0.2 dB | ||||||
Amphenol RF | 50 Ohms | Silver | Male Pin Plug | -65 ░C | 165 °C | Clamp | HN Type | Polytetrafluoroethylene (PTFE) | Nickel | Solder | Brass | 500 | 1 | Silver | 4 GHz | Brass | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 |
