2314876 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

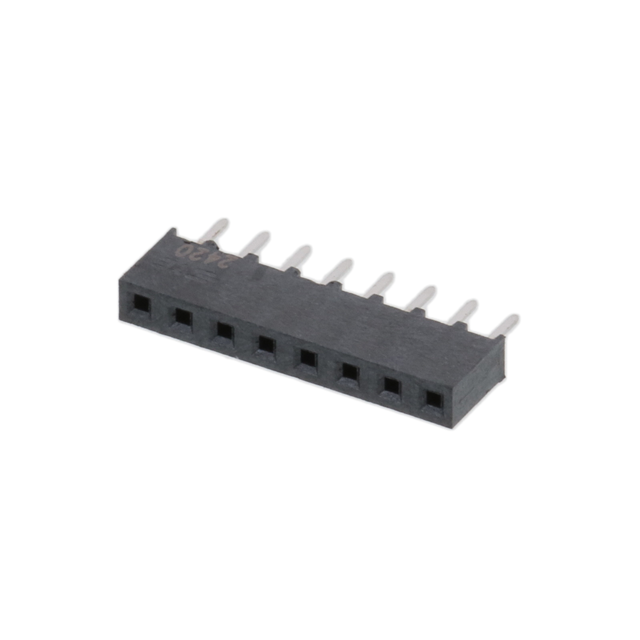

8P,2MM,B-B,REC,SRVT,2.7,0.1AU,TB
| Part | Pitch - Mating [x] | Pitch - Mating [x] | Current Rating (Amps) | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Number of Positions Loaded | Contact Finish - Post | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Number of Rows | Termination | Connector Type | Voltage Rating | Mounting Type | Insulation Height | Insulation Height | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Insulation Material | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.079 in | 2 mm | 2 A | UL94 V-0 | 125 °C | -40 °C | Square | All | Tin | Push-Pull | 3.94 µin | 0.1 µm | 8 | Phosphor Bronze | 0.106 in | 2.69 mm | Black | 1 | Solder | Receptacle | 125 VDC | Through Hole | 0.177 in | 4.5 mm | 3 µm | 118.1 µin | Female Socket | Liquid Crystal Polymer (LCP) | Gold |
 TE Connectivity Raychem Cable Protection | 0.079 in | 2 mm | 2 A | UL94 V-0 | 125 °C | -40 °C | Square | All | Tin | Push-Pull | 3.94 µin | 0.1 µm | Phosphor Bronze | 0.106 in | 2.69 mm | Black | 1 | Solder | Receptacle | 125 VDC | Through Hole | 0.177 in | 4.5 mm | 3 µm | 118.1 µin | Female Socket | Liquid Crystal Polymer (LCP) | Gold | |
 TE Connectivity Raychem Cable Protection | 0.079 in | 2 mm | 2 A | UL94 V-0 | 125 °C | -40 °C | Square | All | Tin | Push-Pull | 3.94 µin | 0.1 µm | Phosphor Bronze | 0.106 in | 2.69 mm | Black | 1 | Solder | Receptacle | 125 VDC | Through Hole | 0.177 in | 4.5 mm | 0.3 µm | 12 µin | Female Socket | Liquid Crystal Polymer (LCP) | Gold | |
 TE Connectivity Raychem Cable Protection | 0.079 in | 2 mm | 2 A | UL94 V-0 | 125 °C | -40 °C | Square | All | Tin | Push-Pull | 3.94 µin | 0.1 µm | 2 | Phosphor Bronze | 0.106 in | 2.69 mm | Black | 1 | Solder | Receptacle | 125 VDC | Through Hole | 0.177 in | 4.5 mm | 3 µm | 118.1 µin | Female Socket | Liquid Crystal Polymer (LCP) | Gold |
 TE Connectivity Raychem Cable Protection | 0.079 in | 2 mm | 2 A | UL94 V-0 | 125 °C | -40 °C | Square | All | Tin | Push-Pull | 3.94 µin | 0.1 µm | 4 | Phosphor Bronze | 0.106 in | 2.69 mm | Black | 1 | Solder | Receptacle | 125 VAC | Through Hole | 0.177 in | 4.5 mm | 0.3 µm | 12 µin | Female Socket | Liquid Crystal Polymer (LCP) | Gold |
