PM5-M124 Series
Manufacturer: Bivar Inc.
Beta
⌘K
LED PANEL MOUNT INDICATOR, YELLOW, 24 V, 8 MM, 20 MA, 20 MCD, IP67
| Part | Features | Current | Wavelength - Peak | Ratings | Lens Color | Lamp Color | Lens Style | Lens Transparency | Voltage [Min] | Voltage [Max] | Millicandela Rating | Ingress Protection | Panel Cutout Dimensions | Panel Cutout Dimensions | Lens Size [diameter] | Termination Style | Panel Cutout Shape | Viewing Angle | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

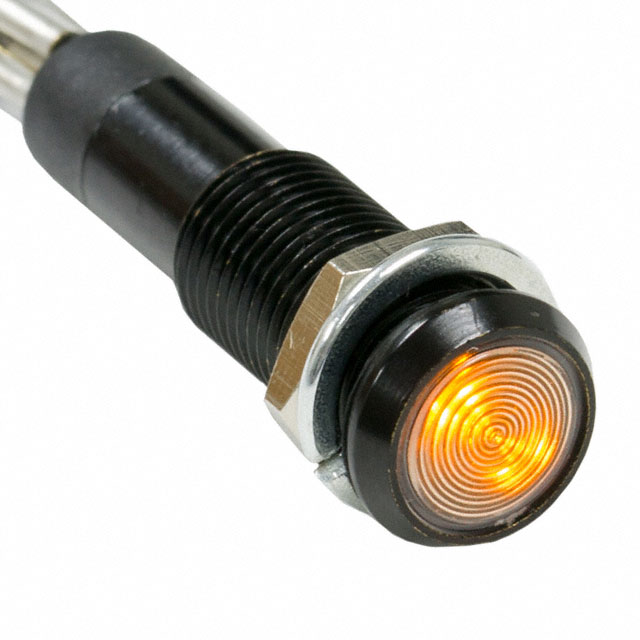

 Bivar Inc. | Auto-Dimming | 20 mA | 590 nm | AC/DC | Colorless | Yellow | Round with Flat Top | Fresnel | 12 V | 24 V | 10 mcd | IP67 | 8.13 mm | 0.32 " | 10.2 mm Dia | Quick Connect - 0.110" (2.8mm) | Round | 100 ° | LED |

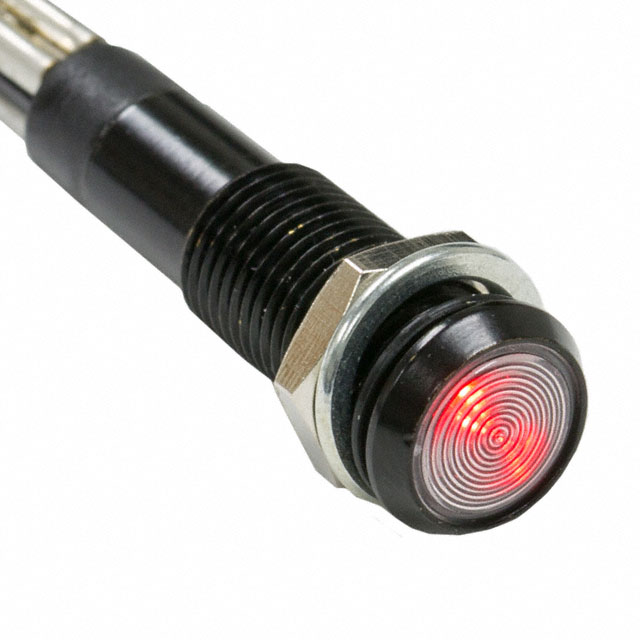

 Bivar Inc. | Auto-Dimming | 20 mA | AC/DC | Colorless | Red | Round with Flat Top | Fresnel | 12 V | 24 V | 20 mcd | IP67 | 8.13 mm | 0.32 " | 10.2 mm Dia | Quick Connect - 0.110" (2.8mm) | Round | 100 ° | LED | |

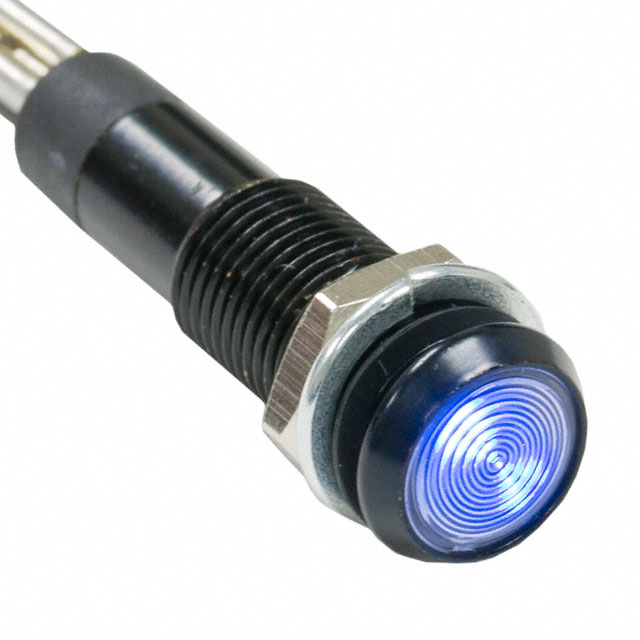

 Bivar Inc. | Auto-Dimming | 20 mA | 465 nm | AC/DC | Colorless | Blue | Round with Flat Top | Fresnel | 12 V | 24 V | 20 mcd | IP67 | 8.13 mm | 0.32 " | 10.2 mm Dia | Quick Connect - 0.110" (2.8mm) | Round | 100 ° | LED |
