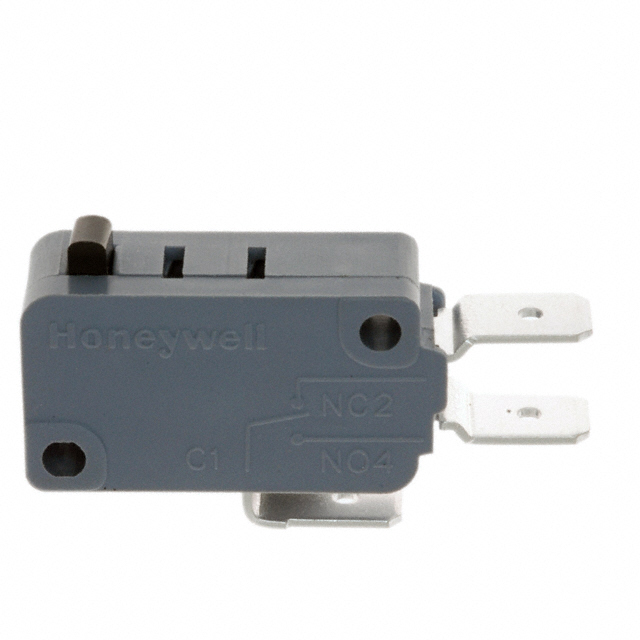

V15T2 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACT SPST-NO 22A 125V

Part	Switch Function	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Overtravel [custom]	Overtravel [custom]	Actuator Type	Release Force	Current Rating (Amps)	Termination Style	Mechanical Life	Differential Travel	Differential Travel	Operating Force	Mounting Type	Operating Position	Operating Position	Circuit	Pretravel	Pretravel	Electrical Life	Overtravel	Overtravel	Differential Travel

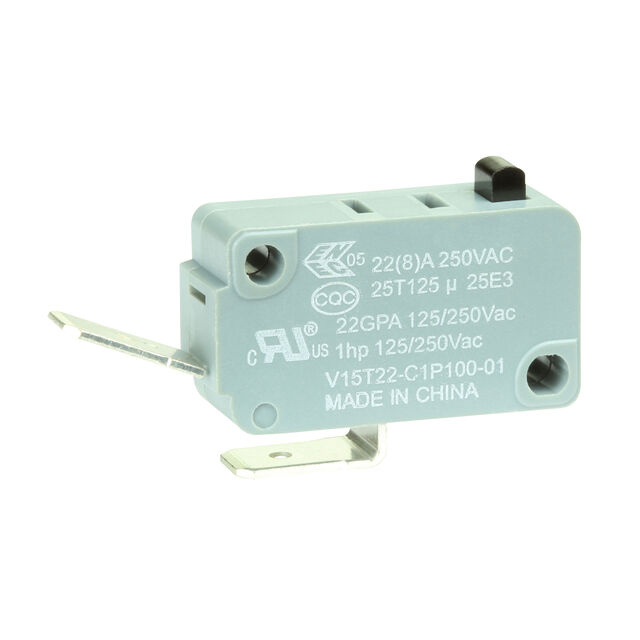

Honeywell Sensing and Productivity Solutions V15T22-C1P100-01	Off-Mom	125 V	-25 °C	125 °C	0.03 "	0.76 mm	Round (Pin Plunger)	25 gf	22 A	Quick Connect - 0.250" (6.3mm)	1000000 Cycles	0.5 mm	0.02 in	100 gf	Chassis Mount	14.7 mm	0.579 in	SPST-NO	0.06 in	1.5 mm

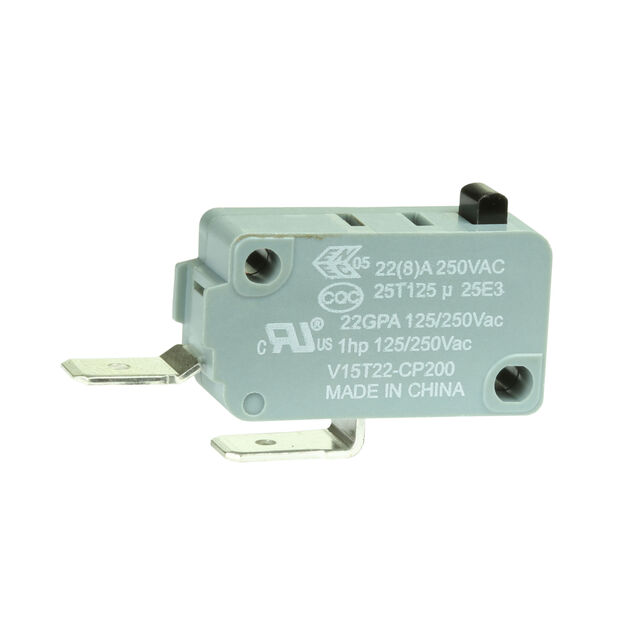

Honeywell Sensing and Productivity Solutions V15T22-CP200-K	Off-Mom	250 V	-25 °C	125 °C	0.03 "	0.76 mm	Round (Pin Plunger)	50 gf	22 A	Quick Connect - 0.250" (6.3mm)	5000000 Cycles	0.4 mm	0.016 in	0.2 kgf	Chassis Mount	14.7 mm	0.579 in	SPST-NO	0.063 in	1.6 mm	10000 Cycles

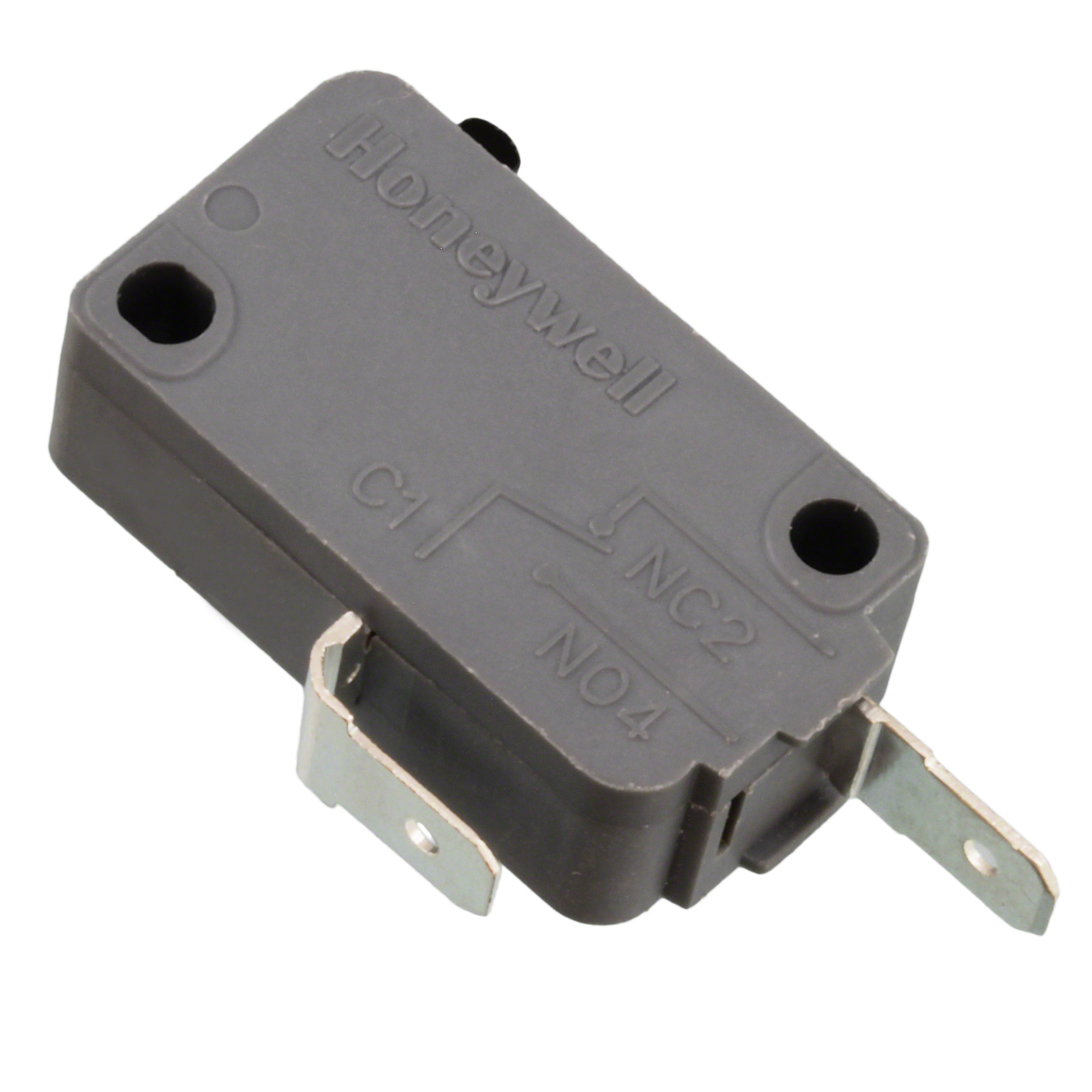

Honeywell Sensing and Productivity Solutions V15T22-EC200	On-Mom	250 V	-25 °C	125 °C	0.03 "	0.76 mm	Round (Pin Plunger)	50 gf	22 A	Quick Connect	5000000 Cycles	0.4 mm	0.016 in	0.2 kgf	Chassis Mount	14.7 mm	0.579 in	SPST-NC	0.063 in	1.6 mm	10000 Cycles

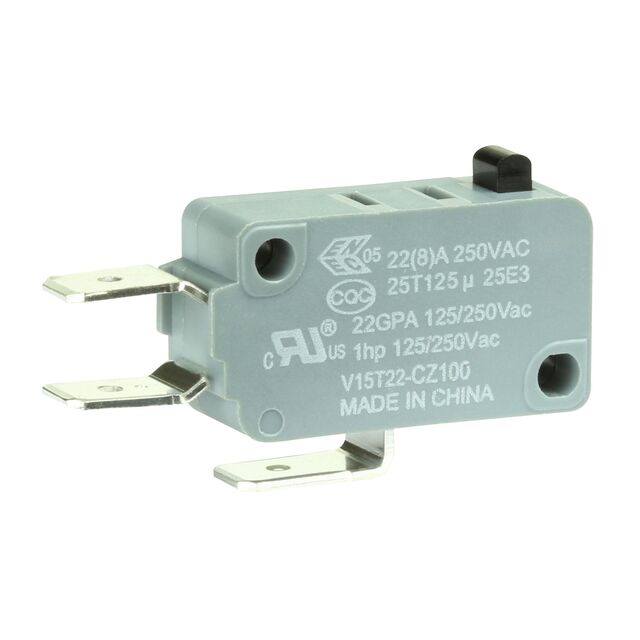

Honeywell Sensing and Productivity Solutions V15T22-CZ100	On-Mom	125 V	-25 °C	125 °C	0.03 "	0.76 mm	Round (Pin Plunger)	25 gf	22 A	Quick Connect - 0.250" (6.3mm)	1000000 Cycles	0.5 mm	0.02 in	100 gf	Chassis Mount	14.7 mm	0.579 in	SPDT	0.06 in	1.5 mm

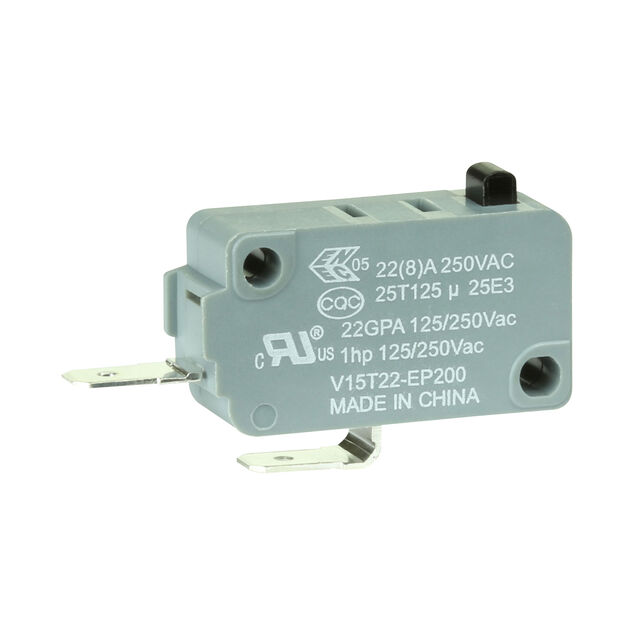

Honeywell Sensing and Productivity Solutions V15T22-EP200	Off-Mom	125 V	-25 °C	125 °C	0.03 "	0.76 mm	Round (Pin Plunger)	50 gf	22 A	Quick Connect	1000000 Cycles	0.5 mm	0.02 in	0.2 kgf	Chassis Mount	14.7 mm	0.579 in	SPST-NO	0.06 in	1.5 mm

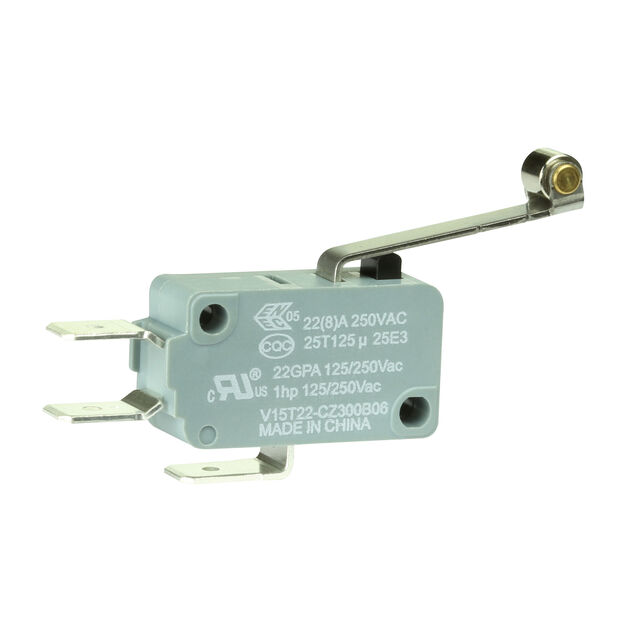

Honeywell Sensing and Productivity Solutions V15T22-CZ300B06	On-Mom	125 V	-25 °C	125 °C			Lever Roller		22 A	Quick Connect - 0.250" (6.3mm)	1000000 Cycles				Chassis Mount			SPDT

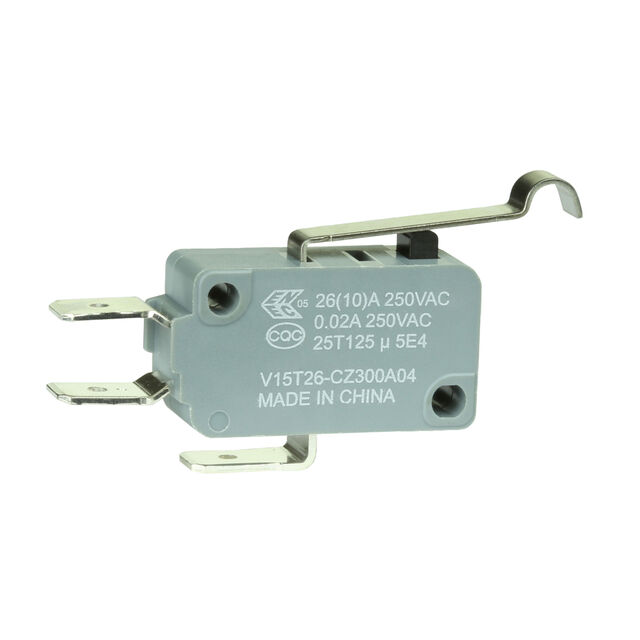

Honeywell Sensing and Productivity Solutions V15T26-CZ300A04	On-Mom	250 V	-25 °C	125 °C			Lever Simulated Roller	30 gf	26 A	Quick Connect - 0.250" (6.3mm)	1000000 Cycles	0.05 in		180 gf	Chassis Mount	18.49 mm	0.728 in	SPDT	0.125 in	3.2 mm		1.2 mm	0.047 "	1.3 mm

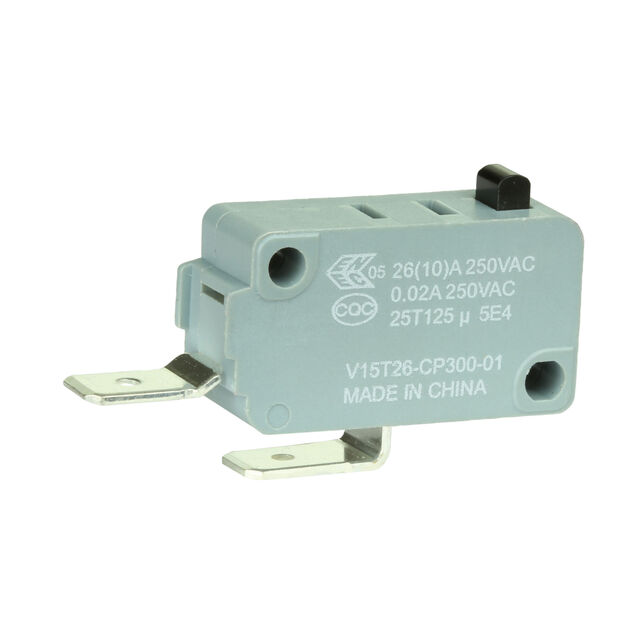

Honeywell Sensing and Productivity Solutions V15T26-CP300-01	Off-Mom	250 V	-25 °C	125 °C	0.03 "	0.76 mm	Round (Pin Plunger)		26 A	Quick Connect - 0.250" (6.3mm)	1000000 Cycles	0.5 mm	0.02 in	300 gf	Chassis Mount	14.7 mm	0.579 in	SPST-NO	0.06 in	1.5 mm
Honeywell Sensing and Productivity Solutions V15T22-SC200-01	On-Mom	125 V	-25 °C	125 °C			Lever Straight		22 A	Solder Lug	1000000 Cycles				Chassis Mount			SPST-NC
Honeywell Sensing and Productivity Solutions V15T22-C1Z200	On-Mom	125 V	-25 °C	125 °C	0.03 "	0.76 mm	Round (Pin Plunger)	50 gf	22 A	Quick Connect - 0.250" (6.3mm)	1000000 Cycles	0.5 mm	0.02 in	0.2 kgf	Chassis Mount	14.7 mm	0.579 in	SPDT	0.06 in	1.5 mm
