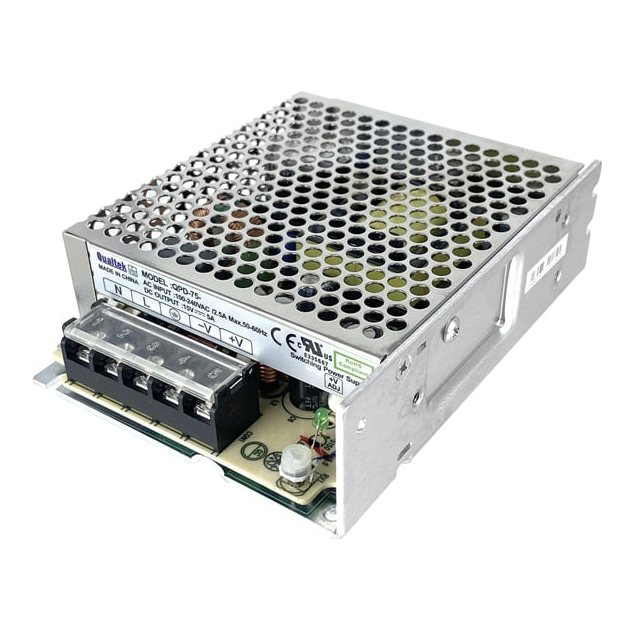

QPD-75 Series
Manufacturer: Qualtek
Beta
⌘K
AC/DC CONVERTER 24V 75W
| Part | Voltage - Isolation | Type | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Mounting Type | Number of Outputs | Approval Agency | Features | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Output 1 | Applications | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 3000 V | Enclosed | 3.2 A | 70 °C | -25 °C | 264 VAC | 90 VAC | 87 % | Chassis Mount | 1 | CB CE cURus | Adjustable Output DC Input Capable Universal Input | 99 mm | 3.9 " | 129 mm | 5.08 " | 38 mm | 1.5 in | 24 V | ITE (Commercial) | 75 W |
 Qualtek | 3000 V | Enclosed | 12 A | 70 °C | -25 °C | 264 VAC | 90 VAC | 80 % | Chassis Mount | 1 | CB CE cURus | Adjustable Output DC Input Capable Universal Input | 99 mm | 3.9 " | 129 mm | 5.08 " | 38 mm | 1.5 in | 5 V | ITE (Commercial) | 75 W |
