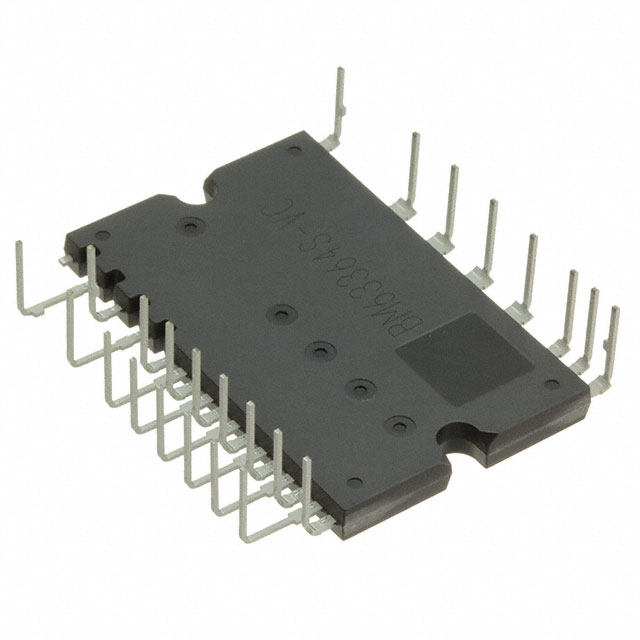

BM63364S-VC Series
600V IGBT Intelligent Power Module (IPM) for low speed switching drive
Manufacturer: Rohm Semiconductor
Catalog
600V IGBT Intelligent Power Module (IPM) for low speed switching drive
Key Features
• 3phase DC/AC Inverter, 600V/15A, Low Low Side IGBT Open Emitter, Built-in Bootstrap Diode, High Side IGBT Gate Driver (HVIC) : SOI (Silicon On Insulator) Process, Drive Circuit, High Voltage Level Shifting, Current Limit for Bootstrap Diode, Control Supply Under-Voltage Locked Out (UVLO), Low Side IGBT Gate Driver (LVIC) : Drive Circuit, Short Circuit Current Protection (SCP), Control Supply Under Voltage Locked Out (UVLO), Thermal Shutdown (TSD), Fault Signal (LVIC) Corresponding to SCP (Low Side IGBT), TSD, UVLO Fault, Input Interface 3.3V, 5V Line
Description
AI
BM63364S-VC is an Intelligent Power Module composed of gate drivers, bootstrap diodes, IGBTs, fly wheel diodes. Low saturation voltage IGBTs optimized for low speed switching drive (to 6kHz) such as a compressor is adopted. Please examine high speed switching series for high speed switching drive.
