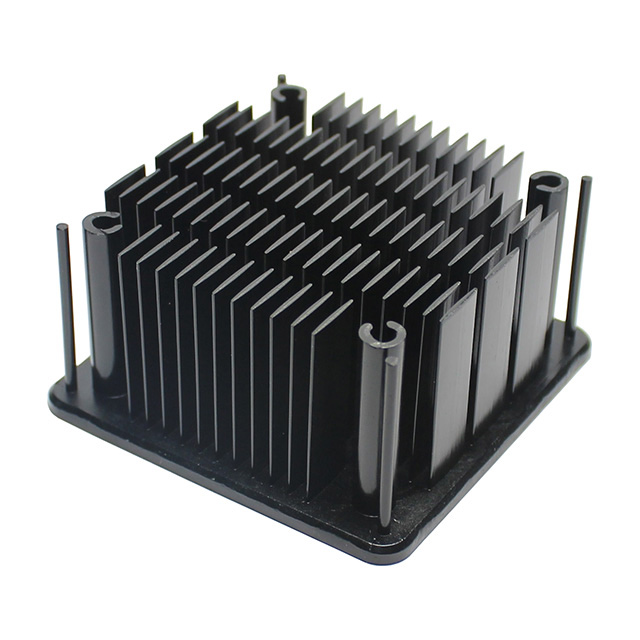

AER55 Series

Catalog

HEATSINK FORGED BLK ANO TOP MNT

Part	Shelf Life	Material Finish	Length [x]	Length [x]	Thermal Resistance @ Forced Air Flow	Attachment Method	Material	Width	Width	Type	Shape	Fin Height [custom]	Fin Height [custom]	Package Cooled	Thermal Resistance @ Natural	Fin Height	Fin Height [custom]	Fin Height [custom]	Fin Height	Fin Height [z]	Fin Height [z]
CTS Thermal Management Products AER55-55-12CB/A01	24 Months	Black Anodized	54.6 mm	2.15 "	2.57 °C/W	Thermal Tape Adhesive (Included)	Aluminum Alloy	2.15 in	54.6 mm	Top Mount	Fins Square	0.457 in	11.6 mm	ASIC BGA CPU LGA	8.04 °C/W
CTS Thermal Management Products AER55-55-15CB/A01	24 Months	Black Anodized	54.6 mm	2.15 "	2.28 °C/W	Thermal Tape Adhesive (Included)	Aluminum Alloy	2.15 in	54.6 mm	Top Mount	Fins Square	0.575 in		ASIC BGA CPU LGA	7.56 °C/W	14.6 mm
CTS Thermal Management Products AER55-55-23CB/A01	24 Months	Black Anodized	54.6 mm	2.15 "	1.67 °C/W	Thermal Tape Adhesive (Included)	Aluminum Alloy	2.15 in	54.6 mm	Top Mount	Fins Square			ASIC BGA CPU LGA	6.6 °C/W		22.61 mm	0.89 in
CTS Thermal Management Products AER55-55-33CB/A01	24 Months	Black Anodized	54.6 mm	2.15 "	1.2 °C/W	Thermal Tape Adhesive (Included)	Aluminum Alloy	2.15 in	54.6 mm	Top Mount	Fins Square			ASIC BGA CPU LGA	5.45 °C/W	32.6 mm			1.283 in
CTS Thermal Management Products AER55-55-28CB/A01	24 Months	Black Anodized	54.6 mm	2.15 "	1.47 °C/W	Thermal Tape Adhesive (Included)	Aluminum Alloy	2.15 in	54.6 mm	Top Mount	Fins Square			ASIC BGA CPU LGA	6.04 °C/W					27.6 mm	1.087 in
