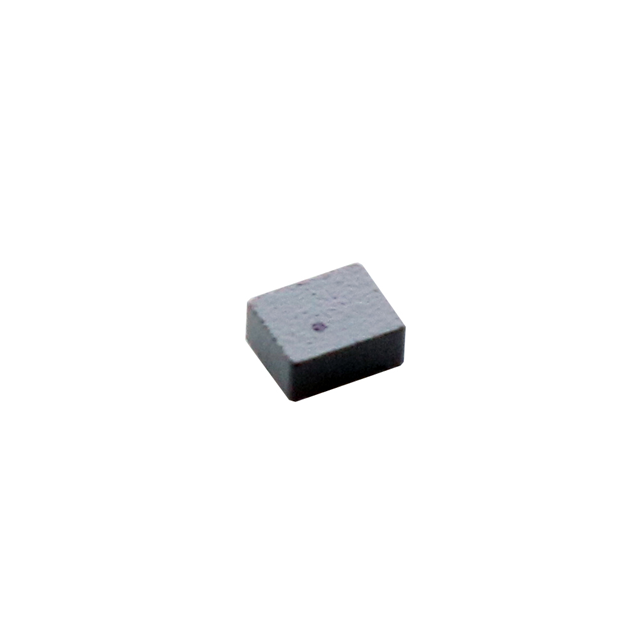

MPL-AT2514 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
LOW PROFILE SERIES, SIZE DIMENSION: 2514, INDUCTANCE VALUE: 4.7 H
| Part | Current Rating (Amps) | Mounting Type | DC Resistance (DCR) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Type | Shielding | Current - Saturation (Isat) | Inductance Frequency - Test | Inductance | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 1.7 A | Surface Mount | 180 mOhm | 2.5 mm | 0.079 in | 0.098 in | 2 mm | 0.055 in | 1.4 mm | Molded | Unshielded | 2.4 A | 100 kHz | 4.7 ÁH | 2-SMD J-Lead | 125 °C | -40 C |
Monolithic Power Systems Inc. | 2.6 A | Surface Mount | 70 mOhm | 2.5 mm | 0.079 in | 0.098 in | 2 mm | 0.055 in | 1.4 mm | Molded | Unshielded | 3.4 A | 100 kHz | 2.2 µH | 2-SMD J-Lead | 125 °C | -40 C |
