5450/2 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

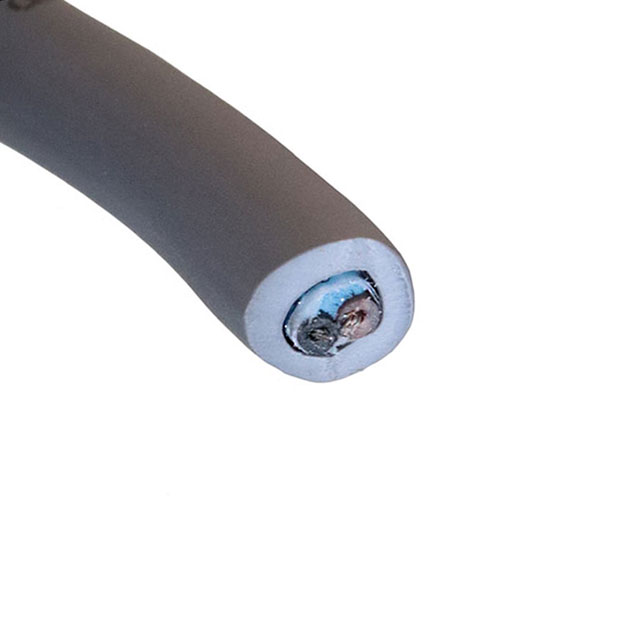

CBL 2COND 14AWG SHLD 1000=1000'
| Part | Shield Coverage | Shield Material | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Cable Type | Features | Conductor Material | Number of Conductors | Wire Gauge | Usage | Shield Type | Jacket (Insulation) Material | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 600 V | 10.41 mm | 0.41 in | 1.6 mm | 0.063 in | Slate | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 41 | 30 | ISO 10993 UL Style 2501 | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 2 | 14.5 AWG | Communication Control | Foil | Poly-Vinyl Chloride (PVC) | ||||
ALPHA WIRE | 100 % | Aluminum | 600 V | 10.41 mm | 0.41 in | 1.6 mm | 0.063 in | Slate | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 41 | 30 | ISO 10993 UL Style 2501 | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 2 | 14.5 AWG | Communication Control | Foil | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | ||
ALPHA WIRE | 100 % | Aluminum | 600 V | 10.41 mm | 0.41 in | 1.6 mm | 0.063 in | Slate | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 41 | 30 | ISO 10993 UL Style 2501 | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 2 | 14.5 AWG | Communication Control | Foil | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | ||
ALPHA WIRE | 100 % | Aluminum | 600 V | 10.41 mm | 0.41 in | 1.6 mm | 0.063 in | Slate | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 41 | 30 | ISO 10993 UL Style 2501 | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 2 | 14.5 AWG | Communication Control | Foil | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | ||
 ALPHA WIRE | 100 % | Aluminum | 600 V | 10.41 mm | 0.41 in | 1.6 mm | 0.063 in | Black | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 41 | 30 | ISO 10993 UL Style 2501 | Multi-Conductor | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 2 | 14.5 AWG | Communication Control | Foil | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
