AA3021 Series

Catalog

LED UNI-COLOR BLUE 460NM 2-PIN SMD T/R

Part	Mounting Type	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Lens Style	Wavelength - Dominant	Color	Lens Size [x]	Lens Size [y]	Height (Max) [z]	Supplier Device Package	Configuration	Package / Case	Lens Color	Viewing Angle	Millicandela Rating	Lens Transparency	Current - Test
Kingbright AA3021QBS/D	Surface Mount	460 nm	3.3 V	2.7 mm	2 mm	Oval with Flat Top	465 nm	Blue	2.5 mm	1.5 mm	1.5 mm	SMD	Standard	2-SMD J-Lead	Colorless	125 °	120 mcd	Clear	20 mA

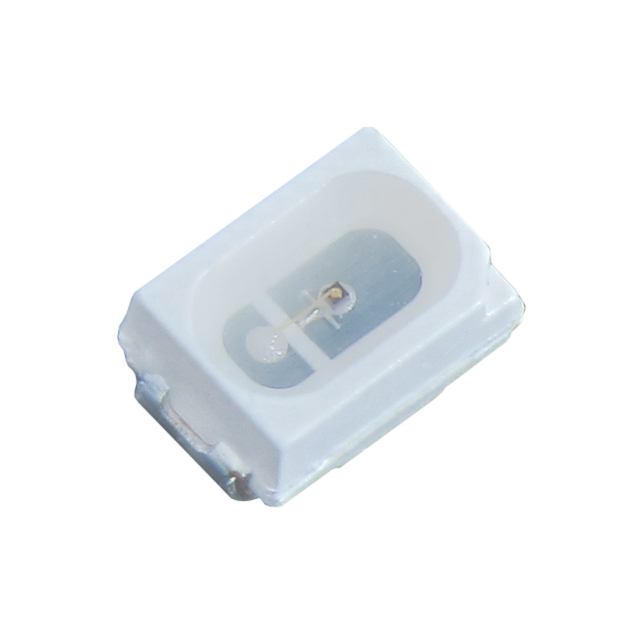

Kingbright AA3021LZGSK	Surface Mount	515 nm	2.65 V	2.7 mm	2 mm	Oval with Flat Top	525 nm	Green	2.5 mm	1.5 mm	1.5 mm	2-SMD	Independent	2-SMD J-Lead	Colorless	125 °	180 mcd	Clear	2 mA
Kingbright AA3021ES	Surface Mount	627 nm	2 V	2.7 mm	2 mm	Oval with Flat Top	617 nm	Red	2.5 mm	1.5 mm	1.5 mm	SMD	Standard	2-SMD J-Lead	Colorless	125 °	18 mcd	Clear	20 mA

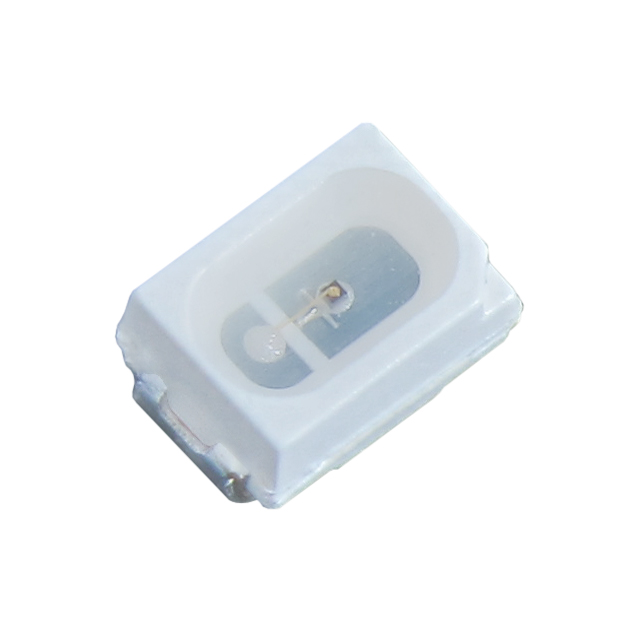

Kingbright AA3021LSYSK/J3-TR	Surface Mount	590 nm	1.85 V	2.7 mm	2 mm	Oval with Flat Top	590 nm	Yellow	2.5 mm	1.5 mm	1.5 mm	2-SMD	Independent	2-SMD J-Lead	Colorless	125 °	45 mcd	Clear	2 mA
Kingbright AA3021ZGSK	Surface Mount	515 nm	3.3 V	2.7 mm	2 mm	Oval with Flat Top	525 nm	Green	2.5 mm	1.5 mm	1.5 mm	SMD	Standard	2-SMD J-Lead	Colorless	125 °	700 mcd	Clear	20 mA
Kingbright AA3021SESK/J3-TR	Surface Mount	640 nm	2.2 V	2.7 mm	2 mm	Oval with Flat Top	625 nm	Red	2.5 mm	1.5 mm	1.5 mm	SMD	Standard	2-SMD J-Lead	Colorless	125 °	450 mcd	Clear	20 mA

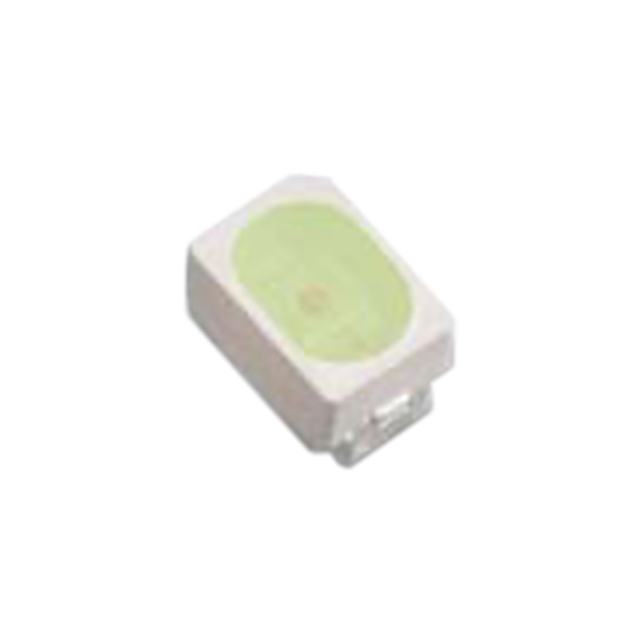

Kingbright AA3021VRCBS/A	Surface Mount		3.3 V	2.7 mm	2 mm	Oval with Flat Top		Cyan	2.5 mm	1.5 mm	1.5 mm	SMD	Standard	2-SMD J-Lead	Colorless	120 °	1600 mcd	Clear	20 mA
Kingbright AA3021YS	Surface Mount	590 nm	2.1 V	2.7 mm	2 mm	Oval with Flat Top	588 nm	Yellow	2.5 mm	1.5 mm	1.5 mm	SMD	Standard	2-SMD J-Lead	Colorless	125 °	15 mcd	Clear	20 mA
Kingbright AA3021SGS	Surface Mount	565 nm	2.2 V	2.7 mm	2 mm	Oval with Flat Top	568 nm	Green	2.5 mm	1.5 mm	1.5 mm	SMD	Standard	2-SMD J-Lead	Colorless	125 °	20 mcd	Clear	20 mA

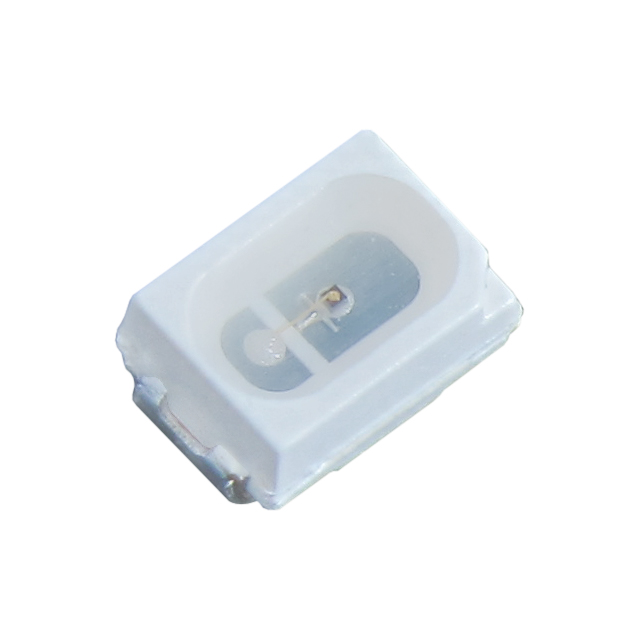

Kingbright AA3021LVBS/D	Surface Mount	465 nm	2.65 V	2.7 mm	2 mm	Oval with Flat Top	470 nm	Blue	2.5 mm	1.5 mm	1.5 mm	2-SMD	Independent	2-SMD J-Lead	Colorless	125 °	50 mcd	Clear	2 mA
