MS3102R20 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CIRCULAR
| Part | Color | Contact Finish - Mating | Shielding | Qualification | Voltage Rating | Connector Type | Orientation | Insert Material | Shell Finish | Fastening Type | Contact Material | Number of Positions | Applications | Primary Material | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Current Rating (Amps) | Shell Material | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Grade | Ingress Protection | Voltage Rating [custom] | Voltage Rating [custom] | Orientation [x] | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Olive Drab | Silver | Unshielded | MIL-DTL-5015 | 500 VAC 700 VDC | Receptacle Female Sockets | N (Normal) | Plastic | Olive Drab Cadmium | Threaded | Copper Alloy | 4 | Aviation Industrial Marine Military | Metal | Flange | -55 C | 125 °C | Panel Mount | 13 A 46 A | Aluminum Alloy | 24 | 20 | Military | Environment Resistant | ||||
 ITT Cannon, LLC | Olive Drab | Silver | MIL-DTL-5015 | Receptacle Male Pins | N (Normal) | Olive Drab Cadmium | Threaded | 4 | Metal | Flange | -55 C | 125 °C | Panel Mount | 41 A | Aluminum Alloy | 4 | 20 | Military | Environment Resistant | 1250 VDC | 900 VAC | |||||||

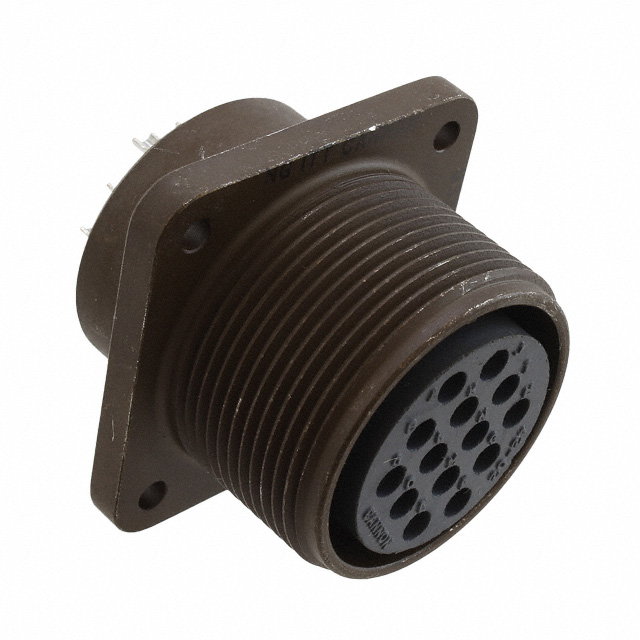

ITT Cannon, LLC | Olive Drab | Silver | MIL-DTL-5015 | 500 VAC 700 VDC | Receptacle Female Sockets | W | Olive Drab Cadmium | Threaded | 14 | Metal | Flange | -55 C | 125 °C | Panel Mount | 22 A | Aluminum Alloy | 27 | 20 | Military | Environment Resistant | ||||||||
ITT Cannon, LLC | Olive Drab | Silver | MIL-DTL-5015 | 500 VAC 700 VDC | Receptacle Male Pins | N (Normal) | Olive Drab Cadmium | Threaded | 7 | Metal | Flange | -55 C | 125 °C | Panel Mount | 41 A | Aluminum Alloy | 20 | 15 | Military | Environment Resistant | ||||||||
ITT Cannon, LLC | Olive Drab | Silver | MIL-DTL-5015 | 500 VAC 700 VDC | Receptacle Male Pins | Olive Drab Cadmium | Threaded | 8 | Metal | Flange | -55 C | 125 °C | Panel Mount | 22 A | Aluminum Alloy | Military | Environment Resistant | X | 20-7 | |||||||||
 ITT Cannon, LLC | Olive Drab | Silver | MIL-DTL-5015 | 500 VAC 700 VDC | Receptacle Female Sockets | N (Normal) | Olive Drab Cadmium | Threaded | 11 | Metal | Flange | -55 C | 125 °C | Panel Mount | 22 A | Aluminum Alloy | 33 | 20 | Military | Environment Resistant | ||||||||
ITT Cannon, LLC | Olive Drab | Silver | MIL-DTL-5015 | 500 VAC 700 VDC | Receptacle Male Pins | N (Normal) | Olive Drab Cadmium | Threaded | 8 | Metal | Flange | -55 C | 125 °C | Panel Mount | 22 A | Aluminum Alloy | Military | Environment Resistant | 20-7 | |||||||||
 ITT Cannon, LLC | Olive Drab | Silver | MIL-DTL-5015 | 500 VAC 700 VDC | Receptacle Female Sockets | N (Normal) | Olive Drab Cadmium | Threaded | 14 | Metal | Flange | -55 C | 125 °C | Panel Mount | 22 A | Aluminum Alloy | 27 | 20 | Military | Environment Resistant | ||||||||
ITT Cannon, LLC | Olive Drab | Silver | MIL-DTL-5015 | Receptacle Male Pins | N (Normal) | Olive Drab Cadmium | Threaded | Metal | Flange | -55 C | 125 °C | Panel Mount | 41 A | Aluminum Alloy | Military | Environment Resistant | 1250 VDC | 900 VAC | 20-3 |
