123-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC DIP SOCKET 28POS GOLD

Part	Termination Post Length	Termination Post Length	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid)	Contact Material - Post	Termination	Contact Material - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Type [custom]	Type [custom]	Type	Contact Finish - Post	Pitch - Post	Pitch - Post	Features	Housing Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Resistance	Material Flammability Rating	Type	Type	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [custom]

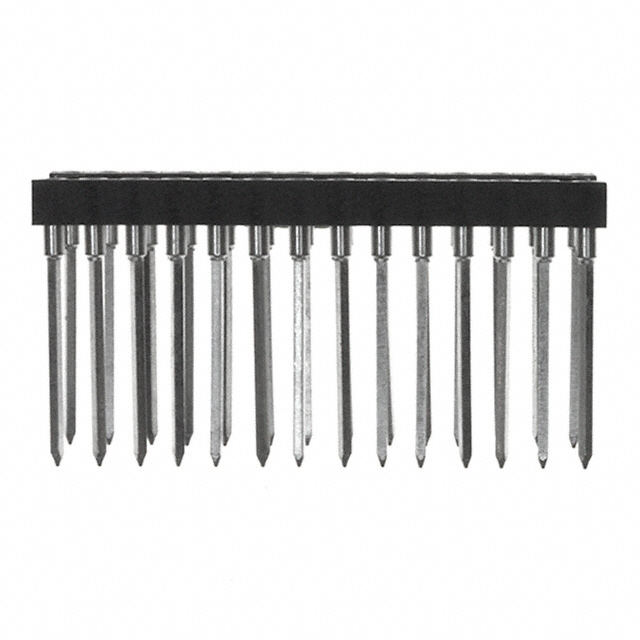

Mill-Max Manufacturing Corp. 123-43-628-41-001000	12.95 mm	0.51 "	3 A	0.1 "	2.54 mm	28	Brass Alloy	Wire Wrap	Beryllium Copper	-55 C	125 °C	200 µin	5.08 µm	Through Hole	15.24 mm	0.6 in	DIP	Tin	0.1 in	2.54 mm	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 123-43-432-41-001000	12.95 mm	0.51 "	3 A	0.1 "	2.54 mm	32	Brass Alloy	Wire Wrap	Beryllium Copper	-55 C	125 °C	200 µin	5.08 µm	Through Hole			DIP	Tin	0.1 in	2.54 mm	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin	10 mOhm	UL94 V-0	0.4 in
Mill-Max Manufacturing Corp. 123-43-328-41-801000	9.4 mm	0.37 in	3 A	0.1 "	2.54 mm	28	Brass Alloy	Wire Wrap	Beryllium Copper	-55 C	125 °C	200 µin	5.08 µm	Through Hole			DIP	Tin	0.1 in	2.54 mm	Decoupling Capacitor Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin	10 mOhm		0.3 in	7.62 mm

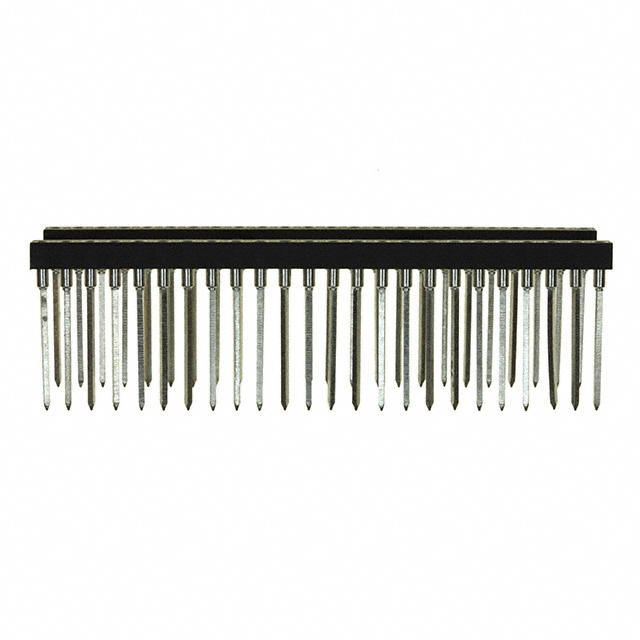

Mill-Max Manufacturing Corp. 123-43-648-41-001000	12.95 mm	0.51 "	3 A	0.1 "	2.54 mm		Brass Alloy	Wire Wrap	Beryllium Copper	-55 C	125 °C	200 µin	5.08 µm	Through Hole	15.24 mm	0.6 in	DIP	Tin	0.1 in	2.54 mm	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin					2	48	24

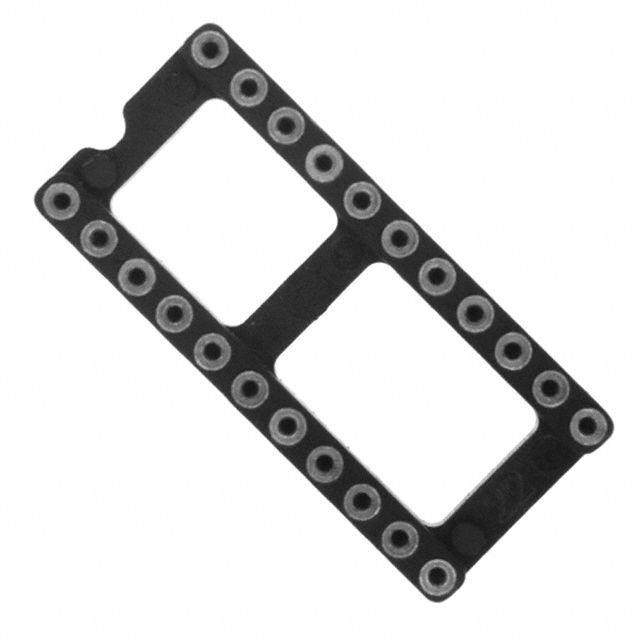

Mill-Max Manufacturing Corp. 123-43-422-41-001000	12.95 mm	0.51 "	3 A	0.1 "	2.54 mm	22	Brass Alloy	Wire Wrap	Beryllium Copper	-55 C	125 °C	200 µin	5.08 µm	Through Hole			DIP	Tin	0.1 in	2.54 mm	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin			0.4 in		11		2

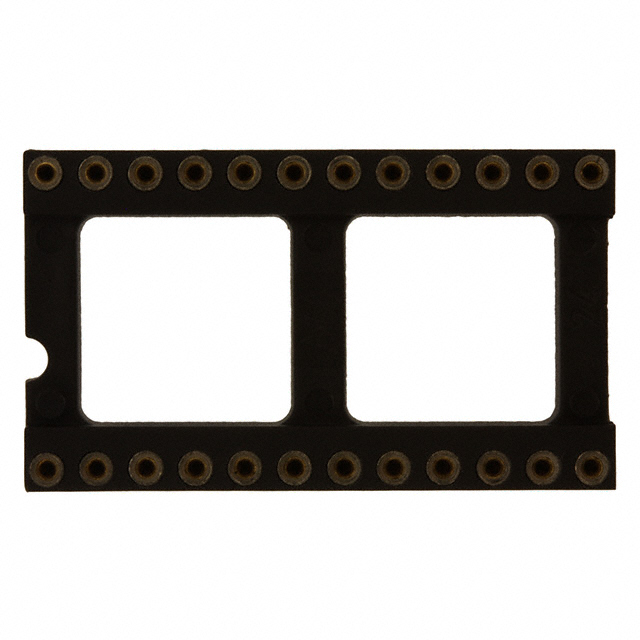

Mill-Max Manufacturing Corp. 123-43-624-41-001000	12.95 mm	0.51 "	3 A	0.1 "	2.54 mm	24	Brass Alloy	Wire Wrap	Beryllium Copper	-55 C	125 °C	200 µin	5.08 µm	Through Hole	15.24 mm	0.6 in	DIP	Tin	0.1 in	2.54 mm	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin					2		12

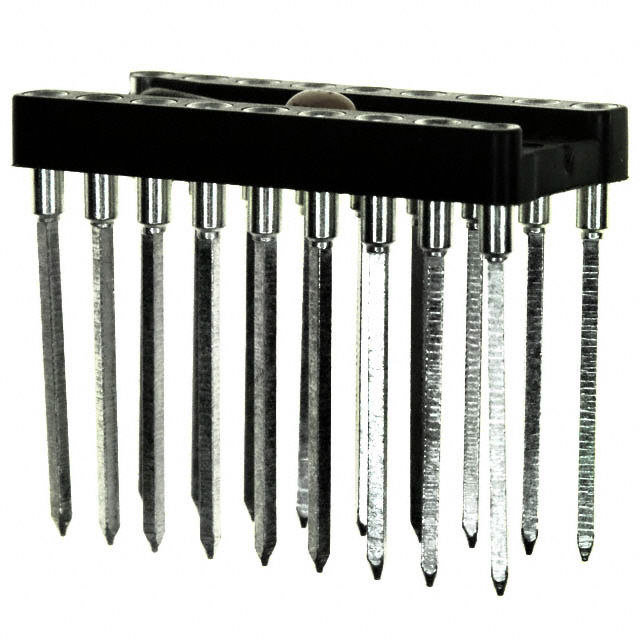

Mill-Max Manufacturing Corp. 123-43-318-41-801000	12.95 mm	0.51 "	3 A	0.1 "	2.54 mm	18	Brass Alloy	Wire Wrap	Beryllium Copper	-55 C	125 °C	200 µin	5.08 µm	Through Hole			DIP	Tin	0.1 in	2.54 mm	Decoupling Capacitor Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin			0.3 in	7.62 mm

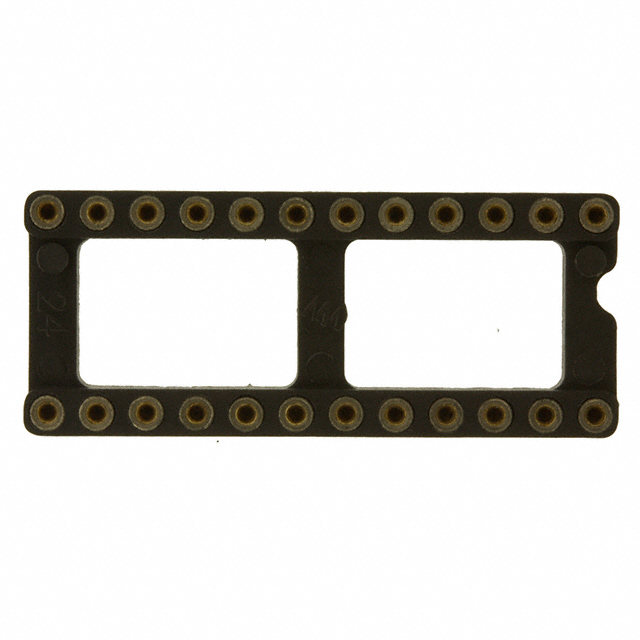

Mill-Max Manufacturing Corp. 123-43-424-41-001000	12.95 mm	0.51 "	3 A	0.1 "	2.54 mm	24	Brass Alloy	Wire Wrap	Beryllium Copper	-55 C	125 °C	200 µin	5.08 µm	Through Hole			DIP	Tin	0.1 in	2.54 mm	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin			0.4 in		2		12
Mill-Max Manufacturing Corp. 123-43-304-41-001000	12.95 mm	0.51 "	3 A	0.1 "	2.54 mm	4 pins	Brass Alloy	Wire Wrap	Beryllium Copper	-55 C	125 °C	200 µin	5.08 µm	Through Hole			DIP	Tin	0.1 in	2.54 mm	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin	10 mOhm	UL94 V-0	0.3 in	7.62 mm				2 x 2
Mill-Max Manufacturing Corp. 123-43-320-41-001000	12.95 mm	0.51 "	3 A	0.1 "	2.54 mm	20	Brass Alloy	Wire Wrap	Beryllium Copper	-55 C	125 °C	200 µin	5.08 µm	Through Hole			DIP	Tin	0.1 in	2.54 mm	Open Frame	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	0.76 Ám	30 Áin			0.3 in	7.62 mm
