29002 Series

Catalog

ELECTROMECHANICAL RELAY 24VDC 2.67KOHM 6A SPDT(6.2X94X80)MM DIN RAIL RELAY MODULE

Part	Coil Resistance	Coil Voltage	Operate Time	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Termination Style	Release Time	Mounting Type	Relay Type	Coil Type	Approval Agency	Coil Current	Switching Voltage	Contact Form	Contact Material	Coil Voltage	Coil Voltage	Coil Voltage
Phoenix Contact 2900299	2.67 kOhms	24 VDC	5 ms	6 A	60 °C	-40 C	Lighted Indicator Socket Included	Spring Terminal	8 ms	DIN Rail	General Purpose	Non Latching	CE UKCA	9 mA	250 VAC 250 VDC	SPDT (1 Form C)	Silver Tin Oxide (AgSnO)

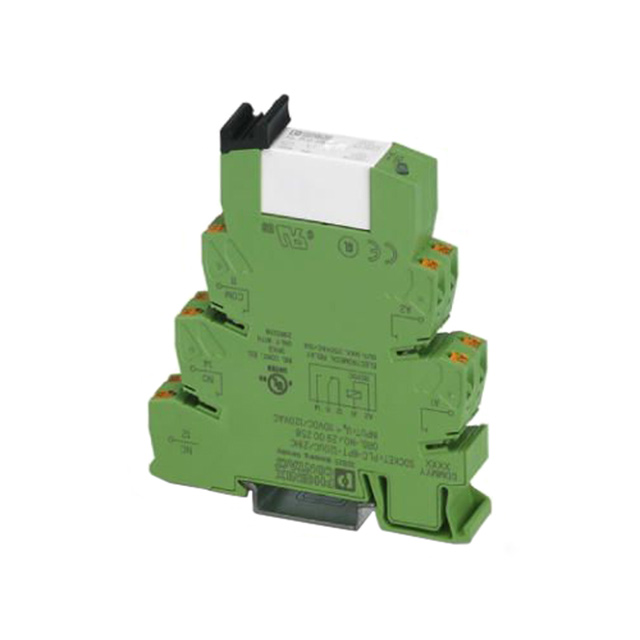

Phoenix Contact 2900296			7 ms	10 A	60 °C	-40 C	Lighted Indicator Socket Included	Spring Terminal	10 ms	DIN Rail	General Purpose	Non Latching	CE UKCA	4.5 mA	250 VAC 250 VDC	SPDT (1 Form C)	Silver Nickel (AgNi)	120VAC/DC
Phoenix Contact 2900297	51.11 kOhms		7 ms	10 A	55 °C	-40 C	Lighted Indicator Socket Included	Spring Terminal	10 ms	DIN Rail	General Purpose	Non Latching	CE UKCA	4.5 mA	250 VAC 250 VDC	SPDT (1 Form C)	Silver Nickel (AgNi)		230 VDC	230 VAC

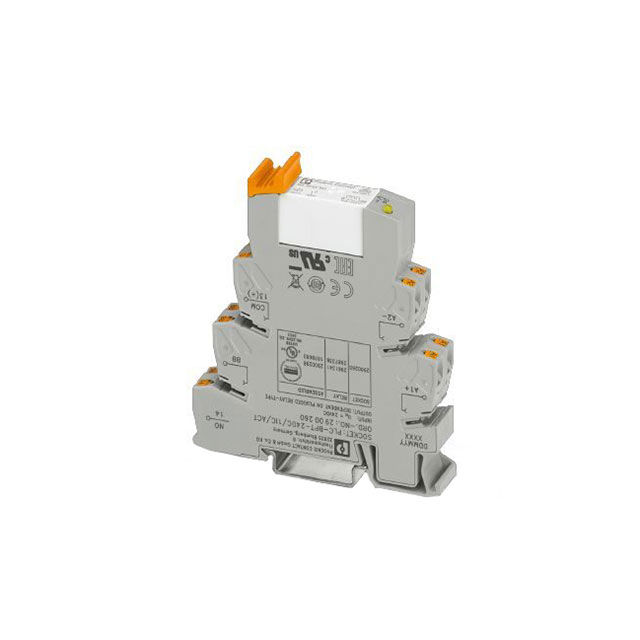

Phoenix Contact 2900298	1333 Ohms	24 VDC	8 ms	10 A	60 °C	-40 C	Lighted Indicator Socket Included	Spring Terminal	10 ms	DIN Rail	General Purpose	Non Latching	CE UKCA	18 mA	250 VAC 250 VDC	SPST-NO (1 Form A)	Silver Tin Oxide (AgSnO)

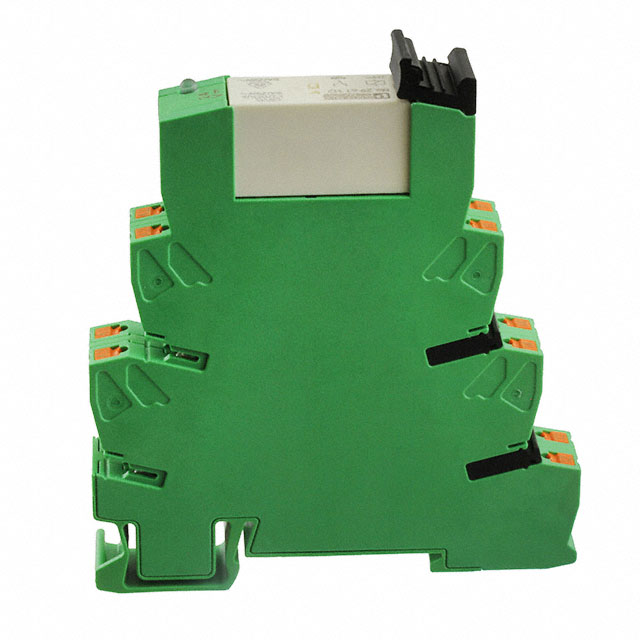

Phoenix Contact 2900291	1333 Ohms	24 VDC	8 ms	10 A	60 °C	-40 C	Lighted Indicator Socket Included	Spring Terminal	10 ms	DIN Rail	General Purpose	Non Latching	CE UKCA	18 mA	250 VAC 250 VDC	SPDT (1 Form C)	Silver Nickel (AgNi)

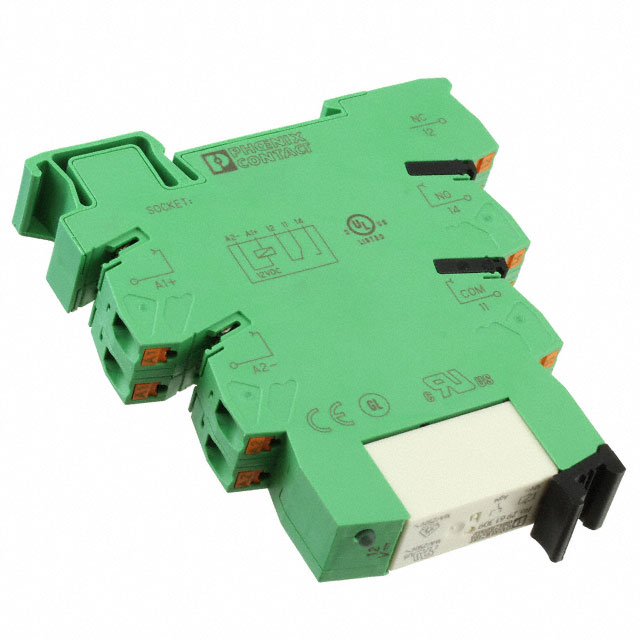

Phoenix Contact 2900290	364 Ohms	12 VDC	8 ms	10 A	60 °C	-40 C	Lighted Indicator Socket Included	Spring Terminal	10 ms	DIN Rail	General Purpose	Non Latching	CE UKCA	33 mA	250 VAC 250 VDC	SPDT (1 Form C)	Silver Nickel (AgNi)

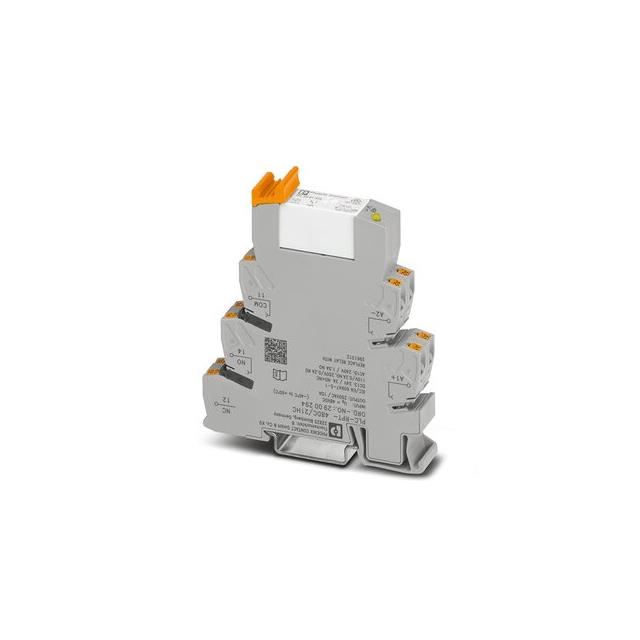

Phoenix Contact 2900294	2.4 kOhms	48 VDC	8 ms	10 A	60 °C	-40 C	Diode Lighted Indicator Socket Included	Spring Terminal	10 ms	DIN Rail	General Purpose	Non Latching	CE UKCA	0.02 A	250 VAC 250 VDC	SPDT (1 Form C)	Silver Nickel (AgNi)
