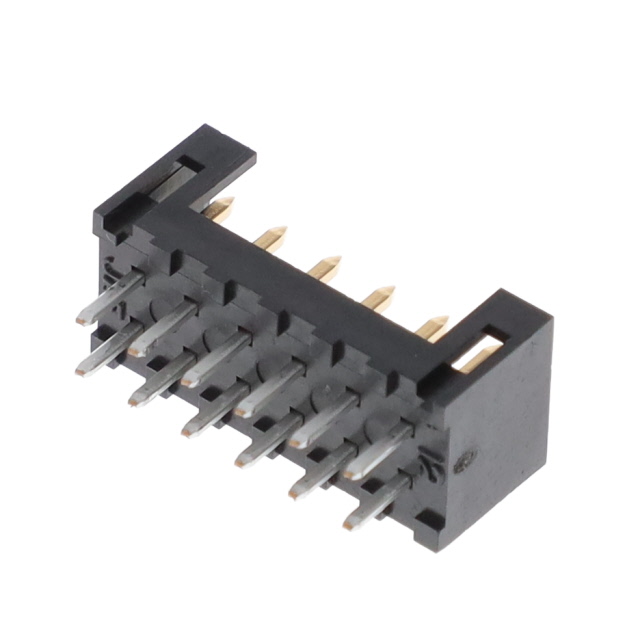

PS-12PLB Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER VERT 12POS 2.54MM
| Part | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Contact Finish - Mating | Number of Positions | Termination | Contact Shape | Mounting Type | Insulation Color | Contact Type | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Overall Contact Length | Overall Contact Length | Style | Connector Type | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Insulation Height | Insulation Height | Shrouding | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 0.1 in | 2.54 mm | Glass Filled Nylon 6/6 Polyamide (PA66) | Copper Alloy | 3.9 µin | 0.099 µm | Push-Pull | Gold | 12 | Solder | Square | Through Hole | Black | Male Pin | 2 | 0.1 " | 2.54 mm | 0.354 " | 9 mm | Board to Cable/Wire | Header | 0.118 in | 3 mm | UL94 V-0 | 3.5 mm | 0.138 in | Tin | 0.256 in | 6.5 mm | Shrouded - 4 Wall | All |
 JAE Electronics | 0.1 in | 2.54 mm | Nylon 6/6 Polyamide (PA66) | Copper Alloy | 3.9 µin | 0.099 µm | Push-Pull | Gold | 12 | Solder | Square | Right Angle Through Hole | Black | Male Pin | 2 | 0.1 " | 2.54 mm | Board to Cable/Wire | Header | 0.118 in | 3 mm | UL94 V-0 | 3.5 mm | 0.138 in | Tin | 0.287 in | 7.3 mm | Shrouded - 4 Wall | All |
