305-036 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows [custom] | Contact Type | Read Out | Pitch | Pitch | Number of Positions | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Gender | Termination | Color | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

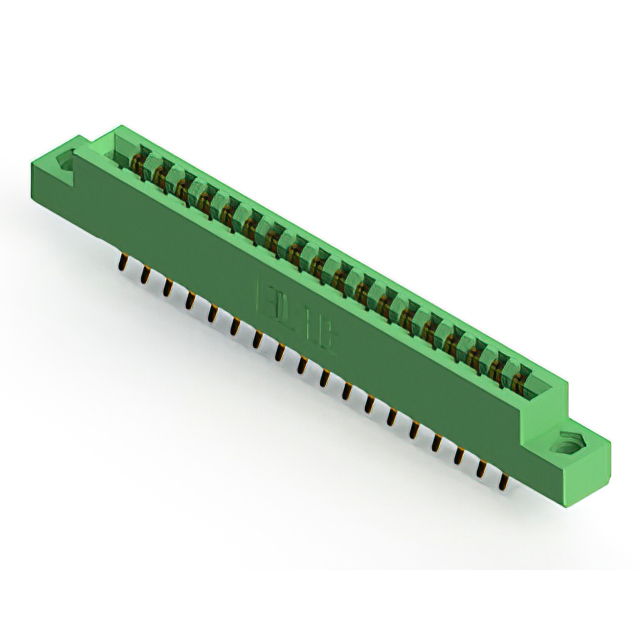

 EDAC Inc. | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 3.96 mm | 0.156 in | 36 | Non Specified - Dual Edge | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 18 | Female | Solder | Green | Panel Mount Through Hole | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | |

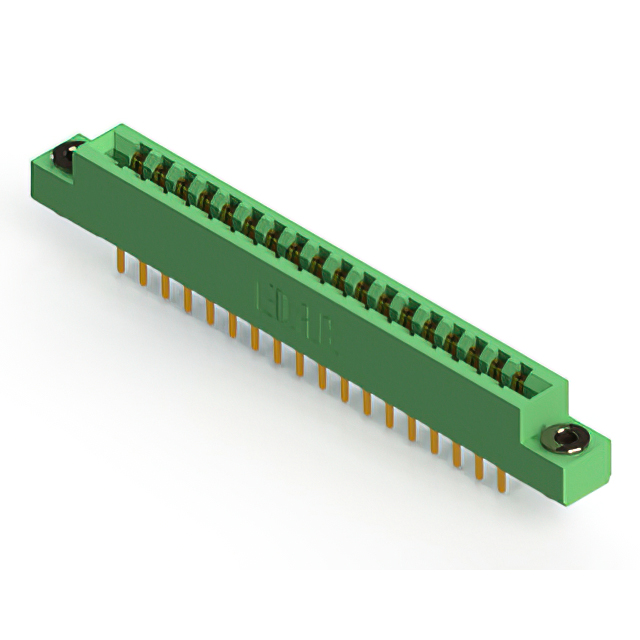

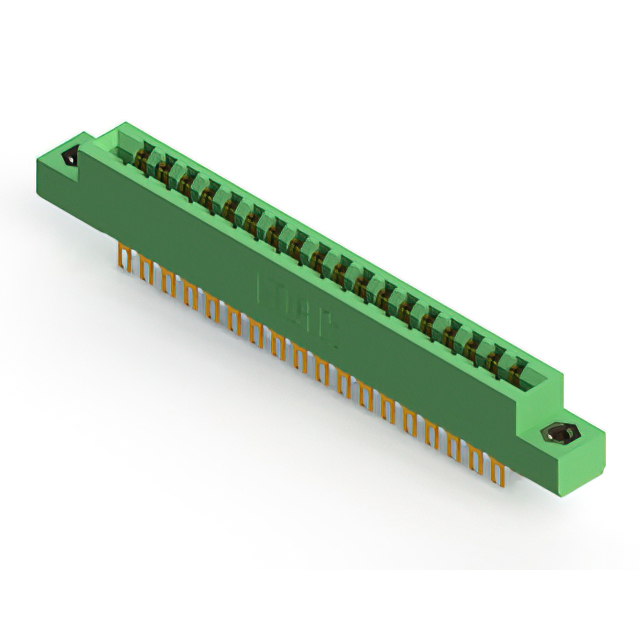

 EDAC Inc. | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 3.96 mm | 0.156 in | 36 | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | 18 | Female | Solder Eyelet(s) | Green | Panel Mount | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | |||

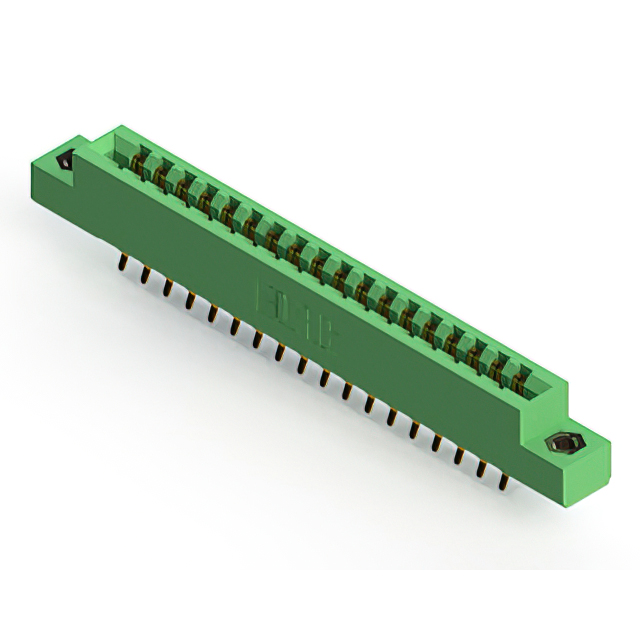

 EDAC Inc. | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 3.96 mm | 0.156 in | 36 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 18 | Female | Solder | Green | Board Edge Straddle Mount | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Card Extender Card Guides | ||

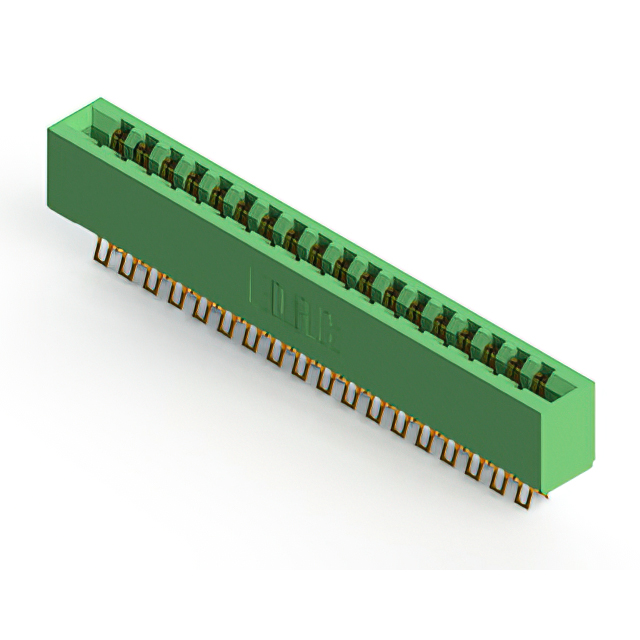

 EDAC Inc. | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 3.96 mm | 0.156 in | 36 | Non Specified - Dual Edge | 18 | Female | Solder | Green | Board Edge Straddle Mount | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Card Extender | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 3.96 mm | 0.156 in | 36 | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | 18 | Female | Solder | Green | Board Edge Straddle Mount | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Card Extender | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 3.96 mm | 0.156 in | 36 | Non Specified - Dual Edge | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 18 | Female | Solder | Green | Board Edge Straddle Mount | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Card Extender |

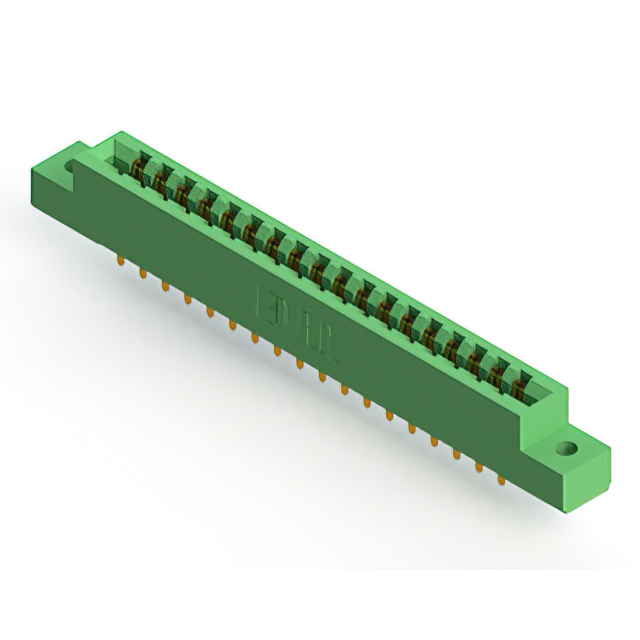

 EDAC Inc. | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 3.96 mm | 0.156 in | 36 | Non Specified - Dual Edge | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 18 | Female | Solder | Green | Panel Mount Through Hole | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | |

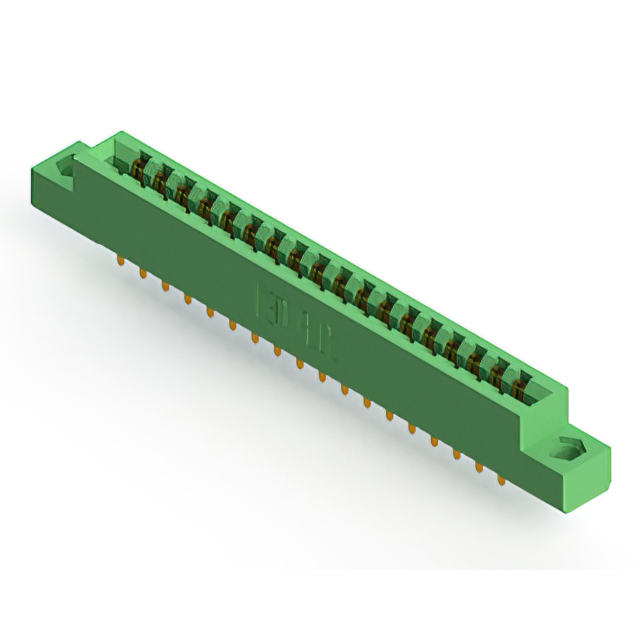

 EDAC Inc. | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 3.96 mm | 0.156 in | 36 | Non Specified - Dual Edge | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 18 | Female | Solder | Green | Panel Mount Through Hole | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 3.96 mm | 0.156 in | 36 | Non Specified - Dual Edge | 18 | Female | Solder | Green | Board Edge Straddle Mount | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Card Extender | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Semi Bellows | Dual | 3.96 mm | 0.156 in | 36 | Non Specified - Dual Edge | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 18 | Female | Solder | Green | Panel Mount Through Hole | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Gold | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy |
