TLV561 Series

Catalog

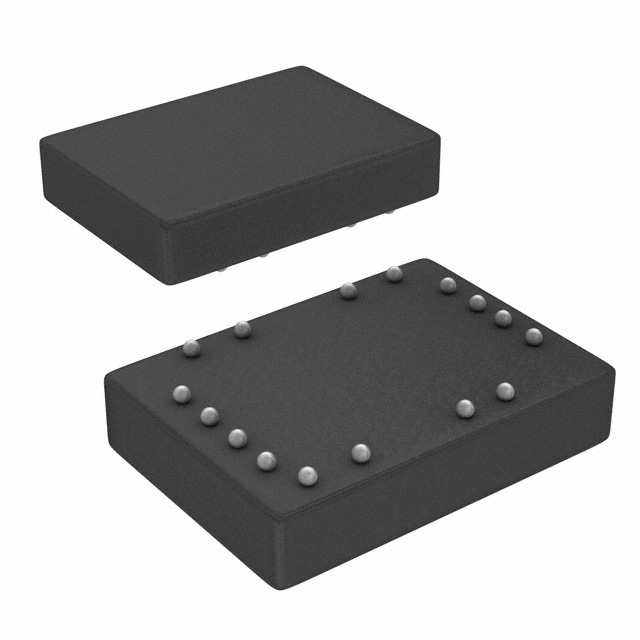

IC DAC 12BIT V-OUT 16WCSP

Part	Data Interface	Output Type	Architecture	Voltage - Supply, Analog	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Number of D/A Converters	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	INL/DNL (LSB)	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital	Voltage - Supply, Digital [Max]	Mounting Type	Settling Time	Number of Bits	Reference Type	Package / Case	Package / Case [custom]	Package / Case	Package / Case [x]	Package / Case [y]	Package / Case [y]
Texas Instruments TLV5614IYZR	SPI	Voltage - Buffered	String DAC	5 V	3.3 V	2.7 V	4	16-WCSP	85 °C	-40 °C	0.5 LSB 1.5 LSB	2.7 V	5 V	3.3 V	Surface Mount	20 µs	12 bits	External	16-UFBGA WLCSP
Texas Instruments TLV5616CDGKR	SPI	Voltage - Buffered	String DAC	5 V	3.3 V	2.7 V			70 °C	0 °C	0.5 LSB 1.9 LSB	2.7 V	5 V	3.3 V	Surface Mount	20 µs	12 bits	External	8-MSOP 8-TSSOP	0.118 in	3 mm
Texas Instruments TLV5610IYZT	SPI	Voltage - Buffered	String DAC	5 V	3.3 V	2.7 V	8	20-DSBGA	85 °C	-40 °C	0.5 LSB 2 LSB	2.7 V	5 V	3.3 V	Surface Mount	7 µs	12 bits	External	20-WFBGA DSBGA
Texas Instruments TLV5614CDR	SPI	Voltage - Buffered	String DAC	5 V	3.3 V	2.7 V	4	16-SOIC	70 °C	0 °C	0.5 LSB 1.5 LSB	2.7 V	5 V	3.3 V	Surface Mount	20 µs	12 bits	External	16-SOIC			0.154 in	3.9 mm
Texas Instruments TLV5619IPWRG4	Parallel	Voltage - Buffered	String DAC	5 V	3.3 V	2.7 V		20-TSSOP	85 °C	-40 °C	0.4 LSB 1.5 LSB	2.7 V	5 V	3.3 V	Surface Mount	3 µs	12 bits	External	20-TSSOP			0.173 in	4.4 mm
Texas Instruments TLV5613CPWR	Parallel	Voltage - Buffered	String DAC	5 V	3.3 V	2.7 V		20-TSSOP	70 °C	0 °C	0.4 LSB 1.5 LSB	2.7 V	5 V	3.3 V	Surface Mount	7 µs	12 bits	External	20-TSSOP			0.173 in	4.4 mm
Texas Instruments TLV5619QDW	Parallel	Voltage - Buffered	String DAC	5 V	3.3 V	2.7 V		20-SOIC	125 °C	-40 °C	0.4 LSB 1.5 LSB	2.7 V	5 V	3.3 V	Surface Mount	3 µs	12 bits	External	20-SOIC				0.295 in	7.5 mm
Texas Instruments TLV5613IDWR	Parallel	Voltage - Buffered	String DAC	5 V	3.3 V	2.7 V		20-SOIC	85 °C	-40 °C	0.4 LSB 1.5 LSB	2.7 V	5 V	3.3 V	Surface Mount	7 µs	12 bits	External	20-SOIC				0.295 in	7.5 mm
Texas Instruments TLV5610IYE	SPI	Voltage - Buffered	String DAC	5 V	3.3 V	2.7 V	8	Diesale	85 °C	-40 °C	0.5 LSB 2 LSB	2.7 V	5 V	3.3 V	Surface Mount	7 µs	12 bits	External	Die
Texas Instruments TLV5613CPWRG4	Parallel	Voltage - Buffered	String DAC	5 V	3.3 V	2.7 V		20-TSSOP	70 °C	0 °C	0.4 LSB 1.5 LSB	2.7 V	5 V	3.3 V	Surface Mount	7 µs	12 bits	External	20-TSSOP			0.173 in	4.4 mm
