CCL010 Series
Manufacturer: Essentra Components
Beta
⌘K

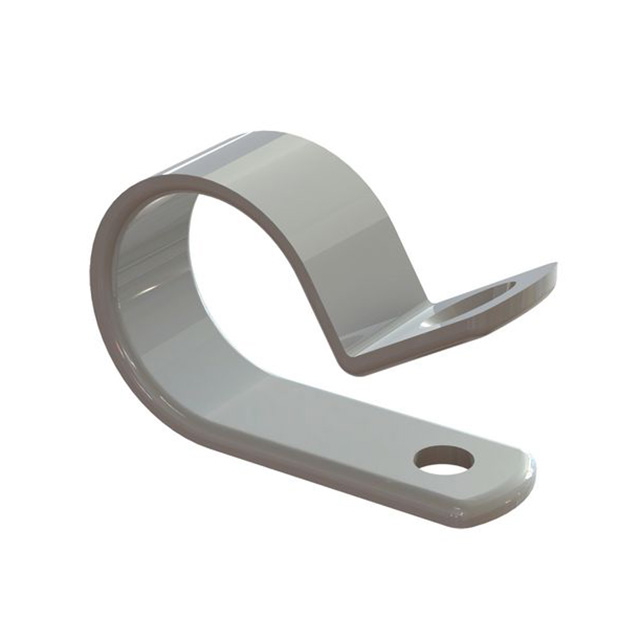

FASTENER, SCREW MOUNT CABLE CLAMP, 27 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 12 MM
| Part | Screw Size | Bundle Center to Mounting Center | Bundle Center to Mounting Center | Material Thickness | Material Thickness | Color | Opening Size | Opening Size | Width [y] | Width [y] | Material | Material Flammability Rating | Panel Hole Size | Panel Hole Size | Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | #8 (M4) | 0.945 in | 24 mm | 0.063 in | 1.6 mm | Natural | 26.98 mm | 1.062 in | 12 mm | 0.472 " | Polyamide (PA66) Nylon 6/6 | UL94 V-2 | 4.6 mm | 0.181 in | Clamp P-Type | Fastener |
