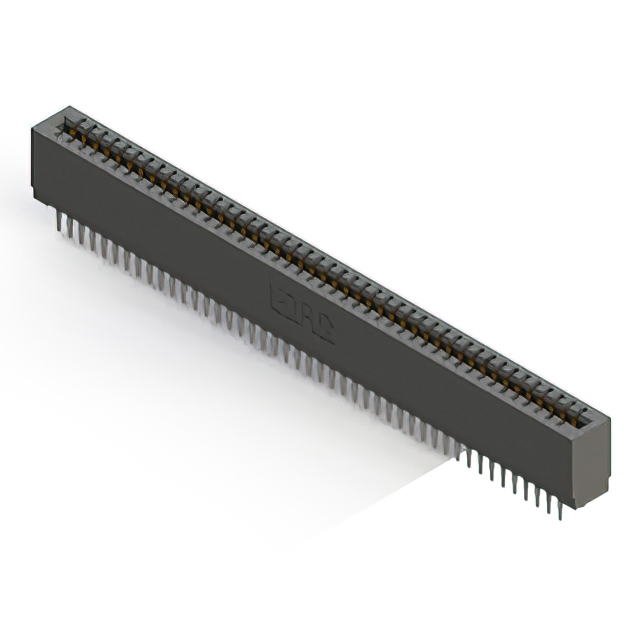

725-090 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 90POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Mounting Type	Contact Type	Contact Material	Termination	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Card Type	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Read Out	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Gender
EDAC Inc. 725-090-545-201	2	Polyester Thermoplastic	Through Hole	Cantilever	Copper Alloy	Press-Fit Wire Wrap	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	2	-40 C	105 ░C	90	Dual	Gold	Black	30 Áin	0.76 Ám	45	Female
EDAC Inc. 725-090-520-201	2	Polyester Thermoplastic	Through Hole	Cantilever	Copper Alloy	Press-Fit	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	2	-40 C	105 ░C	90	Dual	Gold	Black	30 Áin	0.76 Ám	45	Female
EDAC Inc. 725-090-525-201	2	Polyester Thermoplastic	Through Hole	Cantilever	Copper Alloy	Press-Fit	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	2	-40 C	105 ░C	90	Dual	Gold	Black	30 Áin	0.76 Ám	45	Female
EDAC Inc. 725-090-560-201	2	Polyester Thermoplastic	Through Hole	Cantilever Make Before Break	Copper Alloy	Press-Fit	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	2	-40 C	105 ░C	90	Dual	Gold	Black	30 Áin	0.76 Ám	45	Female
