052806 Series

Manufacturer: Molex

Catalog

CONN FPC VERT 19POS 1MM PCB

Part	Number of Positions	Cable End Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Flat Flex Type	Mounting Type	FFC, FCB Thickness	Pitch [x]	Pitch [x]	Current Rating (Amps)	Connector/Contact Type	Height Above Board	Height Above Board	Voltage Rating	Mating Cycles	Material Flammability Rating	Contact Material	Contact Finish
Molex 0528061910	19	Straight	-20 C	80 C	Kinked Pin	FPC	Through Hole	0.3 mm	0.039 in	1 mm	0.5 A	Contacts Vertical - 1 Sided	0.213 in	5.4 mm	50 V	10	UL94 V-0	Phosphor Bronze	Tin
Molex 0528062010	20	Straight	-20 C	80 C	Kinked Pin	FPC	Through Hole	0.3 mm	0.039 in	1 mm	0.5 A	Contacts Vertical - 1 Sided	0.213 in	5.4 mm	50 V	10	UL94 V-0	Phosphor Bronze	Tin
Molex 0528061110	11	Straight	-20 C	80 C	Kinked Pin	FPC	Through Hole	0.3 mm	0.039 in	1 mm	0.5 A	Contacts Vertical - 1 Sided	0.213 in	5.4 mm	50 V	10	UL94 V-0	Phosphor Bronze	Tin
Molex 0528062910	29	Straight	-20 C	80 C	Kinked Pin	FPC	Through Hole	0.3 mm	0.039 in	1 mm	0.5 A	Contacts Vertical - 1 Sided	0.213 in	5.4 mm	50 V	10	UL94 V-0	Phosphor Bronze	Tin

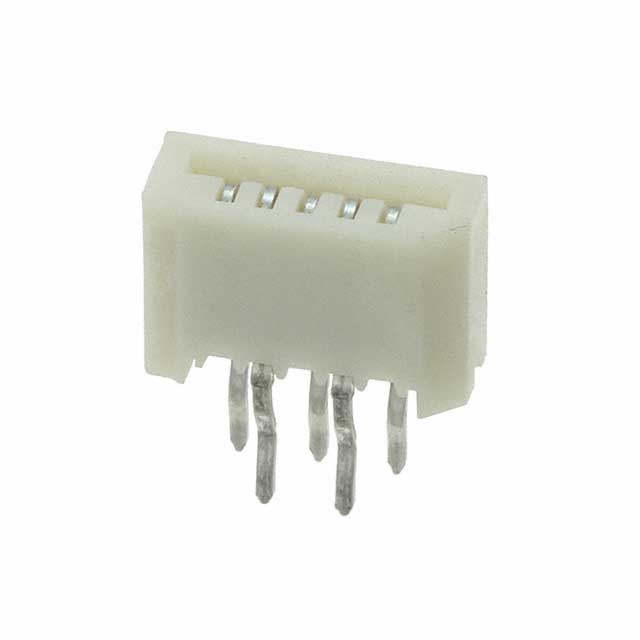

Molex 0528060510		Straight	-20 C	80 C	Kinked Pin	FPC	Through Hole	0.3 mm	0.039 in	1 mm	0.5 A	Contacts Vertical - 1 Sided	0.213 in	5.4 mm	50 V	10	UL94 V-0	Phosphor Bronze	Tin
Molex 0528061710		Straight	-20 C	80 C	Kinked Pin	FPC	Through Hole	0.3 mm	0.039 in	1 mm	0.5 A	Contacts Vertical - 1 Sided	0.213 in	5.4 mm	50 V	10	UL94 V-0	Phosphor Bronze	Tin
Molex 0528060710	7	Straight	-20 C	80 C	Kinked Pin	FPC	Through Hole	0.3 mm	0.039 in	1 mm	0.5 A	Contacts Vertical - 1 Sided	0.213 in	5.4 mm	50 V	10	UL94 V-0	Phosphor Bronze	Tin
Molex 0528062610	26	Straight	-20 C	80 C	Kinked Pin	FPC	Through Hole	0.3 mm	0.039 in	1 mm	0.5 A	Contacts Vertical - 1 Sided	0.213 in	5.4 mm	50 V	10	UL94 V-0	Phosphor Bronze	Tin

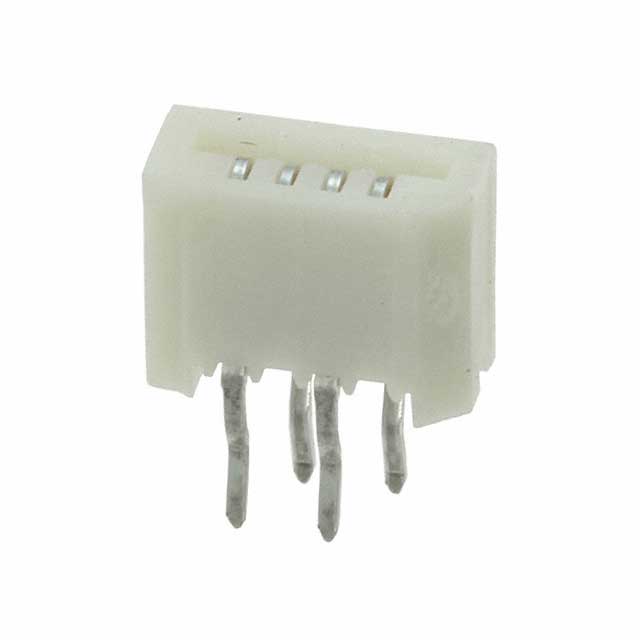

Molex 0528060410	4	Straight	-20 C	80 C	Kinked Pin	FPC	Through Hole	0.3 mm	0.039 in	1 mm	0.5 A	Contacts Vertical - 1 Sided	0.213 in	5.4 mm	50 V	10	UL94 V-0	Phosphor Bronze	Tin

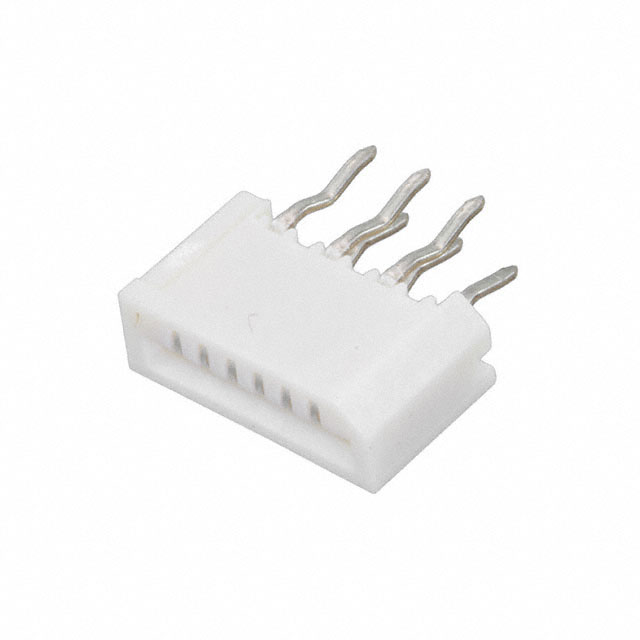

Molex 0528060610	6	Straight	-20 C	80 C	Kinked Pin	FPC	Through Hole	0.3 mm	0.039 in	1 mm	0.5 A	Contacts Vertical - 1 Sided	0.213 in	5.4 mm	50 V	10	UL94 V-0	Phosphor Bronze	Tin
