1827864 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

DYNAMIC 1200D REC HSG 4P X BLACK

Part	Fastening Type	Contact Termination	Row Spacing	Row Spacing	Number of Rows	Pitch [x]	Pitch [x]	Contact Type	Insulation Material	Mounting Type	Connector Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Note	Features

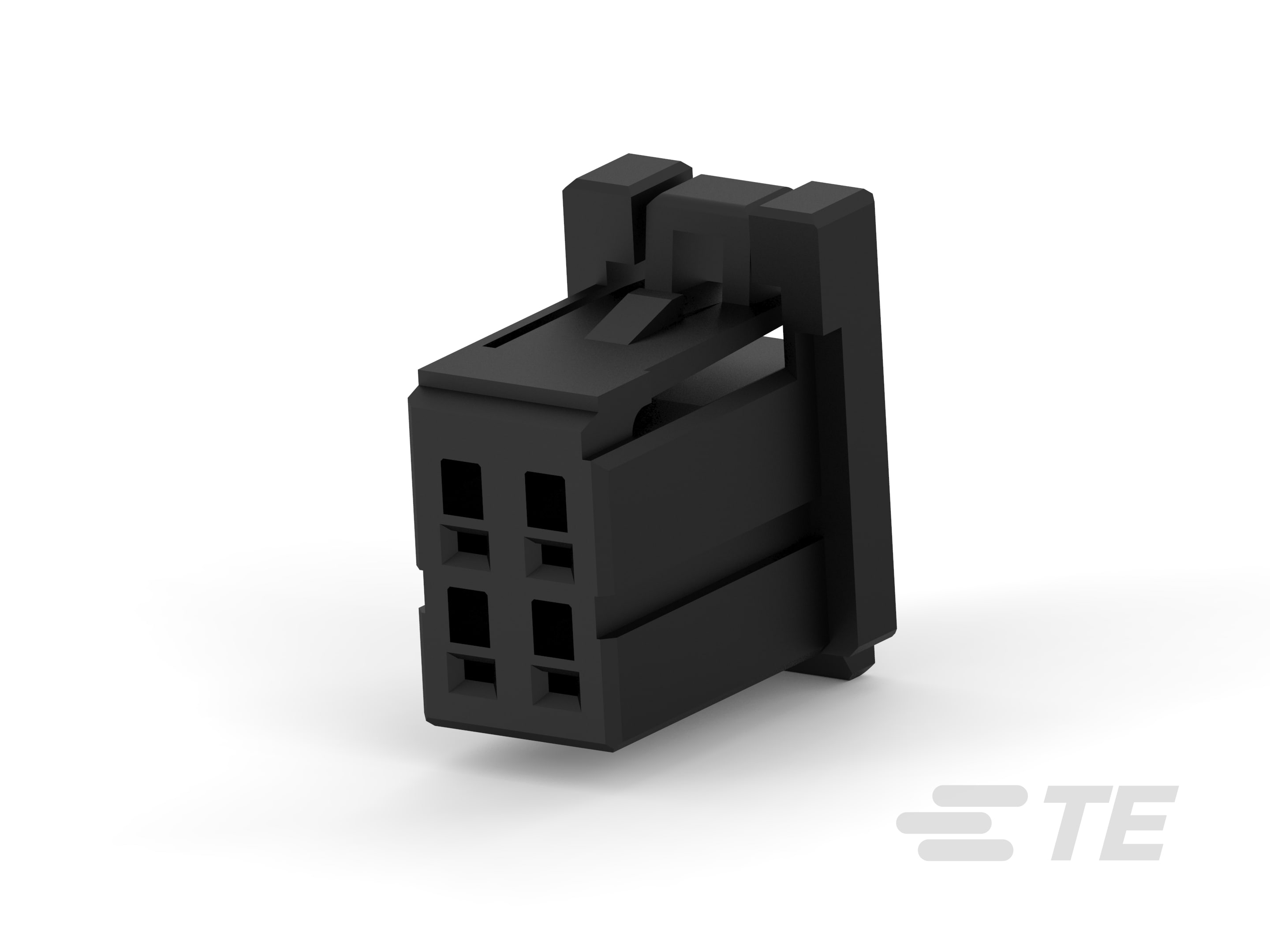

TE Connectivity Raychem Cable Protection 9-1827864-2	Latch Holder	Crimp	0.13 in	3.3 mm	2	0.098 in	2.5 mm	Female Socket	Glass Filled Polyester Thermoplastic	Free Hanging (In-Line)	Receptacle	Black	105 ░C	-55 °C	4

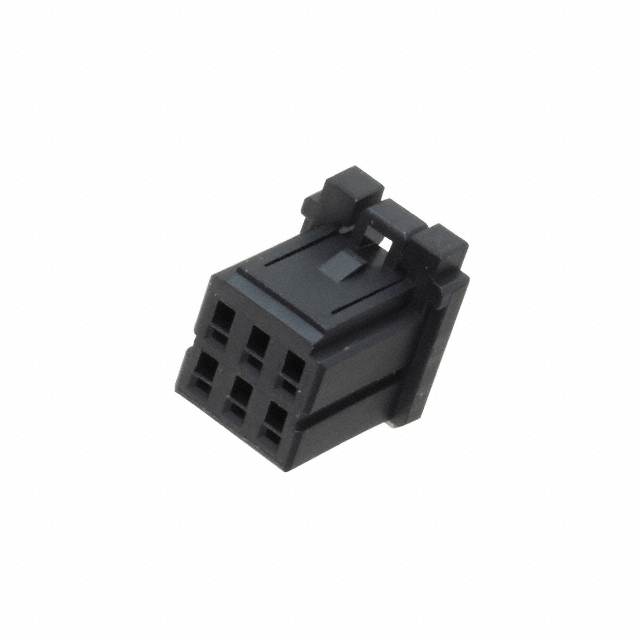

TE Connectivity Raychem Cable Protection 9-1827864-3	Locking Ramp	Crimp	0.13 in	3.3 mm	2	0.098 in	2.5 mm	Female Socket	Polyester Glass Filled	Free Hanging (In-Line)	Receptacle	Black	105 ░C	-55 °C	6	Contacts Not Included
TE Connectivity Raychem Cable Protection 1-1827864-0	Latch Lock	Crimp	0.13 in	3.3 mm	2	0.098 in	2.5 mm	Female Socket	Glass Filled Polyester Thermoplastic	Free Hanging (In-Line)	Receptacle	Black	105 ░C	-55 °C	20	Contacts Not Included	Polarizing Key
TE Connectivity Raychem Cable Protection 1-1827864-4	Latch Lock	Crimp	0.13 in	3.3 mm	2	0.098 in	2.5 mm	Female Socket	Glass Filled Polyester Thermoplastic	Free Hanging (In-Line)	Receptacle	Black	105 ░C	-55 °C	8	Contacts Not Included	Polarizing Key

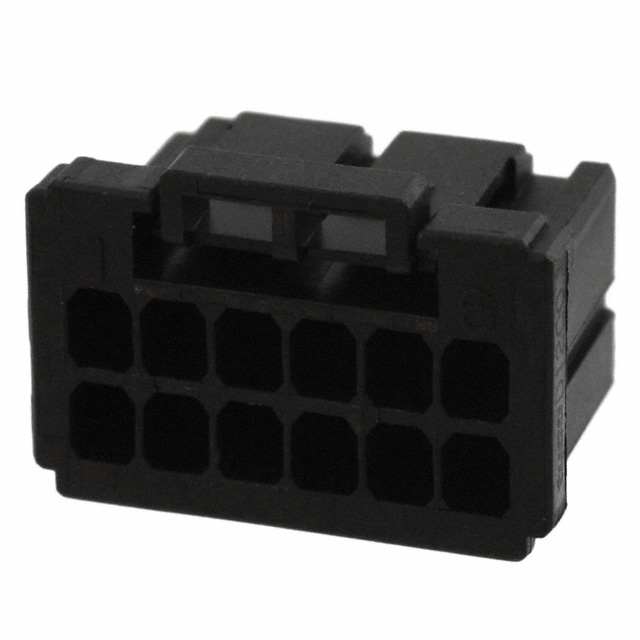

TE Connectivity Raychem Cable Protection 1-1827864-6	Latch Lock	Crimp	0.13 in	3.3 mm	2	0.098 in	2.5 mm	Female Socket	Glass Filled Polyester Thermoplastic	Free Hanging (In-Line)	Receptacle	Black	105 ░C	-55 °C	12	Contacts Not Included	Polarizing Key

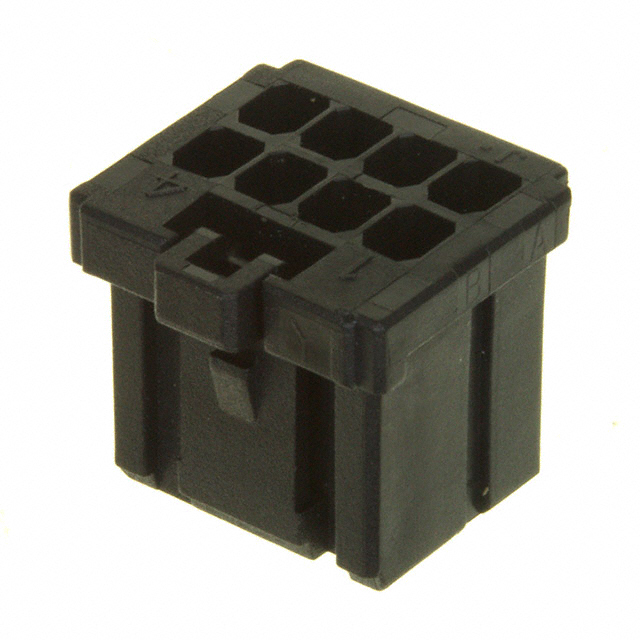

TE Connectivity Raychem Cable Protection 2-1827864-4	Latch Lock	Crimp	0.13 in	3.3 mm	2	0.098 in	2.5 mm	Female Socket	Glass Filled Polyester Thermoplastic	Free Hanging (In-Line)	Receptacle	Black	105 ░C	-55 °C	8	Contacts Not Included	Polarizing Key
