THB2048 Series
Manufacturer: Delta Electronics
Beta
⌘K

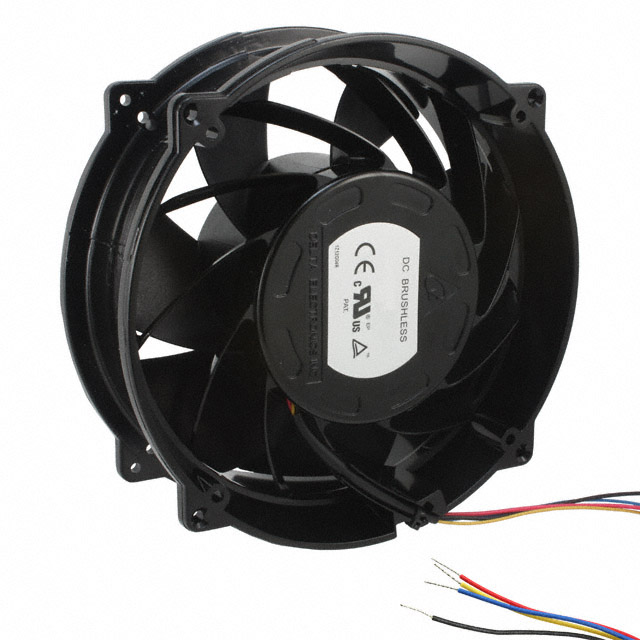

FAN AXIAL 208X70MM 48VDC WIRE
| Part | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Lifetime @ Temp. | Material - Frame | Voltage - Rated | Approval Agency | Fan Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension | Size / Dimension [diameter] | Width [x] | Static Pressure | Static Pressure | Weight | Weight | RPM | Bearing Type | Power (Watts) | Air Flow | Air Flow | Termination | Noise | Weight [custom] | Weight [custom] | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 4.8 A | 75 VDC | 36 VDC | Plastic | 70000 Hrs | Aluminum | 48 VDC | CE cURus TUV | Tubeaxial | Locked Rotor Protection PWM Control Speed Sensor (Tach) | -20 ░C | 70 °C | Round | 208 mm | 70 mm | 2.69 in H2O | 670.1 Pa | 1.6 kg | 3.5 lbs | 5800 RPM | Ball | 230.4 W | 23.17 m³/min | 827.4 CFM | 4 Wire Leads | 73.6 dB(A) | |||
 Delta Electronics | |||||||||||||||||||||||||||||
Delta Electronics | 4.2 A | 60 V | 36 VDC | Plastic | 40 °C 50000 Hrs | Aluminum | 48 VDC | CE cURus TUV | Tubeaxial | Auto Restart Locked Rotor Protection PWM Control Speed Sensor (Tach) | -10 °C | 70 °C | Round | 208 mm | 4.141 in H2O | 1031.4 Pa | 7700 RPM | Ball | 201.6 W | 19.33 m³/min | 690.3 CFM | 4 Wire Leads | 78 dB(A) | 2.9 lbs | 1.3 kg | 50.8 mm |
