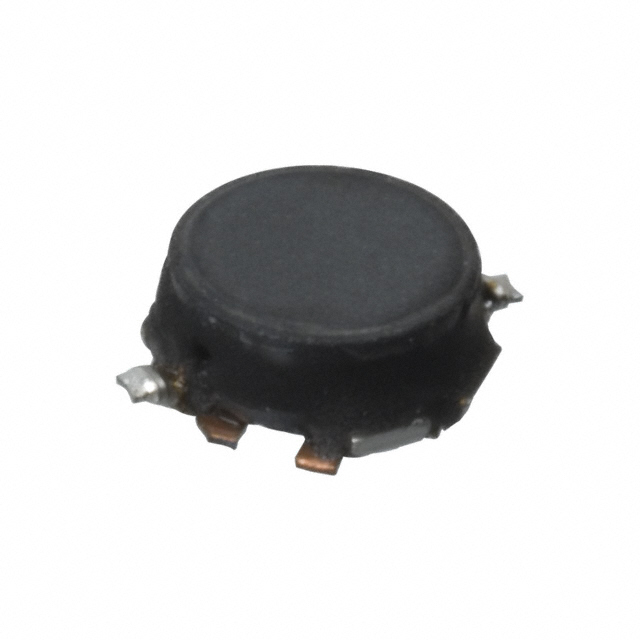

ELC-3GN Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 8.2UH 540MA 410MOHM SM
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] [z] | Tolerance | Inductance Frequency - Test | Mounting Type | Current Rating (Amps) | Package / Case | Inductance | Shielding | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 0.126 in | 3.2 mm | 0.126 " | 3.2 mm | 1.5 mm | 0.059 " | 30 % | 100 kHz | Surface Mount | 0.54 A | Nonstandard | 8.2 µH | Unshielded | 410 mOhm |
Panasonic Industrial Automation Sales | 0.126 in | 3.2 mm | 0.126 " | 3.2 mm | 1.5 mm | 0.059 " | 30 % | 100 kHz | Surface Mount | 1.2 A | Nonstandard | 1.6 µH | Unshielded | 83 mOhm |
Panasonic Industrial Automation Sales | 0.126 in | 3.2 mm | 0.126 " | 3.2 mm | 1.5 mm | 0.059 " | 30 % | 100 kHz | Surface Mount | 1 A | Nonstandard | 2.2 µH | Unshielded | 100 mOhm |
Panasonic Industrial Automation Sales | 0.126 in | 3.2 mm | 0.126 " | 3.2 mm | 1.5 mm | 0.059 " | 20 % | 100 kHz | Surface Mount | Nonstandard | 68 µH | Unshielded | 3 Ohm |
