CH2LBS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB DPDT 1A 125V
| Part | Electrical Life | Color - Actuator/Cap | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Ingress Protection | Termination Style | Actuator Type | Actuator Marking | Switch Function | Illumination Type, Color | Features | Circuit | Mounting Type | Type | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

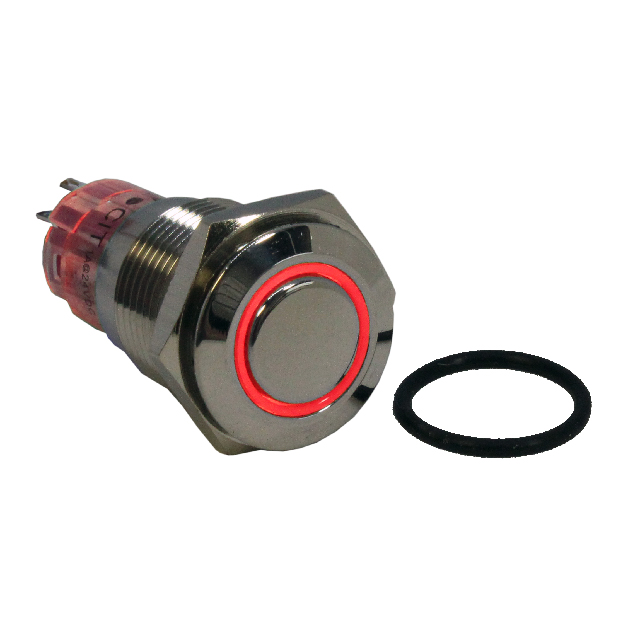

 CIT Relay and Switch | 30000 Cycles | Silver | -25 °C | 70 °C | 24 V | 1 A | 16 mm | IP67 - Dust Tight Waterproof | Solder Lug | Button Flush Round | No Marking | On-On | LED Red | Stainless Steel | DPDT | Panel Mount Front | Anti-Vandal Illuminated | 125 V |
 CIT Relay and Switch | 30000 Cycles | Silver | -25 °C | 70 °C | 24 V | 1 A | 16 mm | IP67 - Dust Tight Waterproof | Solder Lug | Button Flush Round | No Marking | On-On | Green/Red LED | Stainless Steel | DPDT | Panel Mount Front | Anti-Vandal Illuminated | 125 V |

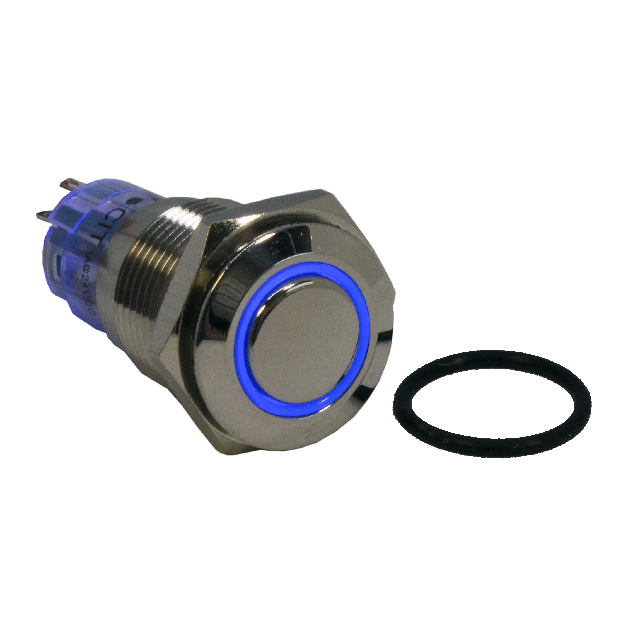

 CIT Relay and Switch | 30000 Cycles | Silver | -25 °C | 70 °C | 24 V | 1 A | 16 mm | IP67 - Dust Tight Waterproof | Solder Lug | Button Flush Round | No Marking | On-On | Blue LED | Stainless Steel | DPDT | Panel Mount Front | Anti-Vandal Illuminated | 125 V |
