THS3120 Series

Catalog

SINGLE, LOW NOISE, HIGH OUTPUT DRIVE, 475MA CURRENT-FEEDBACK AMPLIFIER WITH POWER-DOWN

Part	Current - Output / Channel	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply Span (Min) [Min]	Current - Supply	Number of Circuits	Current - Input Bias	Voltage - Input Offset	Mounting Type	-3db Bandwidth	Package / Case	Package / Case [custom]	Slew Rate	Amplifier Type	Voltage - Supply Span (Max) [Max]	Current - Supply (Main IC)	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Channels per IC	Utilized IC / Part	Supplied Contents	Contents	Output Type	Board Type	Package / Case [y]	Package / Case [x]
Texas Instruments THS3120CDGN	490 mA	8-HVSSOP	70 °C	0 °C	10 V	7 mA	1	3 µA	2 mV	Surface Mount	130 MHz	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	1700 V/µs	Current Feedback	30 V

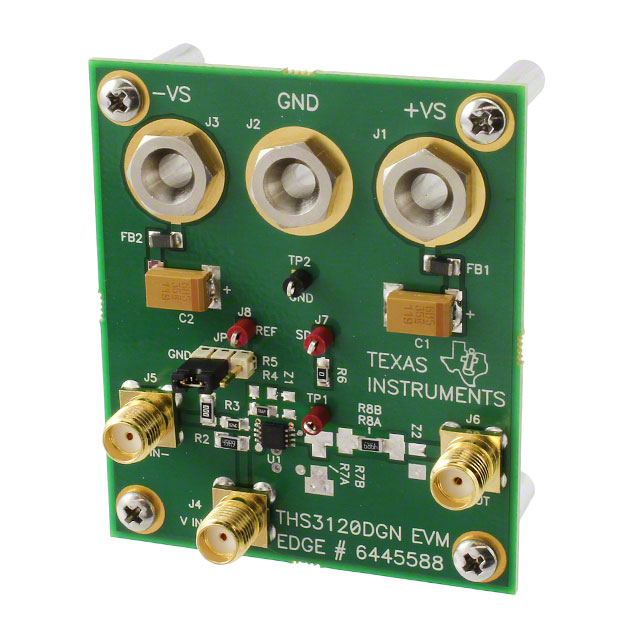

Texas Instruments THS3120EVM	490 mA										130 MHz			1700 V/µs	Current Feedback		7 mA	-5 V 10 V	15 V 30 V	1 - Single	THS3120	Board(s)	Board(s)	Single-Ended	Fully Populated
Texas Instruments THS3120CDGNR	490 mA	8-HVSSOP	70 °C	0 °C	10 V	7 mA	1	3 µA	2 mV	Surface Mount	130 MHz	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	1700 V/µs	Current Feedback	30 V
Texas Instruments THS3120ID	490 mA	8-SOIC	85 °C	-40 °C	10 V	7 mA	1	3 µA	2 mV	Surface Mount	130 MHz	8-SOIC		1700 V/µs	Current Feedback	30 V										3.9 mm	0.154 in
Texas Instruments THS3120CDGNG4	490 mA	8-HVSSOP	70 °C	0 °C	10 V	7 mA	1	3 µA	2 mV	Surface Mount	130 MHz	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	1700 V/µs	Current Feedback	30 V
