XW5T-S16 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

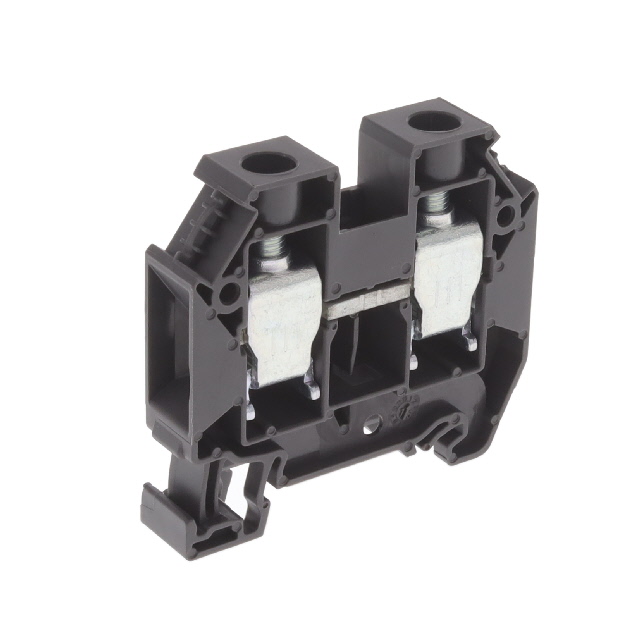

TERMBLK SCREW 16MM 1:1 1TIER
| Part | Terminal - Width [y] | Material - Insulation | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Material Flammability Rating | Number of Levels | Stripping Length | Voltage - UL | Number of Positions | Type | Color | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Termination Style | Current - IEC | Current - UL | Voltage - IEC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 12 mm | Nylon Polyamide (PA) | 4 AWG | 14 AWG | UL94 V-0 | 1 | 15 mm | 600 V | 2 | Feed Through | Gray | 1.5 mm² | 16 mm² | Screw | 76 A | 85 A | 1 kV |
