DAC7568 Series

12-Bit, Octal Channel, Ultra-Low Glitch, Voltage Output DAC with 2.5V, 2ppm/°C Internal Reference

Catalog

12-Bit, Octal Channel, Ultra-Low Glitch, Voltage Output DAC with 2.5V, 2ppm/°C Internal Reference

Part	Data Interface	Utilized IC / Part	Settling Time	Number of DAC's	Supplied Contents	DAC Type	Number of Bits	Number of D/A Converters	Output Type	Supplier Device Package	Architecture	Package / Case [x]	Package / Case	Package / Case [y]	Reference Type	Operating Temperature [Max]	Operating Temperature [Min]	INL/DNL (LSB)	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Mounting Type	Package / Case [custom]	Package / Case [custom]

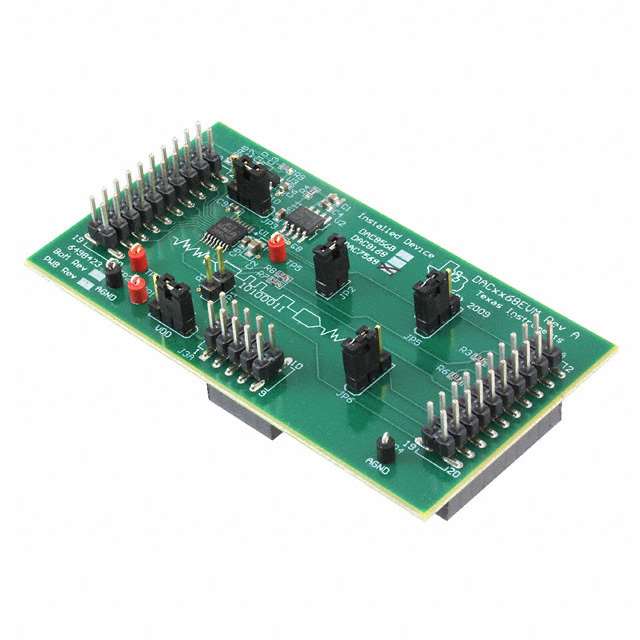

Texas Instruments DAC7568EVM	Serial	DAC7568	5 µs	8	Board(s)	Voltage	12 bits
Texas Instruments DAC7568ICPWR	DSP SPI		10 µs				12 bits	8	Voltage - Buffered	16-TSSOP	String DAC	0.173 in	16-TSSOP	4.4 mm	External Internal	125 °C	-40 °C	0.05 LSB 0.3 LSB	2.7 V	5.5 V	5.5 V	2.7 V	Surface Mount
Texas Instruments DAC7568IAPWR	DSP SPI		10 µs				12 bits	8	Voltage - Buffered	14-TSSOP	String DAC		14-TSSOP		External Internal	125 °C	-40 °C	0.05 LSB 0.3 LSB	2.7 V	5.5 V	5.5 V	2.7 V	Surface Mount	0.173 "	4.4 mm

Catalog

12-Bit, Octal Channel, Ultra-Low Glitch, Voltage Output DAC with 2.5V, 2ppm/°C Internal Reference

Key Features

• Relative Accuracy:DAC7568 (12-Bit): 0.3 LSB INLDAC8168 (14-Bit): 1 LSB INLDAC8568 (16-Bit): 4 LSB INLGlitch Energy: 0.1nV-sInternal Reference:2.5V Reference Voltage (disabled by default)0.004% Initial Accuracy (typ)2ppm/°C Temperature Drift (typ)5ppm/°C Temperature Drift (max)20mA Sink/Source CapabilityPower-On Reset to Zero Scale or MidscaleUltralow Power Operation: 1.25mA at 5V Including Internal Reference CurrentWide Power-Supply Range: +2.7V to +5.5VMonotonic Over Entire Temperature RangeLow-Power Serial Interface with Schmitt-Triggered Inputs: Up to 50MHzOn-Chip Output Buffer Amplifier with Rail-to-Rail OperationTemperature Range: –40°C to +125°CRelative Accuracy:DAC7568 (12-Bit): 0.3 LSB INLDAC8168 (14-Bit): 1 LSB INLDAC8568 (16-Bit): 4 LSB INLGlitch Energy: 0.1nV-sInternal Reference:2.5V Reference Voltage (disabled by default)0.004% Initial Accuracy (typ)2ppm/°C Temperature Drift (typ)5ppm/°C Temperature Drift (max)20mA Sink/Source CapabilityPower-On Reset to Zero Scale or MidscaleUltralow Power Operation: 1.25mA at 5V Including Internal Reference CurrentWide Power-Supply Range: +2.7V to +5.5VMonotonic Over Entire Temperature RangeLow-Power Serial Interface with Schmitt-Triggered Inputs: Up to 50MHzOn-Chip Output Buffer Amplifier with Rail-to-Rail OperationTemperature Range: –40°C to +125°C

Description

The DAC7568, DAC8168, and DAC8568 are low-power, voltage-output, eight-channel, 12-, 14-, and 16-bit digital-to-analog converters (DACs), respectively. These devices include a 2.5V, 2ppm/°C internal reference (disabled by default), giving a full-scale output voltage range of 2.5V or 5V. The internal reference has an initial accuracy of 0.004% and can source up to 20mA at the VREFIN/VREFOUT pin. These devices are monotonic, providing excellent linearity and minimizing undesired code-to-code transient voltages (glitch). They use a versatile 3-wire serial interface that operates at clock rates up to 50MHz. The interface is compatible with standard SPI™, QSPI™, Microwire™, and digital signal processor (DSP) interfaces. The DAC7568, DAC8168, and DAC8568 incorporate a power-on-reset circuit that ensures the DAC output powers up at either zero scale or midscale until a valid code is written to the device. These devices contain a power-down feature, accessed over the serial interface, that reduces current consumption to typically 0.18µA at 5V. Power consumption (including internal reference) is typically 2.9mW at 3V, reducing to less than 1µW in power-down mode. The low power consumption, internal reference, and small footprint make these devices ideal for portable, battery-operated equipment. TheDAC7568,DAC8168, andDAC8568are drop-in and function-compatible with each other, and are available in TSSOP-16 and TSSOP-14 packages. The DAC7568, DAC8168, and DAC8568 are low-power, voltage-output, eight-channel, 12-, 14-, and 16-bit digital-to-analog converters (DACs), respectively. These devices include a 2.5V, 2ppm/°C internal reference (disabled by default), giving a full-scale output voltage range of 2.5V or 5V. The internal reference has an initial accuracy of 0.004% and can source up to 20mA at the VREFIN/VREFOUT pin. These devices are monotonic, providing excellent linearity and minimizing undesired code-to-code transient voltages (glitch). They use a versatile 3-wire serial interface that operates at clock rates up to 50MHz. The interface is compatible with standard SPI™, QSPI™, Microwire™, and digital signal processor (DSP) interfaces. The DAC7568, DAC8168, and DAC8568 incorporate a power-on-reset circuit that ensures the DAC output powers up at either zero scale or midscale until a valid code is written to the device. These devices contain a power-down feature, accessed over the serial interface, that reduces current consumption to typically 0.18µA at 5V. Power consumption (including internal reference) is typically 2.9mW at 3V, reducing to less than 1µW in power-down mode. The low power consumption, internal reference, and small footprint make these devices ideal for portable, battery-operated equipment. TheDAC7568,DAC8168, andDAC8568are drop-in and function-compatible with each other, and are available in TSSOP-16 and TSSOP-14 packages.
