MAX764 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
IC REG BUCK-BST ADJ/-1V 8DIP
| Part | Frequency - Switching | Voltage - Output (Max) [Max] | Package / Case | Voltage - Output (Min/Fixed) | Voltage - Output (Min/Fixed) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Mounting Type | Output Type | Function | Voltage - Input (Max) [Max] | Current - Output | Synchronous Rectifier | Number of Outputs | Supplier Device Package | Output Configuration | Topology | Package / Case | Package / Case | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Main Purpose | Contents | Regulator Topology | Voltage - Output | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 300 kHz | -16 V | 8-DIP (0.300" 7.62mm) | -5 V | -1 V | 85 C | -40 ¯C | 3 V | Through Hole | Adjustable (Fixed) | Step-Up/Step-Down | 16 V | 260 mA | 1 | 8-PDIP | Negative | Buck-Boost | ||||||||||||
 Analog Devices Inc./Maxim Integrated | 300 kHz | -16 V | 8-SOIC | -5 V | -1 V | 70 °C | 0 °C | 3 V | Surface Mount | Adjustable (Fixed) | Step-Up/Step-Down | 16 V | 260 mA | 1 | 8-SOIC | Negative | Buck-Boost | 0.154 in | 3.9 mm | ||||||||||
 Analog Devices Inc./Maxim Integrated | 300 kHz | -16 V | 8-SOIC | -5 V | -1 V | 85 C | -40 ¯C | 3 V | Surface Mount | Adjustable (Fixed) | Step-Up/Step-Down | 16 V | 260 mA | 1 | 8-SOIC | Negative | Buck-Boost | 0.154 in | 3.9 mm | ||||||||||
 Analog Devices Inc./Maxim Integrated | 300 kHz | -16 V | 8-SOIC | -5 V | -1 V | 85 C | -40 ¯C | 3 V | Surface Mount | Adjustable (Fixed) | Step-Up/Step-Down | 16 V | 260 mA | 1 | 8-SOIC | Negative | Buck-Boost | 0.154 in | 3.9 mm | ||||||||||
Analog Devices Inc./Maxim Integrated | 300 kHz | -16 V | 8-SOIC | -5 V | -1 V | 70 °C | 0 °C | 3 V | Surface Mount | Adjustable (Fixed) | Step-Up/Step-Down | 16 V | 260 mA | 1 | 8-SOIC | Negative | Buck-Boost | 0.154 in | 3.9 mm | ||||||||||
Analog Devices Inc./Maxim Integrated | 300 kHz | -16 V | 8-SOIC | -5 V | -1 V | 85 C | -40 ¯C | 3 V | Surface Mount | Adjustable (Fixed) | Step-Up/Step-Down | 16 V | 260 mA | 1 | 8-SOIC | Negative | Buck-Boost | 0.154 in | 3.9 mm | ||||||||||
Analog Devices Inc./Maxim Integrated | 300 kHz | -16 V | 8-DIP (0.300" 7.62mm) | -5 V | -1 V | 85 C | -40 ¯C | 3 V | Through Hole | Adjustable (Fixed) | Step-Up/Step-Down | 16 V | 260 mA | 1 | 8-PDIP | Negative | Buck-Boost | ||||||||||||
Analog Devices Inc./Maxim Integrated | 300 kHz | -16 V | 8-SOIC | -5 V | -1 V | 70 °C | 0 °C | 3 V | Surface Mount | Adjustable (Fixed) | Step-Up/Step-Down | 16 V | 260 mA | 1 | 8-SOIC | Negative | Buck-Boost | 0.154 in | 3.9 mm | ||||||||||

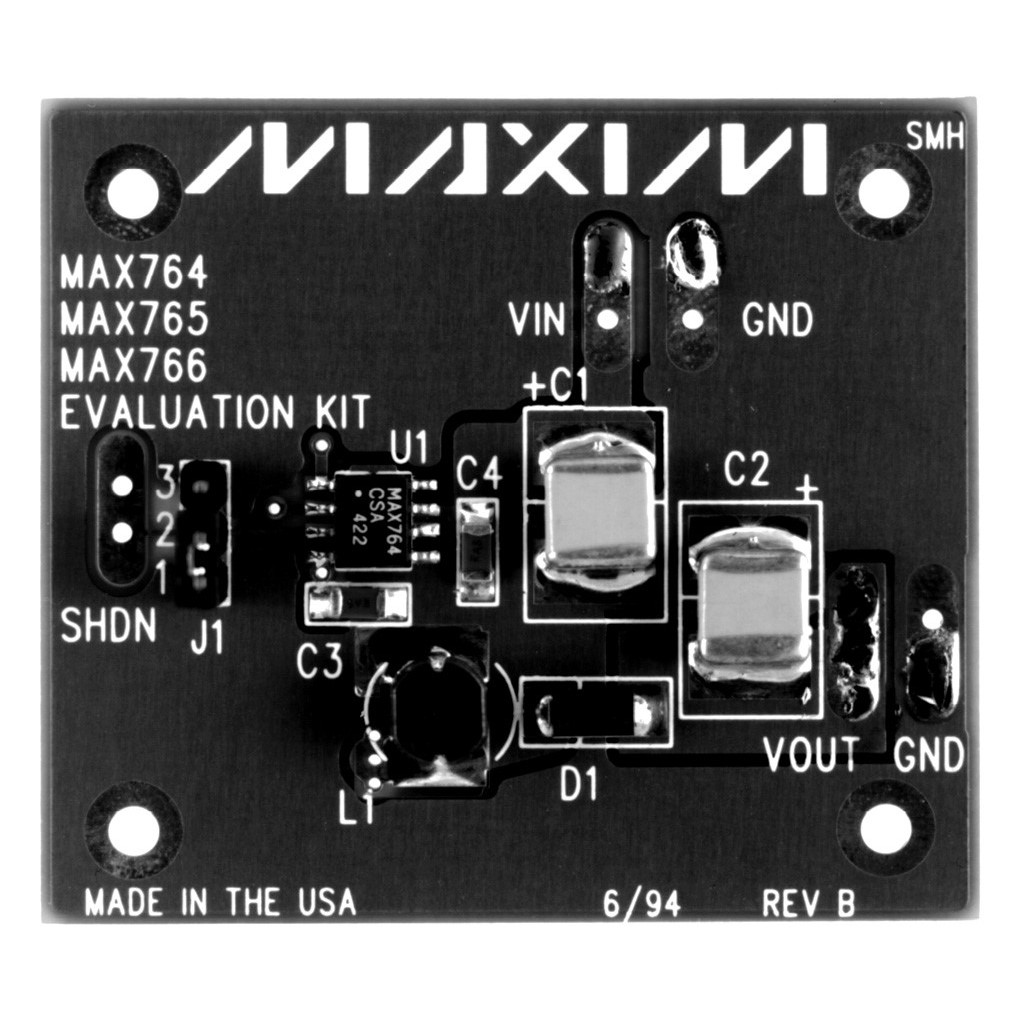

 Analog Devices Inc./Maxim Integrated | 300 kHz | 250 mA | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | DC/DC Step Down | Board(s) | Buck | -5 V | MAX764 | ||||||||||||||||||
Analog Devices Inc./Maxim Integrated | 300 kHz | -16 V | 8-SOIC | -5 V | -1 V | 70 °C | 0 °C | 3 V | Surface Mount | Adjustable (Fixed) | Step-Up/Step-Down | 16 V | 260 mA | 1 | 8-SOIC | Negative | Buck-Boost | 0.154 in | 3.9 mm |
