DB15 Series

Catalog

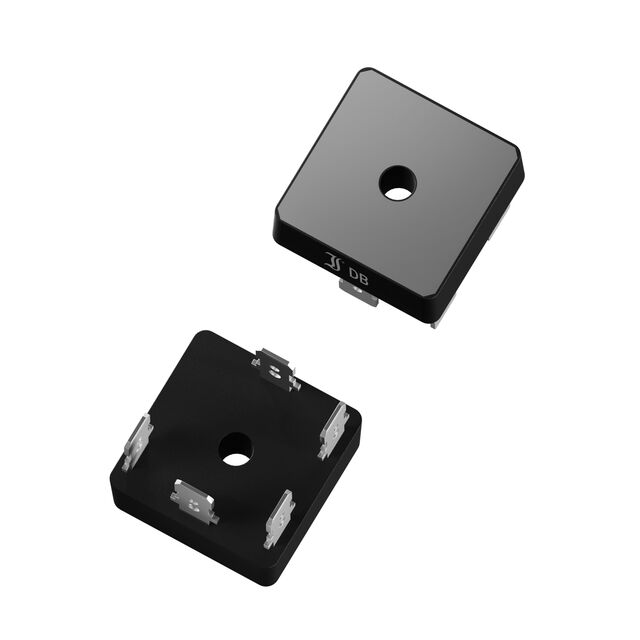

BRIDGE 3-PH DB 800V 15A 150DEG

Part	Mounting Type	Supplier Device Package	Current - Reverse Leakage @ Vr	Technology	Package / Case	Diode Type	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]
Diotec Semiconductor DB15-08	Chassis Mount	DB	10 µA	Standard	5-Square DB-35	Three Phase	15 A	800 V	-50 °C	150 °C	1.05 V	12.5 A
Diotec Semiconductor DB15-10	Chassis Mount	DB	10 çA	Standard	5-Square DB-35	Three Phase	15 A		-50 °C	150 °C	1.05 V	12.5 A	1 kV
Diotec Semiconductor DB15-02	Chassis Mount	DB	10 ÁA	Standard	5-Square DB-35	Three Phase	15 A	200 V	-50 °C	150 °C	1.05 V	12.5 A
Diotec Semiconductor DB15-06	Chassis Mount	DB	10 µA	Standard	5-Square DB-35	Three Phase	15 A		-50 °C	150 °C	1.05 V	12.5 A	600 V
