H2MA305 Series

Catalog

5IN1 EXTERNAL ANTENNA GNSS + LTE

Part	Ingress Protection	Frequency (Center/Band)	Frequency Range [Max]	Frequency Range [Min]	Features	Gain	Frequency Group	Applications	Height (Max) [z]	Height (Max) [z]	Mounting Type	Antenna Type	VSWR	RF Family/Standard	Number of Bands

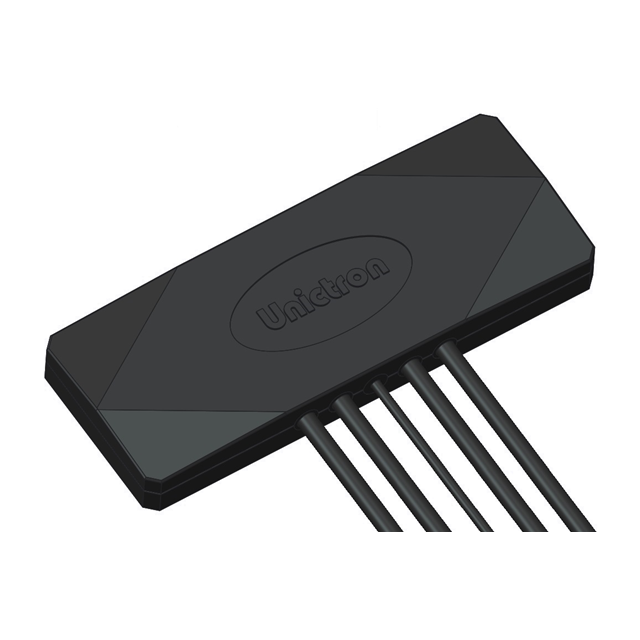

Unictron Technologies Corporation H2MA305D101100	IP67	1.561 GHz 1.575 GHz 1.602 GHz 1.94 GHz 2.35 GHz 2.442 GHz 2.59 GHz 3.6 GHz 5.5 GHz 829 MHz	2.17 GHz 2.4 GHz 2.484 GHz 2.69 GHz 3.8 GHz 5.85 GHz 960 MHz	1.71 GHz 2.3 GHz 2.4 GHz 2.49 GHz 3.4 GHz 5.15 GHz 698 MHz	Cable - 2m LNA	1.1 dBi 1.2 dBi 1.4 dBi 1.5 dBi 1.8 dBi 2 dBi 2.4 dBi 2.5 dBi 2.6 dBi 3.1 dBi 3.2 dBi	Wide Band	BeiDou Galileo GLONASS GNSS GPS LTE Wi-Fi	17 mm	0.669 in	Adhesive	Flat Patch	2 3 5	Cellular Navigation WiFi	10
