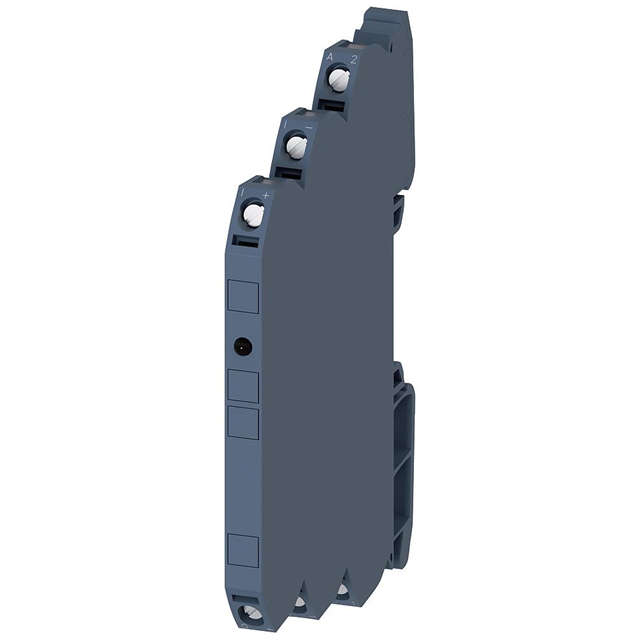

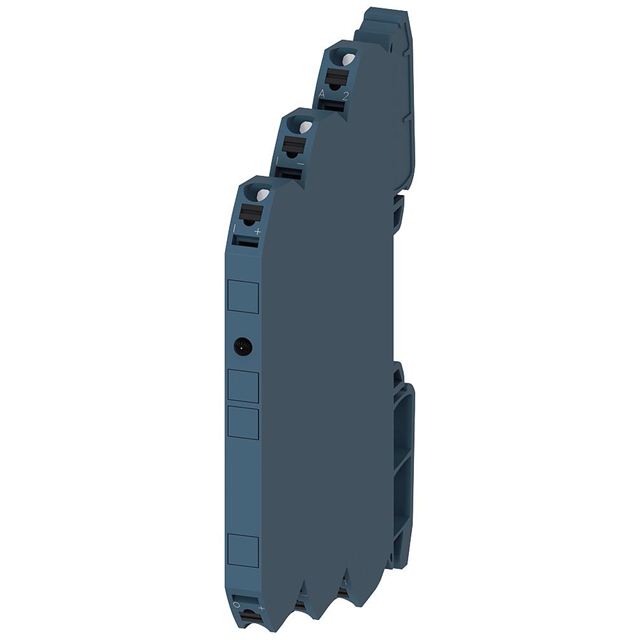

3RS7003 Series

Manufacturer: Siemens

Catalog

4-20MA TO 0-10V CNVRTR, 24VAC/DC

Part	Mounting Type	Input Range (Additional)	Output Range [Max]	Output Range [Min]	Type	Termination Style	Input Type	Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Voltage - Supply	Input Range (Current, Voltage) [Max]	Input Range (Current, Voltage) [Min]
Siemens 3RS70031AE00	DIN Rail	100 Ohm	10 V	0 V	Isolation Amplifier	Screw Terminal	Current	50 V	-25 °C	60 °C	Voltage	24 VAC	20 mA	4 mA
Siemens 3RS70032DE00	DIN Rail	100 Ohm	20 mA	4 mA	Isolation Amplifier	Spring Terminal	Current	50 V	-25 °C	60 °C	Current	24 VAC	20 mA	4 mA
Siemens 3RS70032AE00	DIN Rail	100 Ohm	10 V	0 V	Isolation Amplifier	Spring Terminal	Current	50 V	-25 °C	60 °C	Voltage	24 VAC	20 mA	4 mA
Siemens 3RS70032CE00	DIN Rail	100 Ohm	20 mA	0 mA	Isolation Amplifier	Spring Terminal	Current	50 V	-25 °C	60 °C	Current	24 VAC	20 mA	4 mA
Siemens 3RS70031CE00	DIN Rail	100 Ohm	20 mA	0 mA	Isolation Amplifier	Screw Terminal	Current	50 V	-25 °C	60 °C	Current	24 VAC	20 mA	4 mA
Siemens 3RS70031DE00	DIN Rail	100 Ohm	20 mA	4 mA	Isolation Amplifier	Screw Terminal	Current	50 V	-25 °C	60 °C	Current	24 VAC	20 mA	4 mA
