0397-1 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .022-.032 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Contact Material	Tail Diameter [diameter]	Tail Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Socket Depth	Socket Depth	Tail Type
Mill-Max Manufacturing Corp. 0397-1-15-01-06-01-04-0	-55 C	125 °C	0.066 in	1.68 mm	Tin-Lead	Beryllium Copper	0.51 mm	0.02 in	0.051 in	1.3 mm	200 Áin	5.08 Ám	11.71 mm	0.461 in	2.16 mm	0.085 "	Press-Fit	0.22 in	5.59 mm	Standard Tail
Mill-Max Manufacturing Corp. 0397-1-15-80-06-80-04-0	-55 C	125 °C	0.066 in	1.68 mm	Tin	Beryllium Copper	0.51 mm	0.02 in	0.051 in	1.3 mm	200 Áin	5.08 Ám	11.71 mm	0.461 in	2.16 mm	0.085 "	Press-Fit	0.22 in	5.59 mm	Standard Tail
Mill-Max Manufacturing Corp. 0397-1-15-15-06-14-04-0	-55 C	125 °C	0.066 in	1.68 mm	Gold	Beryllium Copper	0.51 mm	0.02 in	0.051 in	1.3 mm	10 Áin	0.25 Ám	11.71 mm	0.461 in	2.16 mm	0.085 "	Press-Fit	0.22 in	5.59 mm	Standard Tail

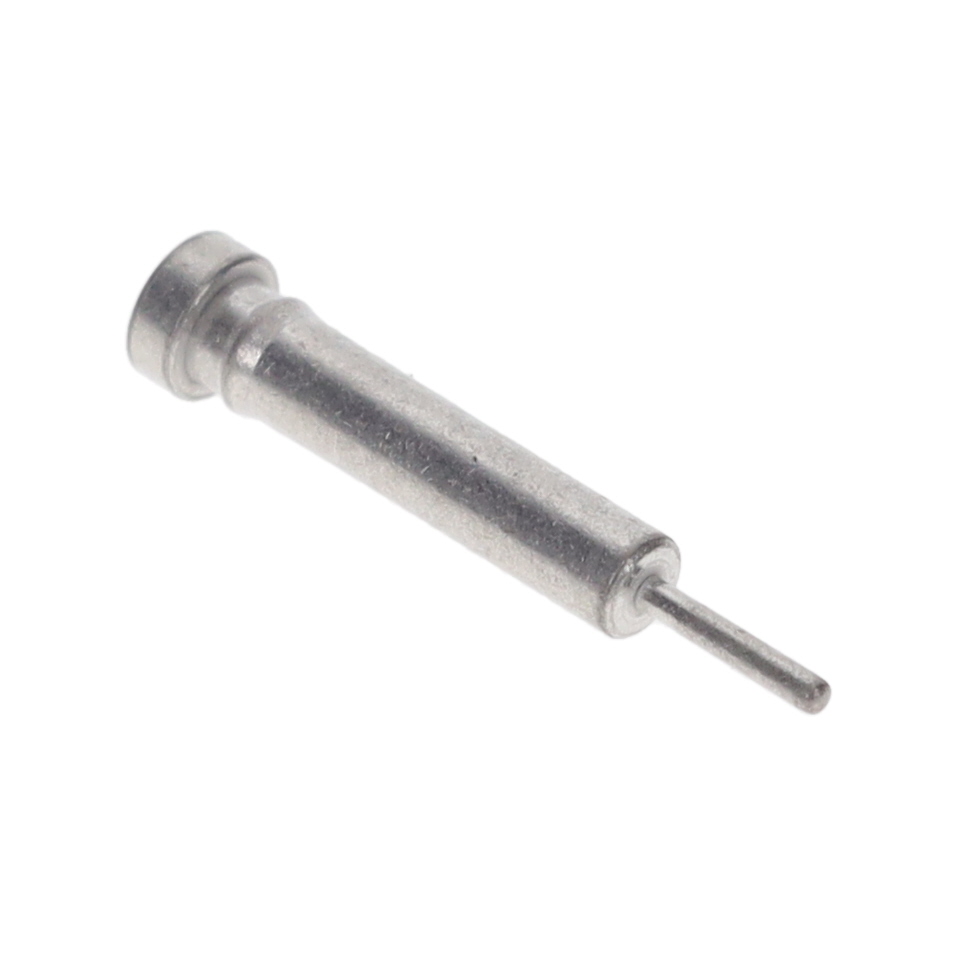

Mill-Max Manufacturing Corp. 0397-1-15-01-06-27-04-0	-55 C	125 °C	0.066 in	1.68 mm	Gold	Beryllium Copper	0.51 mm	0.02 in	0.051 in	1.3 mm	30 Áin	0.76 Ám	11.71 mm	0.461 in	2.16 mm	0.085 "	Press-Fit	0.22 in	5.59 mm	Standard Tail

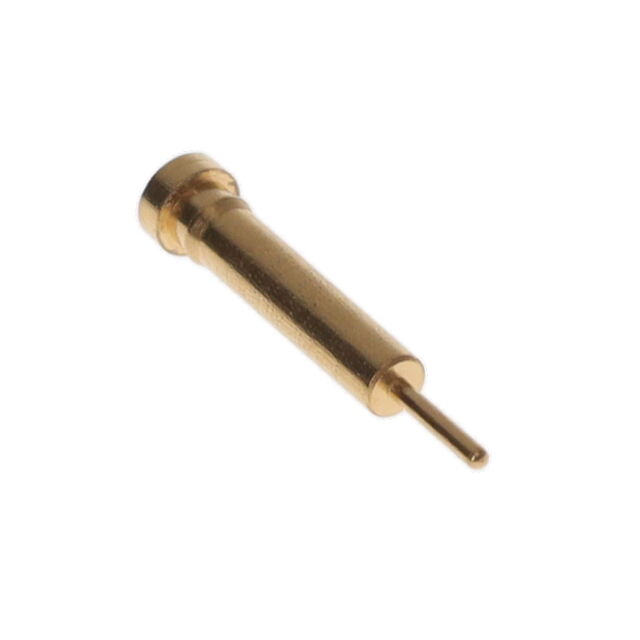

Mill-Max Manufacturing Corp. 0397-1-15-15-06-27-04-0	-55 C	125 °C	0.066 in	1.68 mm	Gold	Beryllium Copper	0.51 mm	0.02 in	0.051 in	1.3 mm	30 Áin	0.76 Ám	11.71 mm	0.461 in	2.16 mm	0.085 "	Press-Fit	0.22 in	5.59 mm	Standard Tail
Mill-Max Manufacturing Corp. 0397-1-15-80-06-14-04-0	-55 C	125 °C	0.066 in	1.68 mm	Gold	Beryllium Copper	0.51 mm	0.02 in	0.051 in	1.3 mm	10 Áin	0.25 Ám	11.71 mm	0.461 in	2.16 mm	0.085 "	Press-Fit	0.22 in	5.59 mm	Standard Tail
Mill-Max Manufacturing Corp. 0397-1-15-80-06-27-04-0	-55 C	125 °C	0.066 in	1.68 mm	Gold	Beryllium Copper	0.51 mm	0.02 in	0.051 in	1.3 mm	30 Áin	0.76 Ám	11.71 mm	0.461 in	2.16 mm	0.085 "	Press-Fit	0.22 in	5.59 mm	Standard Tail
