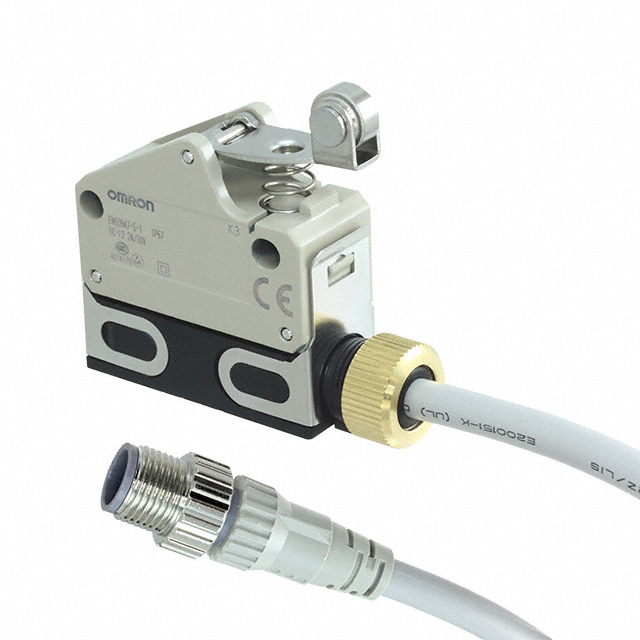

D4E-1G21 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Release Force | Operating Force | Operating Position | Operating Position | Circuit | Voltage Rating - DC | Mounting Type | Termination Style | Ingress Protection | Actuator Type | Pretravel | Pretravel | Mechanical Life | Differential Travel | Differential Travel | Voltage Rating - AC | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Overtravel [custom] | Overtravel [custom] | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 80 gf | 400 gf | 23.1 mm | 0.909 in | SPDT | 30 V | Chassis Mount | Cable Leads | IP67 - Dust Tight Waterproof | Lever Roller | 2 mm | 0.08 in | 10000000 Cycles | 0.012 in | 0.3 mm | 125 V | 500000 Cycles | -10 °C | 80 °C | 5 A | 0.158 in | 4 mm | On-Mom |
