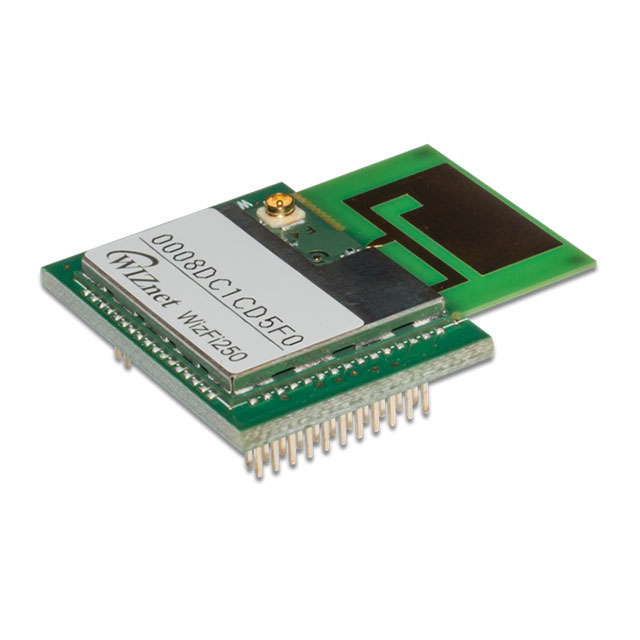

WIZFI250 Series
Manufacturer: WIZnet
Beta
⌘K
RF TXRX MOD WIFI PCB TRACE SMD
| Part | Antenna Type | Current - Receiving | Serial Interfaces | Operating Temperature [Max] | Operating Temperature [Min] | RF Family/Standard | Protocol | Sensitivity | Frequency | Mounting Type | Current - Transmitting [Min] | Current - Transmitting [Max] | Package / Case | Power - Output | Memory Size | For Use With/Related Products | Supplied Contents | Type | Utilized IC / Part | Contents | Voltage - Supply [Max] | Voltage - Supply [Min] | Modulation | Current - Transmitting | Data Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WIZnet | PCB Trace | 120 mA | SPI UART | 85 °C | -20 ░C | WiFi | 802.11b/g/n | -97 dBm | 2.4 GHz | Surface Mount | 265 mA | 430 mA | 73-SMD Module | 16.5 dBm | 1 MB 128 kB | ||||||||||
 WIZnet | 2.4 GHz | WizFi250 | Board(s) | Transceiver; 802.11 b/g/n (Wi-Fi WiFi WLAN) | WizFi250 | Board(s) | |||||||||||||||||||
 WIZnet | Integrated Trace + U.FL | 120 mA | SPI UART | 85 °C | -20 ░C | WiFi | 802.11b/g/n | -96 dBm | 2.4 GHz | Surface Mount | 73-SMD Module | 16.5 dBm | 1 MB 128 kB | 3.6 V | 3 V | 16QAM 64QAM BPSK CCK DSSS OFDM QPSK | 385 mA | 65 Mbps |
