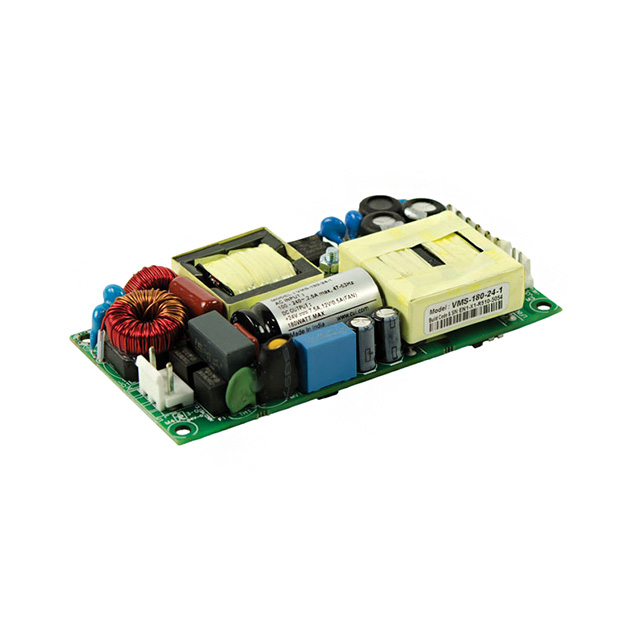

VMS-180 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 48V 3.75A 120(CONVECTION)W/180(FORCED AIR)W 11-PIN
| Part | Applications | Efficiency | Approval Agency | Current - Output 1 | Voltage - Output 1 | Mounting Type | Features | Number of Outputs | Power (Watts) | Voltage - Isolation | Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Standard Number | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Medical | 92 % | CB Scheme EN FCC IEC TUV UL | 2.5 A | 48 V | Chassis Mount | Adjustable Output PFC Standby Output Universal Input | 1 | 120 W 180 W | 4.2 kV | Open Frame | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 80 VAC | 264 VAC |
CUI Inc. | Medical | 92 % | CB Scheme EN FCC IEC TUV UL | 2.5 A | 48 V | Chassis Mount | Adjustable Output Standby Output Universal Input | 1 | 120 W 180 W | 4.2 kV | Open Frame | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 80 VAC | 264 VAC |
CUI Inc. | Medical | 88 % | CB Scheme EN FCC IEC TUV UL | 10 A | 12 V | Chassis Mount | Adjustable Output PFC Standby Output Universal Input | 1 | 120 W 180 W | 4.2 kV | Open Frame | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 80 VAC | 264 VAC |
CUI Inc. | Medical | 88 % | CB Scheme EN FCC IEC TUV UL | 8 A | 15 V | Chassis Mount | Adjustable Output PFC Standby Output Universal Input | 1 | 120 W 180 W | 4.2 kV | Open Frame | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 80 VAC | 264 VAC |
CUI Inc. | Medical | 90 % | CB Scheme EN FCC IEC TUV UL | 4 A | 30 V | Chassis Mount | Adjustable Output PFC Standby Output Universal Input | 1 | 120 W 180 W | 4.2 kV | Open Frame | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 80 VAC | 264 VAC |
 CUI Inc. | Medical | 90 % | CB Scheme EN FCC IEC TUV UL | 5 A | 24 V | Chassis Mount | Adjustable Output Standby Output Universal Input | 1 | 120 W 180 W | 4.2 kV | Open Frame | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 80 VAC | 264 VAC |
CUI Inc. | Medical | 88 % | CB Scheme EN FCC IEC TUV UL | 10 A | 12 V | Chassis Mount | Adjustable Output Standby Output Universal Input | 1 | 120 W 180 W | 4.2 kV | Open Frame | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 80 VAC | 264 VAC |
CUI Inc. | Medical | 88 % | CB Scheme EN FCC IEC TUV UL | 8 A | 15 V | Chassis Mount | Adjustable Output PFC Standby Output Universal Input | 1 | 120 W 180 W | 4.2 kV | Open Frame | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 80 VAC | 264 VAC |
CUI Inc. | Medical | 90 % | CB Scheme EN FCC IEC TUV UL | 5 A | 24 V | Chassis Mount | Adjustable Output PFC Standby Output Universal Input | 1 | 120 W 180 W | 4.2 kV | Open Frame | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 80 VAC | 264 VAC |
CUI Inc. | Medical | 90 % | CB Scheme EN FCC IEC TUV UL | 4 A | 30 V | Chassis Mount | Adjustable Output PFC Standby Output Universal Input | 1 | 120 W 180 W | 4.2 kV | Open Frame | 101.6 mm | 19.1 mm | 2 in | 4 " | 0.75 " | 50.8 mm | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 | 80 VAC | 264 VAC |
