MPQ2166 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

IC REG BCK ADJ 2A/2A/3A/1A 18QFN

Part	Output Type	Grade	Mounting Type	Function	Voltage - Output (Max) [Max]	Current - Output [custom]	Current - Output [custom]	Number of Outputs	Frequency - Switching [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Topology	Qualification	Voltage - Output (Min/Fixed)	Frequency - Switching [Min]

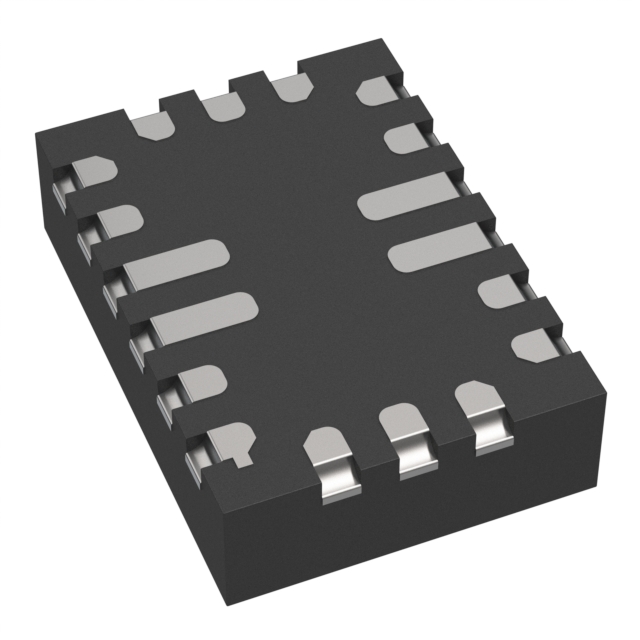

Monolithic Power Systems Inc. MPQ2166GDE-AEC1-P	Adjustable	Automotive	Surface Mount Wettable Flank	Step-Down	5.5 V	1 A 2 A	2 A 3 A	1	3 MHz	6 V	2.7 V	18-PowerVFQFN	Positive	-40 C	125 °C	18-QFN (2.5x3.5)	Buck	AEC-Q100	0.6 V
Monolithic Power Systems Inc. MPQ2166BGRHE-AEC1-Z	Adjustable	Automotive	Surface Mount Wettable Flank	Step-Down	5.5 V	1 A 2 A	2 A 3 A	2	3 MHz	6 V	2.7 V	18-PowerVFQFN	Positive	-40 C	125 °C	18-QFN (2.5x3.5)	Buck	AEC-Q100	0.6 V	350 kHz
Monolithic Power Systems Inc. MPQ2166BGRHE-AEC1-P	Adjustable	Automotive	Surface Mount Wettable Flank	Step-Down	5.5 V	1 A 2 A	2 A 3 A	2	3 MHz	6 V	2.7 V	18-PowerVFQFN	Positive	-40 C	125 °C	18-QFN (2.5x3.5)	Buck	AEC-Q100	0.6 V	350 kHz

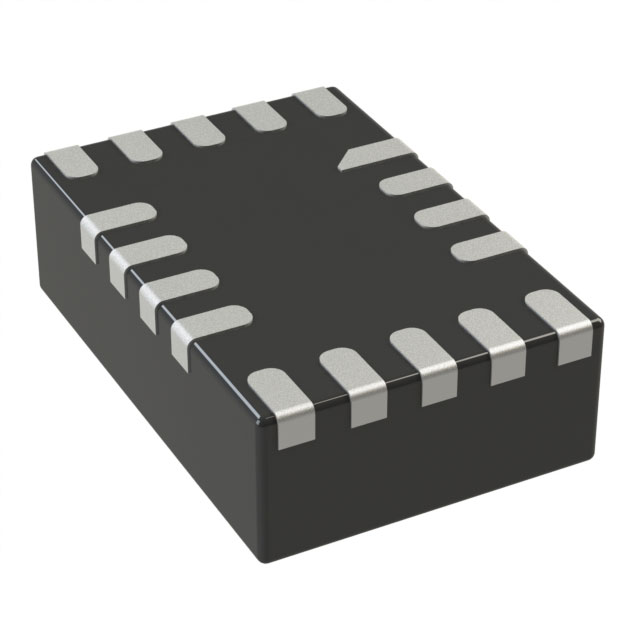

Monolithic Power Systems Inc. MPQ2166GD-AEC1-P			Surface Mount									18-VFQFN				18-QFN (2x3)
Monolithic Power Systems Inc. MPQ2166GRH-AEC1-Z	Adjustable	Automotive	Surface Mount Wettable Flank	Step-Down	5.5 V	1 A 2 A	2 A 3 A	2	3 MHz	6 V	2.7 V	18-PowerVFQFN	Positive	-40 C	125 °C	18-QFN (2.5x3.5)	Buck	AEC-Q100	0.6 V	350 kHz
Monolithic Power Systems Inc. MPQ2166GD-Z			Surface Mount									18-VFQFN				18-QFN (2x3)
Monolithic Power Systems Inc. MPQ2166GD-AEC1-Z	Adjustable	Automotive	Surface Mount	Step-Down	5.5 V	1 A 2 A	2 A 3 A	2	3 MHz	6 V	2.7 V	18-VFQFN	Positive	-40 C	125 °C	18-QFN (2x3)	Buck	AEC-Q100	0.6 V
