333-034 Series
Manufacturer: EDAC Inc.
Beta
⌘K

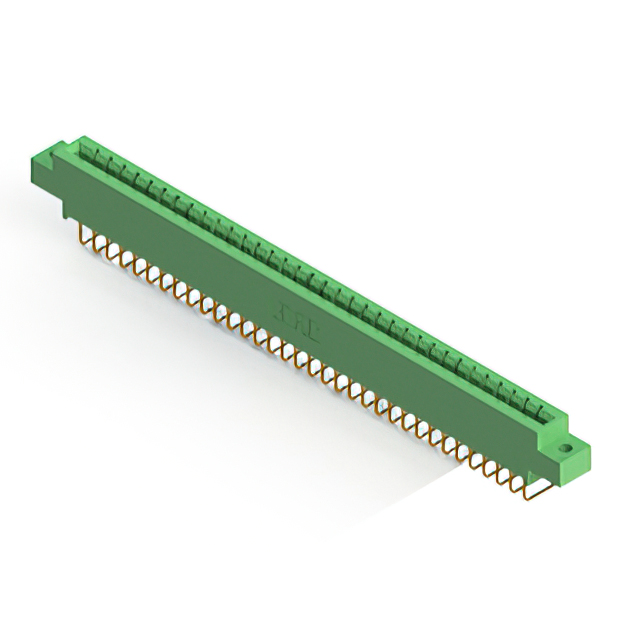

CONN EDGE SGL FMALE 34POS 0.156
| Part | Termination Rows | Material - Insulation | Number of Positions/Bay/Row | Termination | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Pitch | Pitch | Number of Positions [custom] | Read Out | Card Type | Contact Type | Number of Rows | Gender | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Color | Contact Material | Termination Rows [custom] | Number of Rows [custom] | Number of Positions/Bay/Row [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 34 | Solder | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 3.96 mm | 0.156 in | 34 | Single | Non Specified - Single Edge | Cantilever | 1 | Female | Through Hole | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Copper Alloy | ||||
 EDAC Inc. | Polyester Thermoplastic | Solder | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 3.96 mm | 0.156 in | 34 | Dual | Non Specified - Dual Edge | Cantilever | Female | Through Hole | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Copper Alloy | 2 | 2 | 17 | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 34 | Wire Wrap | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 3.96 mm | 0.156 in | 34 | Single | Non Specified - Single Edge | Cantilever | 1 | Female | Right Angle Through Hole | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Copper Alloy | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 34 | Wire Wrap | 0.156 " | 3.96 mm | 3.96 mm | 0.156 in | 34 | Single | Non Specified - Single Edge | Cantilever | 1 | Female | Through Hole | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Copper Alloy | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 34 | Wire Wrap | M3 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | 34 | Single | Non Specified - Single Edge | Cantilever | 1 | Female | Through Hole | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Copper Alloy | ||||||
 EDAC Inc. | Polyester Thermoplastic | Solder Eyelet(s) | 3.96 mm | 0.156 in | 34 | Dual | Non Specified - Dual Edge | Cantilever | Female | Board Edge Straddle Mount | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Copper Alloy | 2 | 2 | 17 | Card Extender | ||||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 34 | Solder | 4-40 Threaded Insert Top Mount Opening | 3.96 mm | 0.156 in | 34 | Single | Non Specified - Single Edge | Cantilever | 1 | Female | Right Angle Through Hole | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Copper Alloy | ||||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 34 | Solder | 0.128 " | 3.25 mm | 3.96 mm | 0.156 in | 34 | Single | Non Specified - Single Edge | Cantilever | 1 | Female | Through Hole | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Copper Alloy | |||||
 EDAC Inc. | Polyester Thermoplastic | Solder | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 3.96 mm | 0.156 in | 34 | Dual | Non Specified - Dual Edge | Cantilever | Female | Through Hole | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Copper Alloy | 2 | 2 | 17 | ||||
 EDAC Inc. | Polyester Thermoplastic | Solder | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 3.96 mm | 0.156 in | 34 | Dual | Non Specified - Dual Edge | Cantilever | Female | Board Edge Straddle Mount | -40 C | 105 ░C | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Green | Copper Alloy | 2 | 2 | 17 | Card Extender |
