3852C Series
Manufacturer: Bourns Inc.
Beta
⌘K

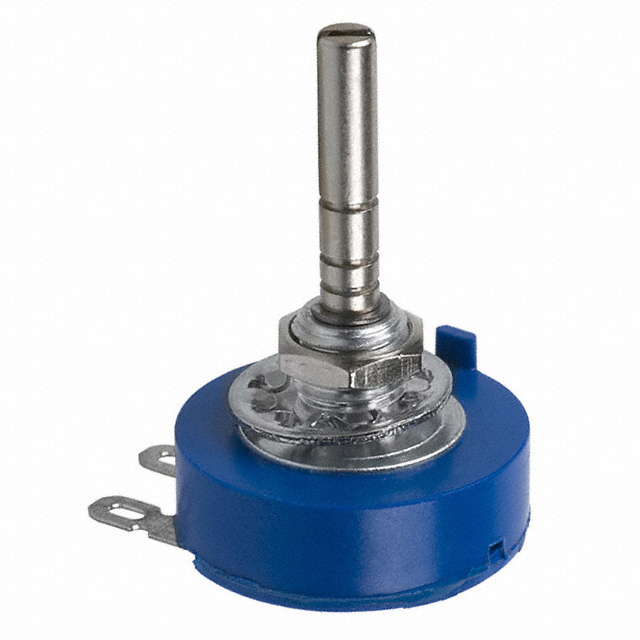

POT 10K OHM 2W CERMET LINEAR
| Part | Size - Body [diameter] | Size - Body [diameter] | Tolerance | Actuator Length [x] | Actuator Length [x] | Bushing Thread | Temperature Coefficient | Resistance (Ohms) | Termination Style | Number of Gangs | Rotation | Power (Watts) | Built in Switch | Actuator Type | Adjustment Type | Number of Turns | Taper | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Mounting Type | Resistive Material | Resistance (Ohms) | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 19.05 mm | 0.75 " | 10 % | 0.875 in | 22.23 mm | 1/4-32 | 150 ppm/°C | 10k | Solder Lug | 1 | 280 ° | 2 W | None | Slotted | User Defined | 1 | Linear | 3.18 mm | 0.125 in | Panel Mount | Cermet | ||
 Bourns Inc. | 19.05 mm | 0.75 " | 10 % | 0.5 in | 12.7 mm | 1/4-32 | 150 ppm/°C | Solder Lug | 1 | 280 ° | 2 W | None | Slotted | User Defined | 1 | Linear | 3.18 mm | 0.125 in | Panel Mount | Cermet | 5 kOhms | ||
Bourns Inc. | 19.05 mm | 0.75 " | 10 % | 0.5 in | 12.7 mm | 1/4-32 | 150 ppm/°C | Solder Lug | 1 | 280 ° | 2 W | None | Slotted | User Defined | 1 | Linear | 3.18 mm | 0.125 in | Panel Mount | Cermet | 50 kOhms | ||
 Bourns Inc. | 19.05 mm | 0.75 " | 10 % | 0.625 in | 15.88 mm | 1/4-32 | 150 ppm/°C | 10k | Solder Lug | 1 | 280 ° | 2 W | None | Slotted | User Defined | 1 | Linear | 3.18 mm | 0.125 in | Panel Mount | Cermet | ||
 Bourns Inc. | 19.05 mm | 0.75 " | 10 % | 0.875 in | 22.23 mm | 1/4-32 | 150 ppm/°C | 100k | Solder Lug | 1 | 280 ° | 2 W | None | Slotted | User Defined | 1 | Linear | 3.18 mm | 0.125 in | Panel Mount | Cermet | ||
Bourns Inc. | 19.05 mm | 0.75 " | 10 % | 0.625 in | 15.88 mm | 1/4-32 | 150 ppm/°C | 100k | Solder Lug | 1 | 280 ° | 2 W | None | Slotted | User Defined | 1 | Linear | 3.18 mm | 0.125 in | Panel Mount | Cermet | ||
Bourns Inc. | 19.05 mm | 0.75 " | 10 % | 0.875 in | 22.23 mm | 1/4-32 | 150 ppm/°C | 10k | Solder Lug | 1 | 280 ° | 2 W | None | Slotted | User Defined | 1 | Linear | 3.18 mm | 0.125 in | Panel Mount | Cermet | ||
Bourns Inc. | 19.05 mm | 0.75 " | 10 % | 0.875 in | 22.23 mm | 1/4-32 | 150 ppm/°C | Solder Lug | 1 | 280 ° | 2 W | None | Slotted | User Defined | 1 | Linear | 3.18 mm | 0.125 in | Panel Mount | Cermet | 5 kOhms | ||
 Bourns Inc. | 19.05 mm | 0.75 " | 10 % | 0.5 in | 12.7 mm | 1/4-32 | 150 ppm/°C | 100k | Solder Lug | 1 | 280 ° | 2 W | None | Slotted | User Defined | 1 | Linear | 3.18 mm | 0.125 in | Panel Mount | Cermet | ||
Bourns Inc. | 19.05 mm | 0.75 " | 10 % | 0.5 in | 12.7 mm | 1/4-32 | 150 ppm/°C | PC Pins | 1 | 280 ° | 2 W | None | Slotted | Side Adjustment | 1 | Linear | 3.18 mm | 0.125 in | Panel Mount | Cermet | 5 kOhms |
