L77SDAH15 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

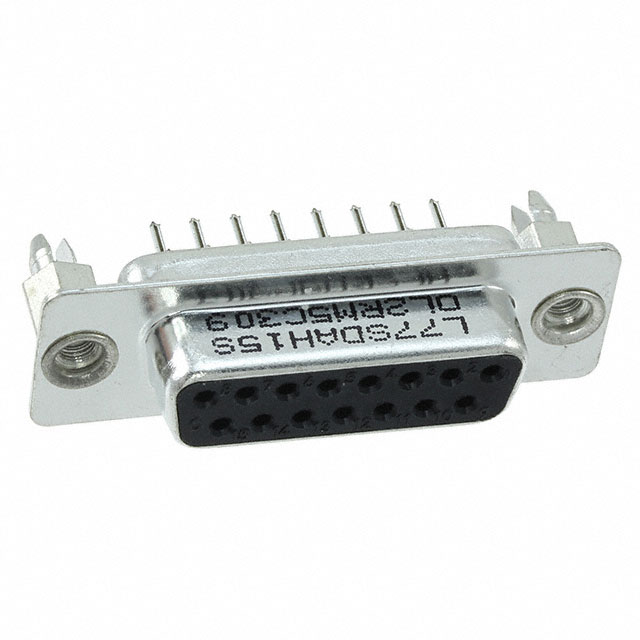

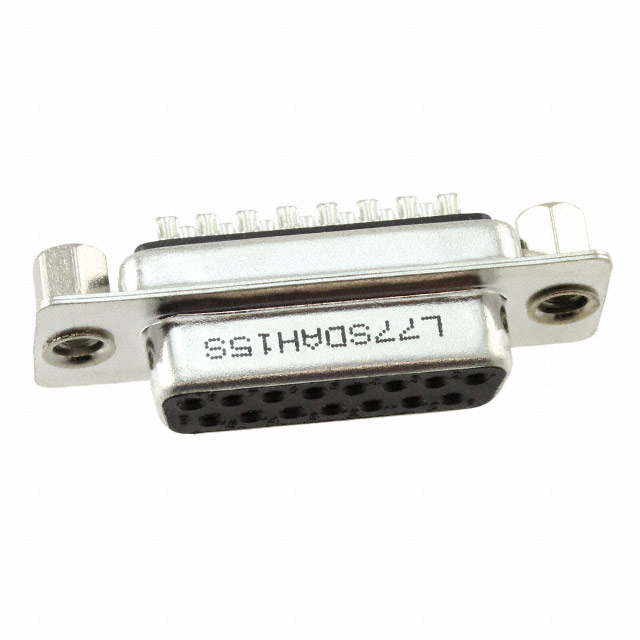

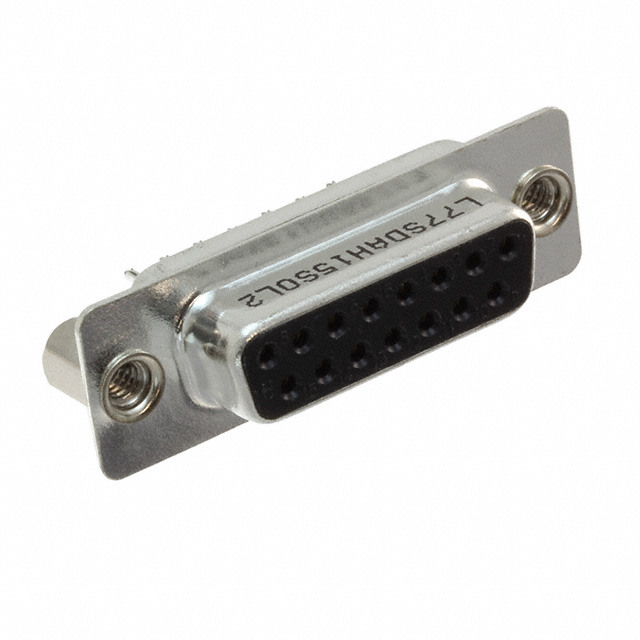

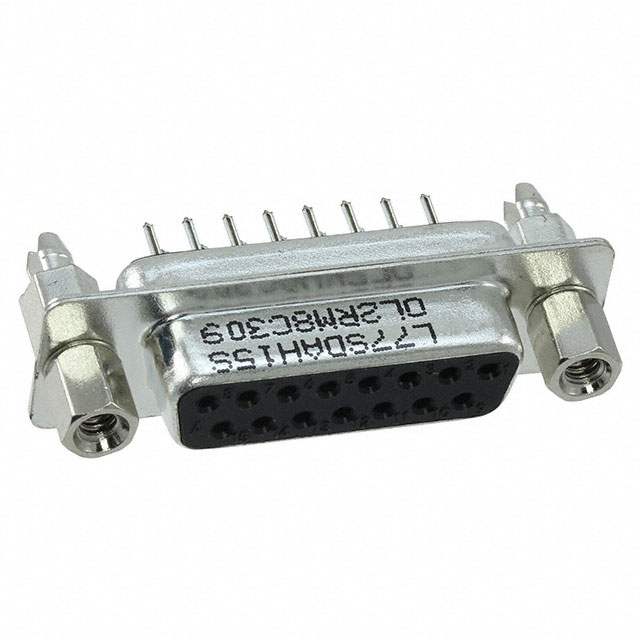

CONN D-SUB RCPT 15POS VERT SLDR
| Part | Voltage Rating | Dielectric Material | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Connector Type | Shell Size, Connector Layout | Contact Type | Mounting Type | Contact Finish | Features | Termination | Number of Positions | Flange Feature | Material Flammability Rating | Connector Style | Number of Rows [custom] | Contact Finish Thickness | Current Rating (Amps) | Wire Gauge | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | Stamped | -55 C | 125 °C | Phosphor Bronze | Black | Receptacle Female Sockets | 2 | Signal | Through Hole | Gold | Board Lock | Solder | 15 | Board Side (4-40) Mating Side Female Screwlock (4-40) | UL94 V-0 | D-Sub | 2 | Flash | 3 A | |||
 Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | Stamped | -55 C | 105 ░C | Brass | Black | Receptacle Female Sockets | 2 | Signal | Free Hanging (In-Line) | Gold | 15 | Cable Side (4-40) Mating Side Female Screwlock (4-40) | UL94 V-0 | D-Sub | 2 | Flash | 3 A | 20 AWG | ||||
 Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | Stamped | -55 C | 125 °C | Phosphor Bronze | Black | Receptacle Female Sockets | 2 | Signal | Through Hole | Gold | Solder | 15 | Board Side (4-40) | UL94 V-0 | D-Sub | 2 | Flash | 3 A | ||||
 Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | Stamped | -55 C | 125 °C | Phosphor Bronze | Black | Receptacle Female Sockets | 2 | Signal | Through Hole | Gold | Solder | 15 | Board Side (4-40) | UL94 V-0 | D-Sub | 2 | 3 A | 30 Áin | 0.76 Ám | |||
Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | Stamped | -55 C | 105 ░C | Brass | Black | Receptacle Female Sockets | 2 | Signal | Free Hanging (In-Line) | Gold | 15 | Cable Side (4-40) Mating Side Female Screwlock (4-40) | UL94 V-0 | D-Sub | 2 | 3 A | 20 AWG | 30 Áin | 0.76 Ám | |||
 Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | Stamped | -55 C | 105 ░C | Brass | Black | Receptacle Female Sockets | 2 | Signal | Free Hanging (In-Line) | Gold | 15 | Cable Side (4-40) | UL94 V-0 | D-Sub | 2 | Flash | 3 A | 20 AWG | ||||
 Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | Stamped | -55 C | 125 °C | Phosphor Bronze | Black | Receptacle Female Sockets | 2 | Signal | Through Hole | Gold | Board Lock | Solder | 15 | Board Side (4-40) Mating Side Female Screwlock (4-40) | UL94 V-0 | D-Sub | 2 | 3 A | 30 Áin | 0.76 Ám | ||
 Amphenol ICC (Commercial Products) | 250 V | Thermoplastic Glass Filled | Stamped | -55 C | 125 °C | Phosphor Bronze | Black | Receptacle Female Sockets | 2 | Signal | Through Hole | Gold | Board Lock | Solder | 15 | Board Side (4-40) | UL94 V-0 | D-Sub | 2 | 3 A | 30 Áin | 0.76 Ám |
