203567 Series

Manufacturer: Molex

Catalog

1.00MM PITCH, PICO-CLASP PCB HEADER, DUAL ROW, RIGHT-ANGLE, SURFACE MOUNT, 0.76ΜM GOLD PLATED, INNER POSITIVE LOCK, 40 CIRCUITS, NATURAL

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Finish - Mating	Mounting Type	Contact Type	Number of Positions Loaded	Current Rating (Amps)	Fastening Type	Number of Rows [custom]	Shrouding	Voltage Rating	Insulation Height	Insulation Height	Contact Finish - Post	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating	Contact Material	Style	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Features	Insulation Material	Connector Type

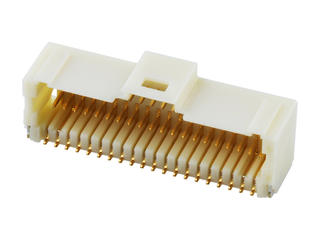

Molex 2035674007	4.02 µin	0.102 µm	Automotive General Purpose Industrial Medical	Gold	Right Angle Surface Mount	Male Pin	All	Varies by Wire Gauge	Friction Lock	2	Shrouded - 4 Wall	50 V	0.325 in	8.25 mm	Gold	Rectangular	0.105 in	2.66 mm	Phosphor Bronze	Board to Cable/Wire	-40 C	105 ░C	1 mm	0.039 in	Natural	40	UL94 V-0	0.76 Ám	30 Áin	Solder	Solder Retention	Nylon Polyamide (PA)	Header
Molex 2035673007	4.02 µin	0.102 µm	Automotive General Purpose Industrial Medical	Gold	Right Angle Surface Mount	Male Pin	All	Varies by Wire Gauge	Friction Lock	2	Shrouded - 4 Wall	50 V	0.325 in	8.25 mm	Gold	Rectangular	0.105 in	2.66 mm	Phosphor Bronze	Board to Cable/Wire	-40 C	105 ░C	1 mm	0.039 in	Natural	30	UL94 V-0	0.76 Ám	30 Áin	Solder	Solder Retention	Nylon Polyamide (PA)	Header
Molex 2035675007	4.02 µin	0.102 µm	Automotive General Purpose Industrial Medical	Gold	Right Angle Surface Mount	Male Pin	All	Varies by Wire Gauge	Friction Lock	2	Shrouded - 4 Wall	50 V	0.325 in	8.25 mm	Gold	Rectangular	0.105 in	2.66 mm	Phosphor Bronze	Board to Cable/Wire	-40 C	105 ░C	1 mm	0.039 in	Natural	50	UL94 V-0	0.76 Ám	30 Áin	Solder	Solder Retention	Nylon Polyamide (PA)	Header
Molex 2035672007	4.02 µin	0.102 µm	Automotive General Purpose Industrial Medical	Gold	Right Angle Surface Mount	Male Pin	All	Varies by Wire Gauge	Friction Lock	2	Shrouded - 4 Wall	50 V	0.325 in	8.25 mm	Gold	Rectangular	0.105 in	2.66 mm	Phosphor Bronze	Board to Cable/Wire	-40 C	105 ░C	1 mm	0.039 in	Natural	20	UL94 V-0	0.76 Ám	30 Áin	Solder	Solder Retention	Nylon Polyamide (PA)	Header
