A63-114 Series
Manufacturer: EDAC Inc.
Beta
⌘K

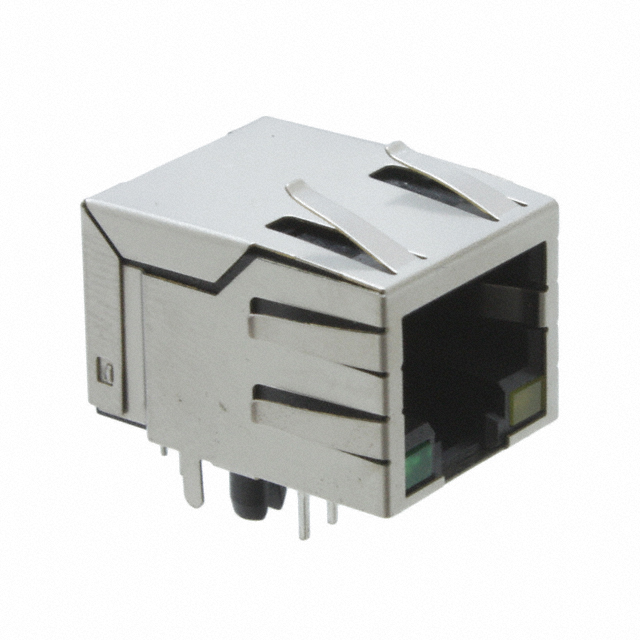

CONN JACK 1PORT PCB
| Part | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Shielding | Applications | Mounting Type | Number of Ports | Contact Finish | Height Above Board [z] | Height Above Board [z] | Features | Tab Direction | Number of Rows | Orientation | LED Color | Termination | Connector Type | Shield Material | Orientation | Contact Material | Height Above Board | Height Above Board | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polybutylene Terephthalate (PBT) Polyester | 30 Áin | 0.76 Ám | Shielded | 10/100 Base-T AutoMDIX | Through Hole | 1 | Gold | 16.87 mm | 0.664 in | Board Lock | User Selectable | 1 | Vertical | Green - Yellow | Solder | RJ45 | |||||||
 EDAC Inc. | Thermoplastic | 30 Áin | 0.76 Ám | EMI Finger Shielded | 10/100 Base-T AutoMDIX | Through Hole | 1 | Gold | Board Lock | Down | 1 | Green - Yellow | Solder | RJ45 | Copper Alloy | 90 ° | Copper Alloy | 13.49 mm | 0.531 in | 70 °C | 0 °C |
