SK24EG Series

Catalog

KEYLOCK SWITCH, PROCESS SEALED, ON-ON-ON, DP3T, SK SERIES, 3 POSITION, PC PIN, RIGHT ANGLE

Part	Mechanical Life	Electrical Life	Angle of Throw	Circuit	Contact Timing	Current Rating (Amps)	Contact Material	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Actuator Type	Mounting Type	Contact Finish	Switch Function	Key Removable Positions	Features	Termination Style

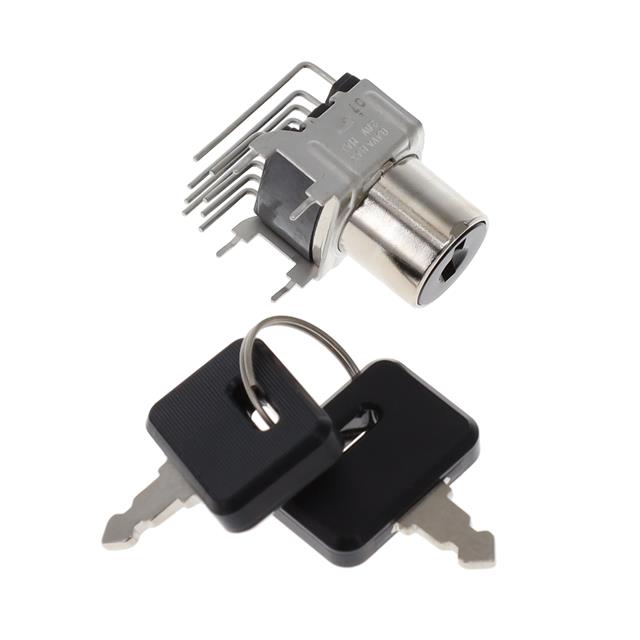

NKK Switches SK24EG30	30000 Steps	10000 Cycles	45 °	DP3T	Non-Shorting (BBM)	0.4 VA	Beryllium Copper	28 V	-25 °C	70 °C	28 V	Flat Key	Right Angle Through Hole	Gold	On-On-On	2	Process Sealed	PC Pin

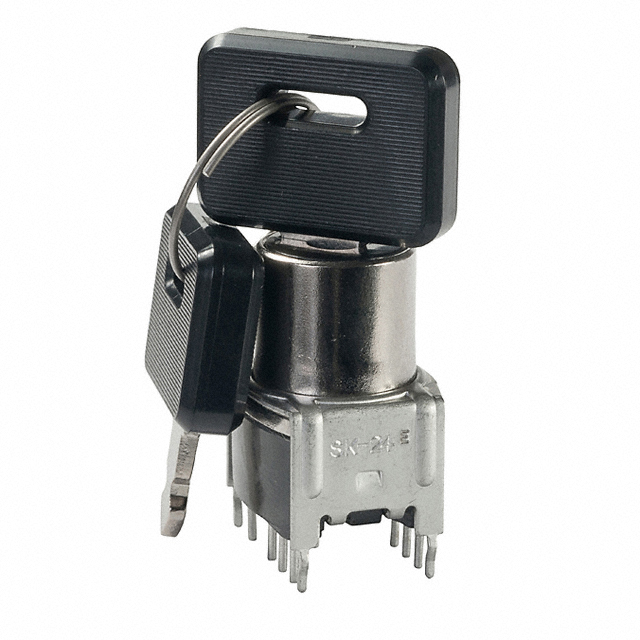

NKK Switches SK24EG13	30000 Steps	10000 Cycles	45 °	DP3T	Non-Shorting (BBM)	0.4 VA	Beryllium Copper	28 V	-25 °C	70 °C	28 V	Flat Key	Through Hole	Gold	On-On-On	2	Process Sealed	PC Pin
