306-012 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 24POS 0.156
| Part | Material - Insulation | Termination Rows | Mounting Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Termination | Read Out | Card Type | Contact Finish | Number of Positions/Bay/Row | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Pitch | Pitch | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Cantilever | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Dual | Non Specified - Dual Edge | Gold | 12 | 2 | -40 C | 105 ░C | 24 | 3.96 mm | 0.156 in | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Green | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Panel Mount Through Hole | Cantilever | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Dual | Non Specified - Dual Edge | Gold | 12 | 2 | -40 C | 105 ░C | 24 | 3.96 mm | 0.156 in | Female | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Green | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Cantilever | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Dual | Non Specified - Dual Edge | Gold | 12 | 2 | -40 C | 105 ░C | 24 | 3.96 mm | 0.156 in | Female | Green | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Panel Mount Through Hole | Cantilever | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Dual | Non Specified - Dual Edge | Gold | 12 | 2 | -40 C | 105 ░C | 24 | 3.96 mm | 0.156 in | Female | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Green | |

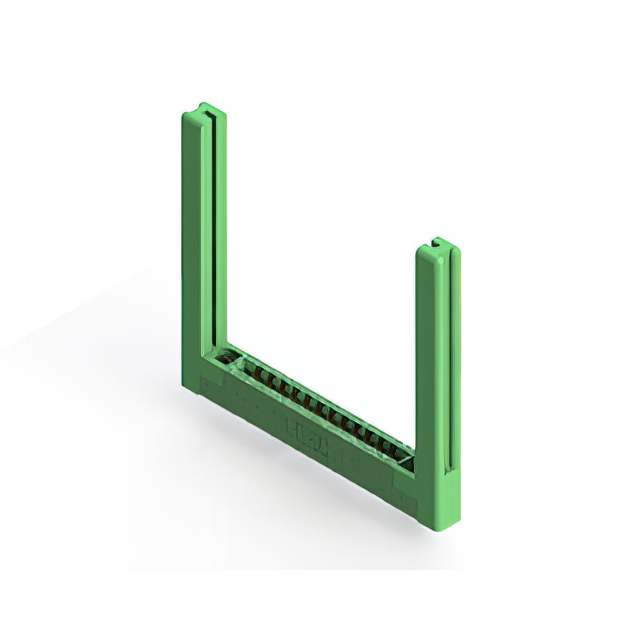

 EDAC Inc. | Polyester Thermoplastic | 1 | Panel Mount | Cantilever | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Dual | Non Specified - Dual Edge | Gold | 12 | 2 | -40 C | 105 ░C | 24 | 3.96 mm | 0.156 in | Female | 4-40 Flush Mount Threaded Insert Top Opening | Green | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Panel Mount Through Hole | Cantilever | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Dual | Non Specified - Dual Edge | Gold | 12 | 2 | -40 C | 105 ░C | 24 | 3.96 mm | 0.156 in | Female | 4-40 Flush Mount Threaded Insert Top Opening | Green | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Cantilever | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Dual | Non Specified - Dual Edge | Gold | 12 | 2 | -40 C | 105 ░C | 24 | 3.96 mm | 0.156 in | Female | Green | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Panel Mount Through Hole | Cantilever | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Dual | Non Specified - Dual Edge | Gold | 12 | 2 | -40 C | 105 ░C | 24 | 3.96 mm | 0.156 in | Female | 4-40 Flush Mount Threaded Insert Top Opening | Green | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Panel Mount | Cantilever | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Dual | Non Specified - Dual Edge | Tin | 12 | 2 | -40 C | 105 ░C | 24 | 3.96 mm | 0.156 in | Female | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Green | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Panel Mount Through Hole | Cantilever | 0.25 Ám | 10 Áin | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Dual | Non Specified - Dual Edge | Gold | 12 | 2 | -40 C | 105 ░C | 24 | 3.96 mm | 0.156 in | Female | 4-40 Flush Mount Threaded Insert Top Opening | Green | Card Guides |
