CHS-02T Series

Catalog

DIP SW, 2CKT, SPST, 0.1A, 6VDC, SMD ROHS COMPLIANT: YES

Part	Electrical Life	Length	Length	Body Material	Mounting Type	Circuit	Pitch	Pitch	Pitch	Termination Style	Height Above Board [z]	Height Above Board [z]	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Actuator Type	Contact Material	Current Rating (Amps)	Actuator Level	Voltage Rating	Features
Nidec Components Corporation CHS-02TA1	2000 Steps	4.1 mm	0.161 in	Polyphenylene Sulfide (PPS)	Surface Mount	SPST	0.05 "	1.27 mm	Half	J Lead	0.098 in	2.5 mm	Gold	85 °C	-40 C	2	Slide (Standard)	Copper Alloy	100 mA	Flush Recessed	6 V

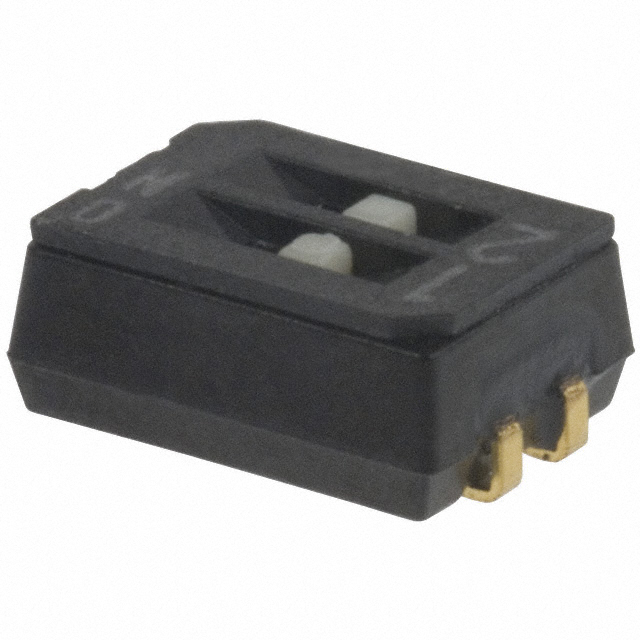

Nidec Components Corporation CHS-02TA	2000 Steps	4.1 mm	0.161 in	Polyphenylene Sulfide (PPS)	Surface Mount	SPST	0.05 "	1.27 mm	Half	J Lead	0.098 in	2.5 mm	Gold	85 °C	-40 C	2	Slide (Standard)	Copper Alloy	100 mA	Flush Recessed	6 V	Tape Seal
Nidec Components Corporation CHS-02TB1	2000 Steps	4.1 mm	0.161 in	Polyphenylene Sulfide (PPS)	Surface Mount	SPST	0.05 "	1.27 mm	Half	Gull Wing	0.098 in	2.5 mm	Gold	85 °C	-40 C	2	Slide (Standard)	Copper Alloy	100 mA	Flush Recessed	6 V

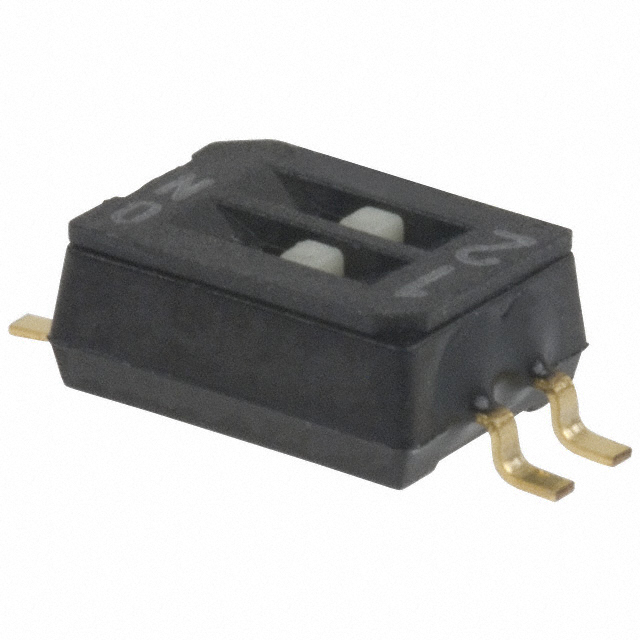

Nidec Components Corporation CHS-02TB	2000 Steps	4.1 mm	0.161 in	Polyphenylene Sulfide (PPS)	Surface Mount	SPST	0.05 "	1.27 mm	Half	Gull Wing	0.098 in	2.5 mm	Gold	85 °C	-40 C	2	Slide (Standard)	Copper Alloy	100 mA	Flush Recessed	6 V	Tape Seal
