ETMA1202083 Series
Manufacturer: CUI Inc.
Beta
⌘K

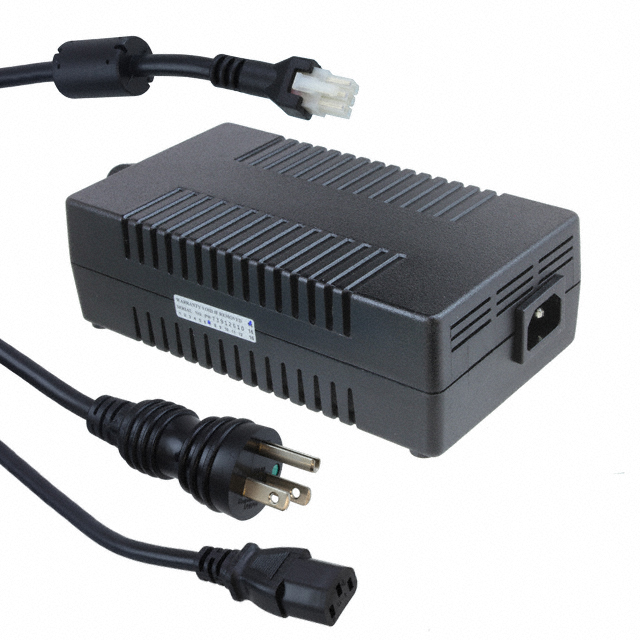

AC/DC DESKTOP ADAPTER 12V 250W
| Part | Current - Output (Max) [Max] | Standard Number | Region Utilized | Power (Watts) | Applications | No Load Power Consumption | Input Type | Approval Agency | Cord Length | Cord Length | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Efficiency | Weight | Weight | Input Connector | Form | Operating Temperature [Max] | Operating Temperature [Min] | Output Connector | Output Connector | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 20.83 A | 60601-1 | North America | 250 W | Medical | 500 mW | Cord | TUV UL | 31.5 in | 0.8 m | 60 mm | 7.42 in | 104.5 mm | 4.11 in | 188.5 mm | 2.36 in | Level V | 1.1 kg | 2.4 lbs | IEC 320-C14 | Desktop (Class I) | 50 °C | 0 °C | Rectangular | 6 Position | 12 V | 264 VAC | 90 VAC |
