2012-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

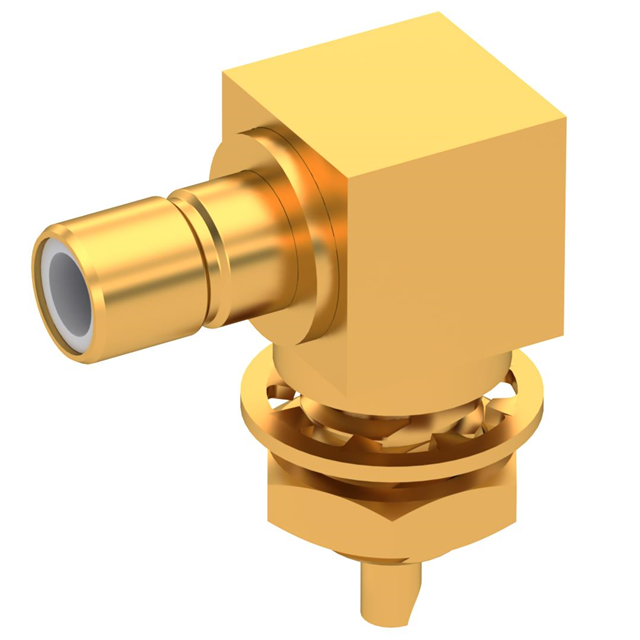

SMB / RIGHT ANGLE JACK RECEPTACL
| Part | Dielectric Material | Center Contact Plating | Body Finish | Insertion Loss | Body Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Shield Termination | Connector Type | Fastening Type | Center Contact Material | Mounting Type | Number of Ports | Housing Color | Mounting Feature | Connector Style | Frequency - Max [Max] | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Gold | 0.6 dB | Brass | 500 | -65 ░C | 165 °C | Solder Cup | Solder | Jack Male Pin | Snap-On | Brass | Panel Mount Right Angle | 1 | Gold | Bulkhead - Rear Side Nut | SMB | 4 GHz | 50 Ohms |
